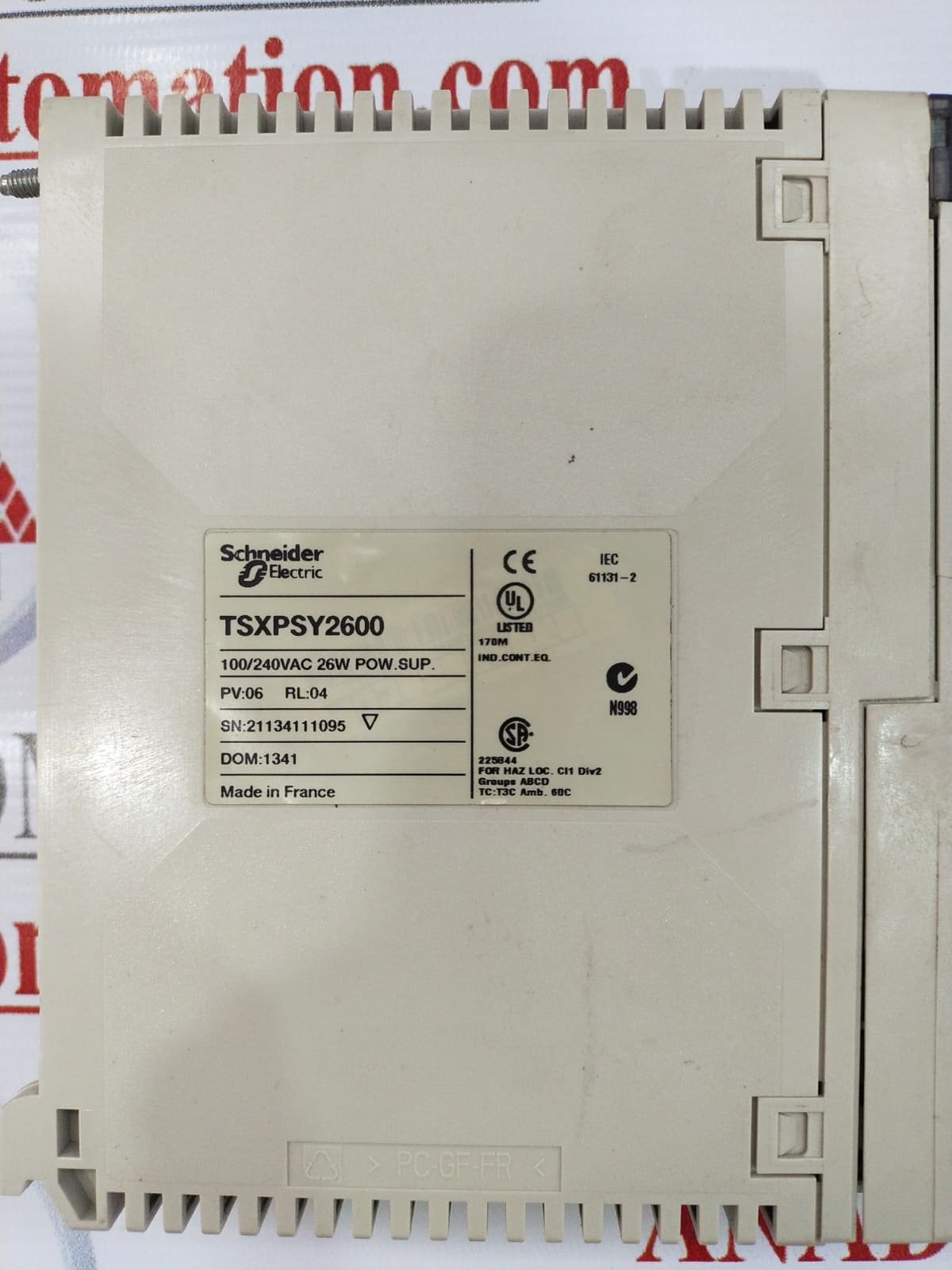

SCHNEIDER ELECTRIC TSXPSY2600 POWER SUPPLY

Modicon Premium Automation Platform - Power Supply Module

The Power Supply Module from the Modicon Premium Automation Platform is a robust and efficient component designed to provide reliable power distribution for industrial automation systems. Here are the detailed specifications:

Product Details:

• Product Type: Power Supply Module

  • Specifies the module type, indicating its function as a power supply module.

• Primary Voltage: 100-240 V AC (85-264 V)

  • Describes the acceptable primary voltage range, allowing for a wide input voltage range of 100 to 240 volts AC, with an extended limit from 85 to 264 volts.

• Network Frequency: 50/60 Hz

  • Indicates the standard network frequency, supporting both 50 and 60 Hertz.

• Network Frequency Limits: 47-63 Hz

  • Specifies the acceptable limits for the network frequency, set between 47 and 63 Hertz.

• Input Current: 300 mA (240 V), 500 mA (100 V)

  • Provides the input current requirements, indicating values of 300 milliamps at 240 volts and 500 milliamps at 100 volts.

• Inrush Current: 37 A (100 V), 75 A (240 V)

  • Describes the inrush current upon activation, with values of 37 amperes at 100 volts and 75 amperes at 240 volts.

• I²t on Activation: 0.63 A².s (100 V), 2.6 A².s (240 V)

  • Specifies the I²t (current-squared-time) upon activation, with values of 0.63 A².s at 100 volts and 2.6 A².s at 240 volts.

• It on Activation: 0.034 A.s (100 V), 0.067 A.s (240 V)

  • Indicates the current-time product upon activation, with values of 0.034 A.s at 100 volts and 0.067 A.s at 240 volts.

• Protection Type: Internal fuse 4 A 5 x 20 mm time-delayed primary circuit

  • Specifies the protection mechanism, utilizing an internal fuse rated at 4 amperes with a time-delayed characteristic for the primary circuit.

• Overload Protection (Secondary Circuit): Yes

  • Confirms the presence of overload protection in the secondary circuit.

• Overvoltage Protection (Secondary Circuit): Yes

  • Confirms the presence of overvoltage protection in the secondary circuit.

• Short-Circuit Protection (Secondary Circuit): Yes

  • Confirms the presence of short-circuit protection in the secondary circuit.

• Total Useful Secondary Power: 26 W

  • Provides the total useful power available in the secondary circuit, set at 26 watts.

• Secondary Power: 15 W (24 V DC), 25 W (5 V DC)

  • Breaks down the secondary power distribution, indicating 15 watts for 24 volts DC and 25 watts for 5 volts DC.

Environmental Specifications:

• Immunity to Microbreaks: 10 ms

  • Indicates immunity to microbreaks, with a capability to withstand interruptions as short as 10 milliseconds.

• Dielectric Strength:

  • 2000 V primary/earth
    • Specifies the dielectric strength between the primary and earth, indicating it can withstand 2000 volts.
  • 2000 V primary/secondary
    • Specifies the dielectric strength between the primary and secondary, indicating it can withstand 2000 volts.

• Product Certifications: RMRS, BV, RINA, GL, ABS, DNV, LR

  • Lists various product certifications from classification societies such as RMRS, BV, RINA, GL, ABS, DNV, and LR, signifying compliance with industry standards.

• Ambient Air Temperature:

  • Operating: 0…60 °C
    • Indicates the operating temperature range, set between 0 and 60 degrees Celsius.
  • Storage: -25…70 °C
    • Specifies the storage temperature range, set between -25 and 70 degrees Celsius.

• Relative Humidity:

  • Operating: 10…95% without condensation
    • States the relative humidity range during operation, set between 10% and 95% without condensation.
  • Storage: 5…95% without condensation
    • Specifies the relative humidity range during storage, set between 5% and 95% without condensation.

• Operating Altitude: 0-2000 m

  • Indicates the acceptable operating altitude range, extending from sea level (0 meters) to 2000 meters.

• Protective Treatment: TC

  • Specifies that the product has undergone protective treatment with the indication "TC," ensuring durability and resistance to environmental factors.

• IP Degree of Protection: IP20

  • Indicates the Ingress Protection (IP) rating, where IP20 suggests protection against solid objects but no protection against water.

• Pollution Degree: 2

  • Defines the pollution degree as 2, indicating a moderate level of contamination tolerance.
