Technical specifications for

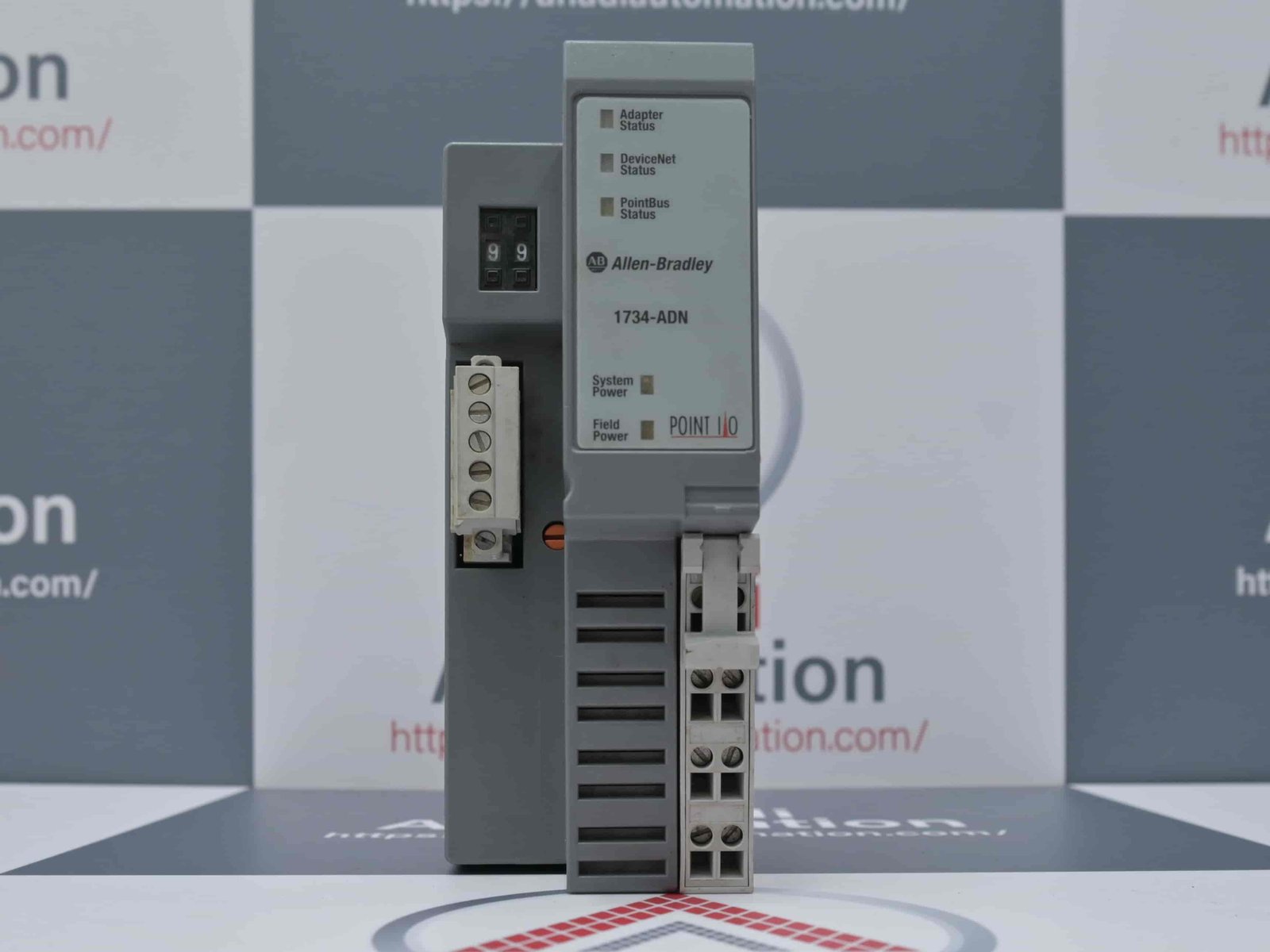

1734-ADN
Brand: Allen-Bradley, representing quality and reliability.
Part Number/Catalog No.: 1734-ADN, a high-performance DeviceNet Adapter Module.
Series: POINT I/O, a versatile series known for its flexibility in industrial applications.
Module Type: DeviceNet Adapter Module, designed for seamless integration into industrial networks.
Input Voltage: Operates at 23 Volts DC, providing a stable power source.
Field Side Power: Requires 400 milliamps for efficient field-side power.
Inrush Current: Handles inrush currents of up to 6 Amps, ensuring robust performance during power-up.
Power Consumption: Maintains low power consumption at 8.1 Watts, contributing to energy efficiency.
POINTBus Current: Draws 1000 milliamps from the POINTBus for efficient communication.
Power Dissipation: Efficiently dissipates 2.8 Watts at 28.8 Volts, minimizing heat generation.
I/O Module Capacity: Supports up to 63 modules, providing scalability and customization options.
Powered Modules: Can accommodate a maximum of 63 powered modules for extensive connectivity.
I/O Points: Offers a maximum of 504 I/O points, catering to diverse industrial automation needs.
DeviceNet Communication Rate: Supports communication rates of 125K, 250K, or 500K bits/second for flexible network configurations.
Location: Designed for the left side within the 1734 System, allowing for organized and streamlined integration.
