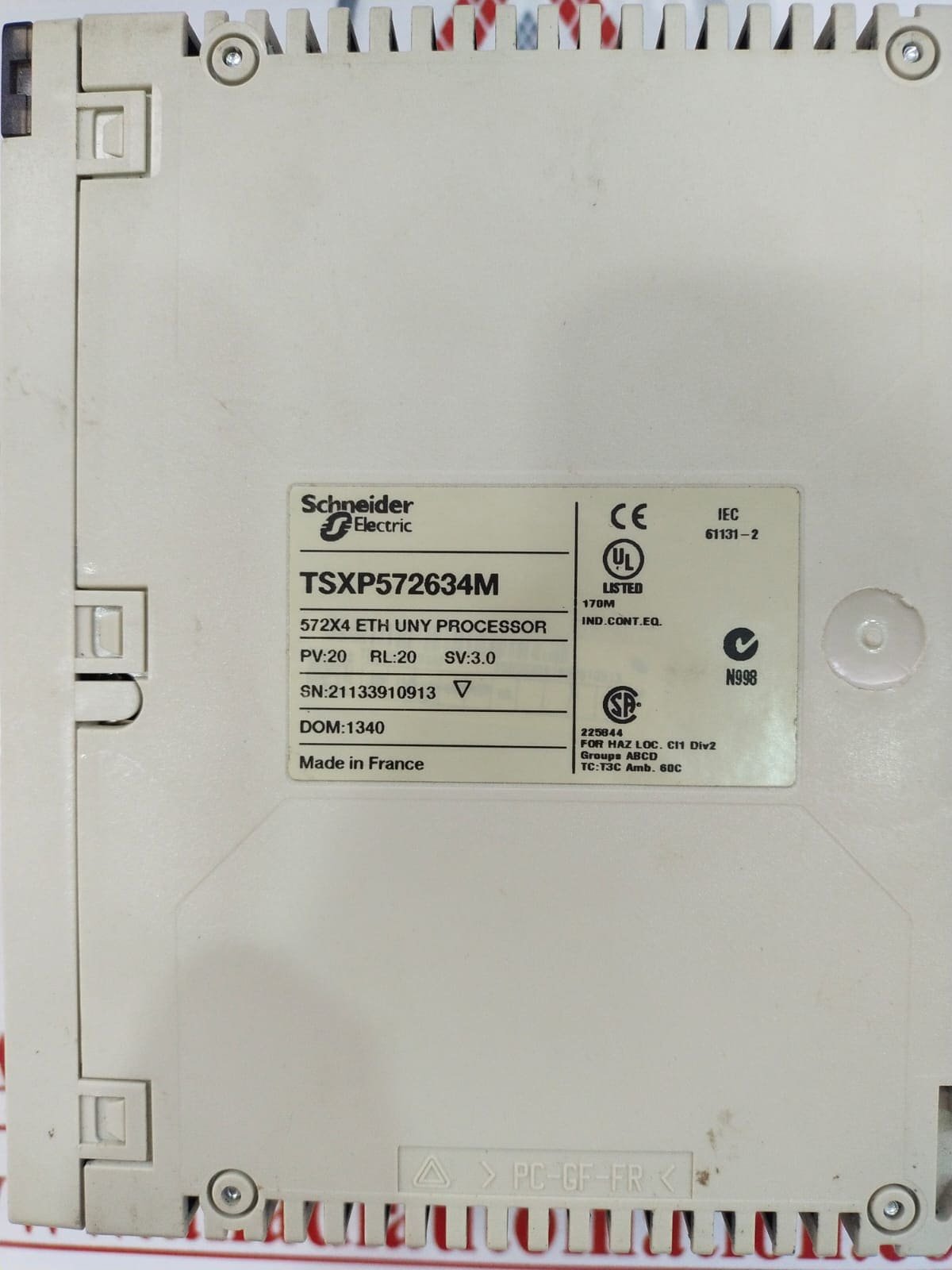

SCHNEIDER ELECTRIC TSXP572634M Unity Processor

Range of product: The Modicon Premium Automation platform offers a comprehensive range of automation solutions designed to meet diverse industrial needs with high performance and reliability.

Product or component type: This specific component is the Unity processor, a key element within the Modicon Premium Automation platform.

Software designation: The software designated for use with this platform is Unity Pro, a powerful programming and configuration tool tailored for industrial automation tasks.

Complementary: The Unity processor integrates seamlessly with other components within the Modicon Premium Automation platform, offering a cohesive and efficient automation solution.

Concept: The concept behind the Unity processor is to provide advanced control and processing capabilities, facilitating streamlined operations and enhanced efficiency in industrial settings.

Transparent Ready: This feature ensures compatibility and interoperability with other systems and devices, allowing for seamless integration and communication within complex automation environments.

Number of racks: The Unity processor supports various rack configurations, including 16 racks with 4, 6, or 8 slots, and 8 racks with 12 slots each, providing flexibility to accommodate different application requirements.

Number of slots: With a maximum capacity of 128 slots for the 16-rack configuration and 96 slots for the 8-rack configuration, the Unity processor offers ample space for installing various modules and expansion cards.

Discrete I/O processor capacity: The Unity processor boasts an impressive capacity of up to 1024 discrete I/O points, enabling precise control and monitoring of digital signals within industrial systems.

Analogue I/O processor capacity: For analogue signals, the Unity processor supports up to 80 I/O points, allowing for accurate measurement and control of continuous variables in industrial processes.

Number of application specific channels: With 24 application-specific channels, the Unity processor caters to specialized functions and tasks required in specific industrial applications, ensuring optimal performance and versatility.

Number of process control channels: The Unity processor supports between 10 and 30 simple loops for process control, providing the flexibility to handle various control strategies and algorithms based on specific application needs.

Integrated connection type: Featuring integrated connection options, including non-isolated serial links with two female mini-DIN connectors (RS485) at 19.2 kbit/s, as well as Ethernet TCP/IP connectivity via RJ45 connectors, the Unity processor offers versatile communication capabilities.

Port Ethernet: Equipped with a 10BASE-T/100BASE-TX Ethernet port, the Unity processor facilitates high-speed network communication, enabling seamless integration with Ethernet-based industrial networks.

Communication module processor capacity: With support for up to 4 communication modules, the Unity processor enables efficient data exchange and communication with various devices and systems within the industrial environment.

Memory description: The Unity processor features internal RAM, with options for expansion via PCMCIA cards. With a capacity of 160 kB for data storage (with PCMCIA card), 768 kB for program storage (with PCMCIA card), and 160 kB for program and data storage (without PCMCIA card), the Unity processor offers ample memory resources for storing program logic, data, and configuration information. Additionally, the inclusion of a PCMCIA card slot provides an additional 16384 kB of data storage capacity, further enhancing the memory capabilities of the Unity processor.

Application structure: The application structure of the Unity processor comprises 64 event tasks, 1 master task, and 1 fast task, providing a robust framework for managing various automation tasks and processes with precision and efficiency.

Current consumption: The Unity processor has a current consumption of 1650 mA at 5 V DC, ensuring efficient power usage while maintaining reliable operation in industrial environments.

Module format: The module format of the Unity processor is double, allowing for easy integration and installation within the automation system, while maximizing space utilization and compatibility with standard mounting configurations.

Net weight: With a net weight of 0.042 kg, the Unity processor is lightweight and compact, making it suitable for installation in various industrial settings without adding significant bulk or weight to the overall system.
