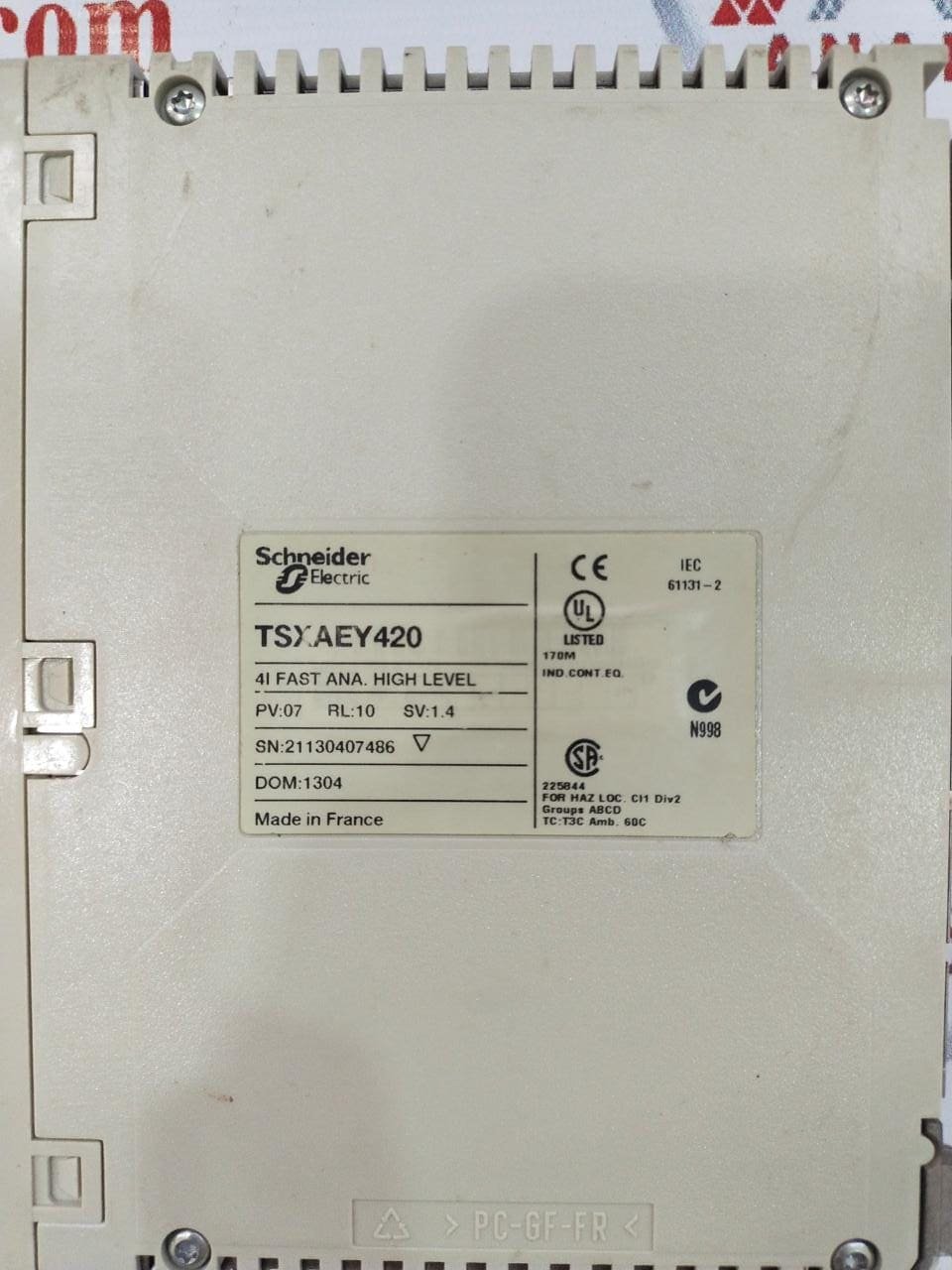

SCHNEIDER ELECTRIC TSXAEY420 Analog Input Module

Range of Product: The Modicon Premium Automation platform is a comprehensive and versatile automation solution designed for a wide range of industrial applications.

Product or Component Type: The Analog Input Module is a crucial component within the Modicon Premium Automation platform, responsible for processing high-level analog signals.

Input Level: The input level for this module is set to high, allowing it to handle signals effectively within its operational range.

Analog Input Number: The module is equipped with four analog input channels, providing flexibility and scalability for diverse input requirements.

Isolation:

• Between Channels and Bus: The module ensures a robust isolation of 1000 Vrms between channels and the bus.
• Between Channels and Ground: Similar isolation of 1000 Vrms is maintained between channels and ground.
• Between Channels Common Point: Common mode isolation is effectively implemented between channels, ensuring reliable performance.

Input Overvoltage Protection: The module incorporates protective measures against overvoltage conditions, offering:

• -15…15 V protection at state 0 (250 Ohm)
• -30…30 V protection at state 1 (250 Ohm)

Electrical Connection: The module features a secure electrical connection through a single SUB-D 25 connector, facilitating ease of installation and maintenance.

Overcurrent: To safeguard against overcurrent scenarios, the module is designed to handle -30…30 mA at state 1 (250 kOhm), ensuring stability during operation.

Marking: The CE marking signifies compliance with European safety standards, indicating that the module meets essential health and safety requirements.

Current Consumption: With a current consumption of 500 mA at 5 V DC, the module demonstrates energy efficiency in its operation.

Module Format: Designed in a standard format, the module follows industry conventions, ensuring compatibility and ease of integration.

Net Weight: Weighing at 0.73 lb(US) (0.33 kg), the module is lightweight, contributing to overall system efficiency and ease of handling.

Environment:

• Standards (IEC 1131): The module adheres to the IEC 1131 standards, ensuring compatibility and interoperability with other automation components.
• Product Certifications: BV, LR, ABS, RINA, RMRS, GL, DNV certifications provide assurance of product quality and reliability.
• Ambient Air Temperature for Operation: The module operates effectively within the temperature range of 32…140 °F (0…60 °C), ensuring reliable performance in various industrial environments.
• Ambient Air Temperature for Storage: With a storage temperature range of -13…158 °F (-25…70 °C), the module can be stored safely when not in use.
• Relative Humidity: The module is designed to operate in diverse humidity conditions, ranging from 10% to 95% without condensation for operation and 5% to 95% without condensation for storage.
• Operating Altitude: Capable of operating within altitudes ranging from 0 to 6561.68 ft (0 to 2000 m), the module offers flexibility for deployment in different settings.
• Protective Treatment: The module features protective treatment (TC), enhancing its durability and resistance to environmental factors.
• IP Degree of Protection: With an IP20 degree of protection, the module is safeguarded against solid objects and provides reliable performance in industrial settings.
• Pollution Degree: Rated at Pollution Degree 2, the module is suitable for environments with low to moderate pollution levels.
