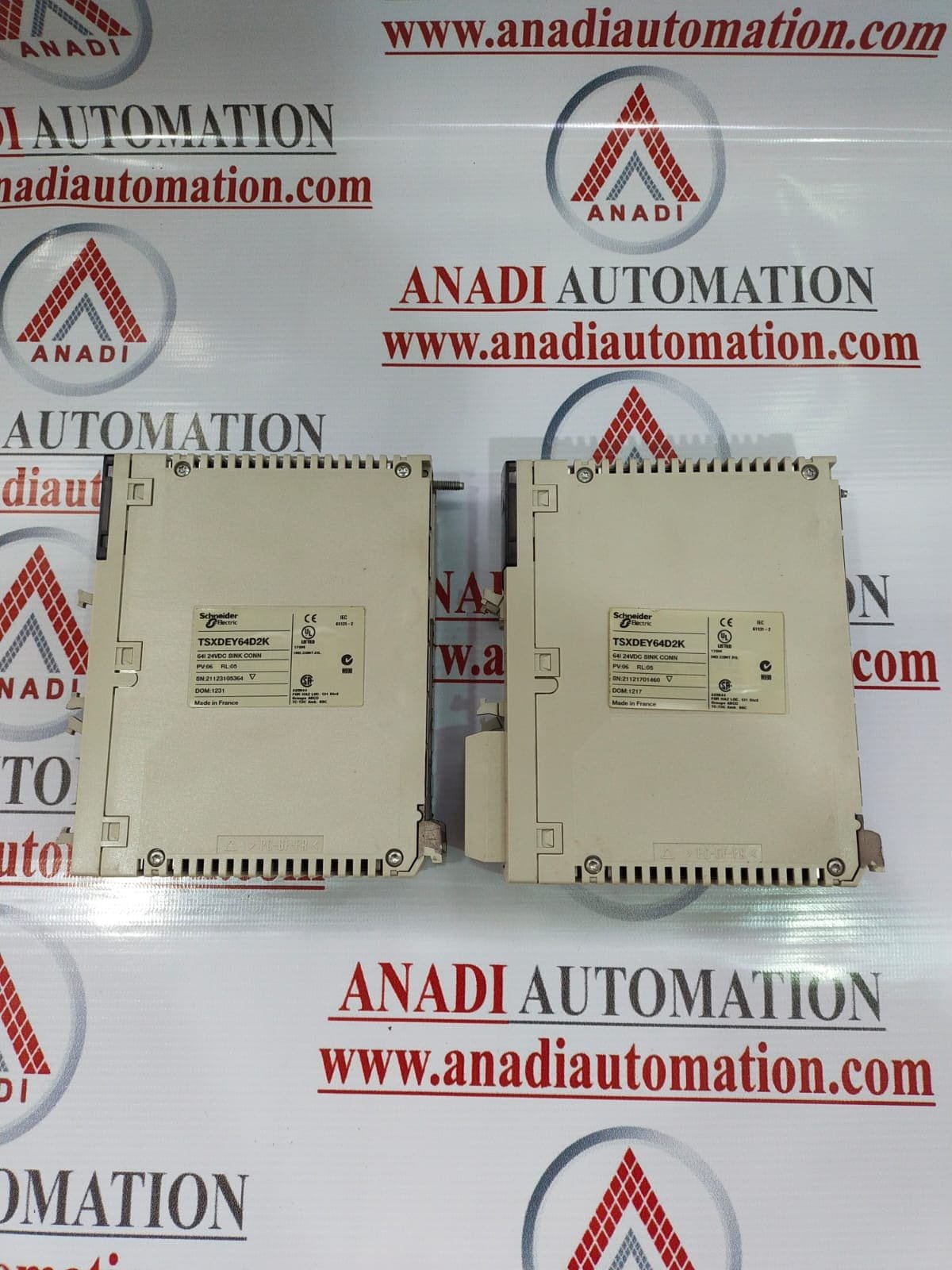

SCHNEIDER ELECTRIC TSXDEY64D2K INPUT MODULE

Modicon Premium Automation Platform - Discrete Input Module

The Discrete Input Module from the Modicon Premium Automation Platform is designed to provide reliable and efficient performance in industrial automation applications. Here are the detailed specifications:

Product Details:

• Product Type: Discrete Input Module

  • Specifies the module type, indicating its function as a discrete input module.

• Discrete Input Number: 64 current sink isolated (conforming to EN/IEC 61131-2 type 1)

  • Describes the module's capacity, providing 64 current sink isolated input channels conforming to EN/IEC 61131-2 type 1.

• Discrete Input Voltage: 24 V DC positive

  • States the voltage requirement for discrete input signals, set at 24 volts DC with a positive logic configuration.

• Sensor Power Supply: 19-30 V

  • Indicates the sensor power supply range, allowing for an input voltage between 19 and 30 volts.

• Discrete Input Current: 3.5 mA

  • Specifies the current requirement for discrete input signals, set at 3.5 milliamps.

Complementary Features:

• Voltage State 1 Guaranteed: ≥ 11 V

  • Ensures that the voltage in state 1 is guaranteed to be equal to or greater than 11 volts.

• Current State 1 Guaranteed: ≥ 3 mA

  • Ensures that the current in state 1 is guaranteed to be equal to or greater than 3 milliamps.

• Voltage State 0 Guaranteed: ≤ 5 V

  • Ensures that the voltage in state 0 is guaranteed to be equal to or less than 5 volts.

• Current State 0 Guaranteed: ≤ 1.5 mA

  • Ensures that the current in state 0 is guaranteed to be equal to or less than 1.5 milliamps.

• Input Impedance: 6300 Ohm at state 1

  • Specifies the input impedance at state 1, set at 6300 ohms.

• Response Time: 4 ms (≤ 7 ms)

  • Indicates the response time of the module, with a guaranteed maximum of 4 milliseconds and an actual performance of equal to or less than 7 milliseconds.

• Isolation Resistance: < 10 MOhm 500 V DC

  • Specifies the isolation resistance, indicating that it is less than 10 megaohms at 500 volts DC.

• Power Dissipation: (1.5 W + 0.1 W x No of channels used)

  • Defines the power dissipation formula, accounting for both a base power of 1.5 watts and an additional 0.1 watts per channel used.

• Electrical Connection: HE-10 Connector

  • Specifies the electrical connection type, utilizing an HE-10 connector.

• Marking: CE

  • Indicates that the product bears the CE marking, signifying compliance with European Union regulations.

• Current Consumption: 155 mA at 5 V DC, 315 mA at 24 V DC

  • Specifies the current consumption of the module, with values of 155 milliamps at 5 volts DC and 315 milliamps at 24 volts DC.

• Module Format: Standard

  • Describes the module format, indicating a standard configuration.

• Net Weight: 0.37 kg

  • Provides the net weight of the module, set at 0.37 kilograms.

Environmental Specifications:

• Dielectric Strength: 1500 V AC at 50/60 Hz

  • Specifies the dielectric strength, indicating that the product can withstand 1500 volts AC at 50/60 Hz.

• Product Certifications: LR, BV, RMRS, RINA, ABS, GL, DNV

  • Lists various product certifications from classification societies such as LR, BV, RMRS, RINA, ABS, GL, DNV, signifying compliance with industry standards.

• Ambient Air Temperature:

  • Operating: 0…60 °C
    • Indicates the operating temperature range, set between 0 and 60 degrees Celsius.
  • Storage: -25…70 °C
    • Specifies the storage temperature range, set between -25 and 70 degrees Celsius.

• Relative Humidity:

  • Operating: 10…95% without condensation
    • States the relative humidity range during operation, set between 10% and 95% without condensation.
  • Storage: 5…95% without condensation
    • Specifies the relative humidity range during storage, set between 5% and 95% without condensation.

• Operating Altitude: 0-2000 m

  • Indicates the acceptable operating altitude range, extending from sea level (0 meters) to 2000 meters.

• Protective Treatment: TC

  • Specifies that the product has undergone protective treatment with the indication "TC," ensuring durability and resistance to environmental factors.

• IP Degree of Protection: IP20

  • Indicates the Ingress Protection (IP) rating, where IP20 suggests protection against solid objects but no protection against water.

• Pollution Degree: 2

  • Defines the pollution degree as 2, indicating a moderate level of contamination tolerance.
