Technical specifications for
GTO2310

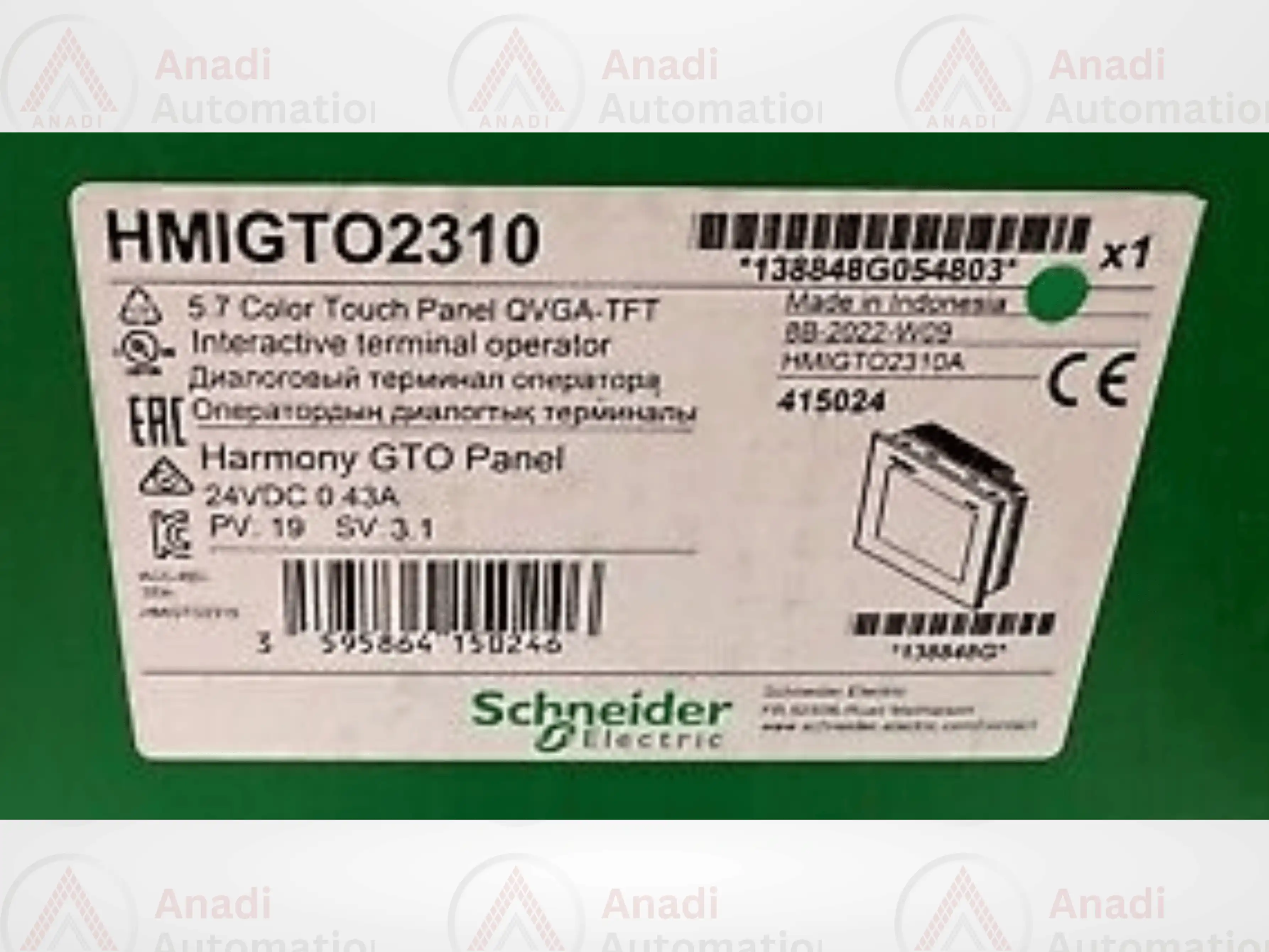

GTO2310 Schneider Electric Touchscreen Panel
The GTO2310 is a feature-rich, advanced touchscreen panel from the Harmony GTO series, designed to deliver high-performance human-machine interface (HMI) capabilities in a compact and durable form factor. It features a 5.7-inch backlit colour TFT LCD display capable of producing 65,536 vibrant colours, ensuring clear and precise visuals for operators in industrial environments. With a QVGA resolution of 320 x 240 pixels, the display ensures sharp readability for critical control and monitoring tasks.
Built with a resistive film touch panel that supports up to 1,000,000 touch cycles, the touch-sensitive area boasts a resolution of 1024 x 1024, providing responsive and accurate interaction. The backlight lifespan is rated at 50,000 hours (white, at 25°C), ensuring long-term reliability and minimal maintenance.
This panel is powered by an external source and runs on the robust Harmony operating system. It is designed for flush mounting with a 4-screw clamp fixing system, making it easy to integrate into control panels. The construction features PPT front and enclosure material, offering excellent durability in industrial settings. Cooling is handled through natural convection, eliminating the need for additional cooling mechanisms.
The dimensions of the panel are 169.5 mm wide, 137 mm high, and 59.5 mm deep, with a net weight of just 0.8 kg, making it a compact yet powerful addition to any automation system.
