Technical specifications for
ATV320U15N4C

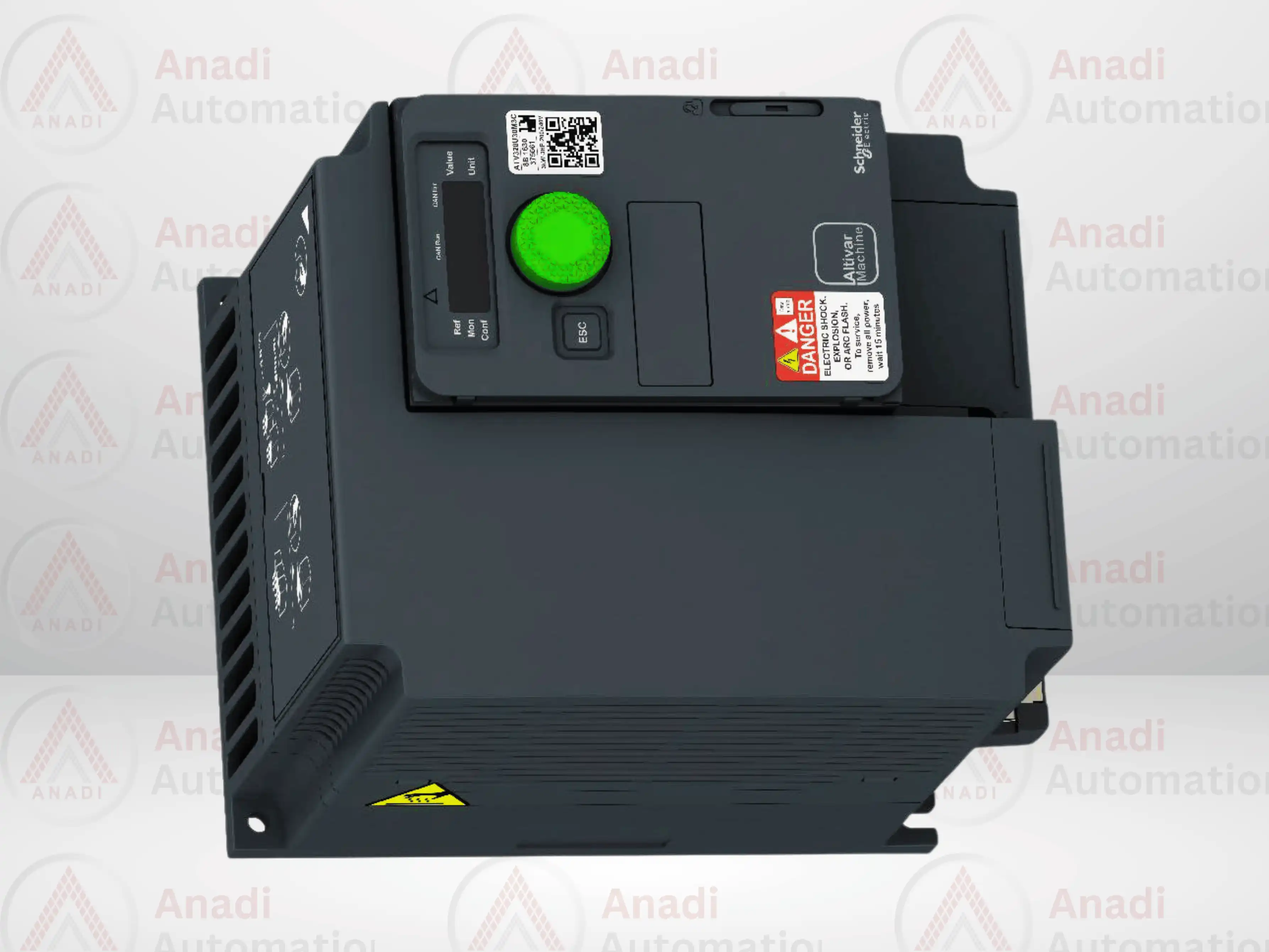

ATV320U15N4C SCHNEIDER ELECTRIC Variable Speed Drive
The ATV320U15N4C is a reliable variable speed drive from Schneider Electric’s Altivar Machine ATV320 series, designed to control asynchronous motors efficiently. It delivers a motor power of 1.5 kW (2 HP) and operates on a 3-phase input voltage range of 380 to 500 V AC at 50/60 Hz. The drive provides a heavy-duty output current of 4.1 A, with a maximum input current of 6.4 A and an apparent power rating of 4.2 kVA at 500 V.
Equipped with an integrated Class C2 EMC filter, this drive ensures reduced electromagnetic interference for sensitive industrial environments. It features an IP20 enclosure rating for protection against solid objects, while its compact dimensions (105 mm width x 142 mm height x 158 mm depth) and lightweight design (approximately 1.3 kg) allow easy installation.
The drive supports an operating temperature range from -10°C to 50°C without derating, and up to 60°C with derating, making it adaptable to various conditions. It can withstand storage temperatures from -25°C to 70°C and operates safely in environments with relative humidity per Class 3K5 according to EN 60721-3.
Designed for vertical wall mounting with a ±10° tilt, the ATV320U15N4C uses forced convection cooling with an airflow volume of 18.0 m³/h. It delivers a maximum output frequency of 599 Hz with a nominal switching frequency of 4 kHz, ensuring precise and smooth motor control for a wide range of industrial applications.
