Technical specifications for
TSXAEY800

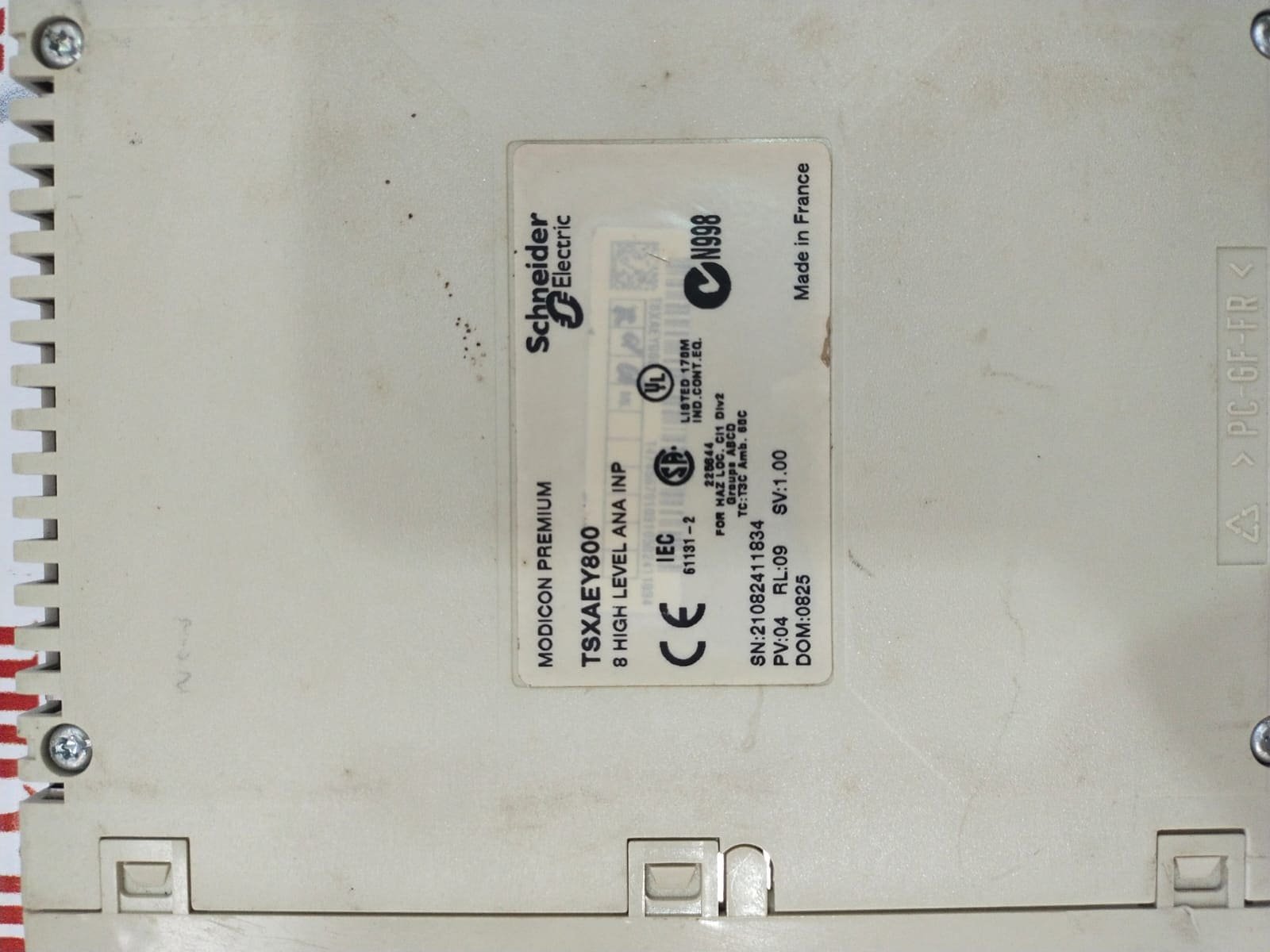

This is a Modicon Premium analog input module with 8 high level inputs with a common point, 12 bits of conversion, and 270mA of current at 5VDC
Modicon Premium Automation Platform - Analog Input Module
The Modicon Premium Automation Platform offers a robust Analog Input Module designed for high-level precision and flexibility in industrial automation processes. Below are detailed specifications for this module:
Product Type: Analog Input Module
- Identifies the module as an analog input module, indicating its function within a control system.
Input Level: High Level
- Specifies that the module is designed to handle high-level analog signals.
Analog Input Number: 8
- Indicates the number of analog input channels available on the module, in this case, 8 channels.
Analog Input Types:
- Indicates the supported current input range from 0 to 20 milliamps.
- Current:
- Specifies another supported current input range from 4 to 20 milliamps.
- Voltage:
- Specifies a bipolar voltage input range from -10 to +10 volts.
- Voltage:
- Specifies a unipolar voltage input range from 0 to 10 volts.
- Voltage:
- Specifies another unipolar voltage input range from 0 to 5 volts.
- Voltage:
- Specifies yet another unipolar voltage input range from 1 to 5 volts.
Analog/Digital Conversion:
- Indicates the resolution of the analog-to-digital converter (ADC) used in the module, in this case, 12 bits.
- Electrical:
- Electrical Connection:
- Indicates that the module is electrically connected using a SUB-D 25-pin connector, specifying the type and number of pins for the connection.
- Overcurrent Protection:
- Specifies the overcurrent protection feature, indicating a range of -30 to 30 milliamps at state 1 with a load impedance of 250 kilohms.
- Current Consumption:
- Indicates the current consumption of the module when operating at 5 volts DC.
- Module Format:
- Describes the module format as standard, suggesting compatibility with typical industry standards.
- Net Weight:
- Specifies the net weight of the module, which is 0.31 kilograms.
- Environmental Specifications:
- Standards:
- Specifies compliance with the IEC 1131 standard, indicating adherence to internationally recognized guidelines for programmable controllers.
- Product Certifications:
- Lists various certifications from classification societies such as DNV, RINA, GL, BV, LR, RMRS, ABS, indicating the product's suitability for marine and offshore applications.
- Ambient Air Temperature:
- Operating:
- Indicates the temperature range within which the product can safely operate, from 0 to 60 degrees Celsius.
- Storage:
- Specifies the temperature range for storage, which is between -25 and 70 degrees Celsius.
- Operating:
- Relative Humidity:
- Operating:
- Specifies the acceptable range of relative humidity during operation, which is from 10% to 95% without condensation.
- Storage:
- Indicates the permissible range of relative humidity during storage, which is from 5% to 95% without condensation.
- Operating:
- Operating Altitude:
- Describes the acceptable altitude range for normal operation, which is from sea level (0 meters) up to 2000 meters.
- Protective Treatment:
- Specifies that the product has undergone protective treatment with the indication "TC," ensuring durability and resistance to environmental factors.
- IP Degree of Protection:
- Indicates the Ingress Protection (IP) rating, where IP20 suggests protection against solid objects but no protection against water.
- Pollution Degree:
- Defines the pollution degree as 2, indicating a moderate level of contamination tolerance.
- Standards:
