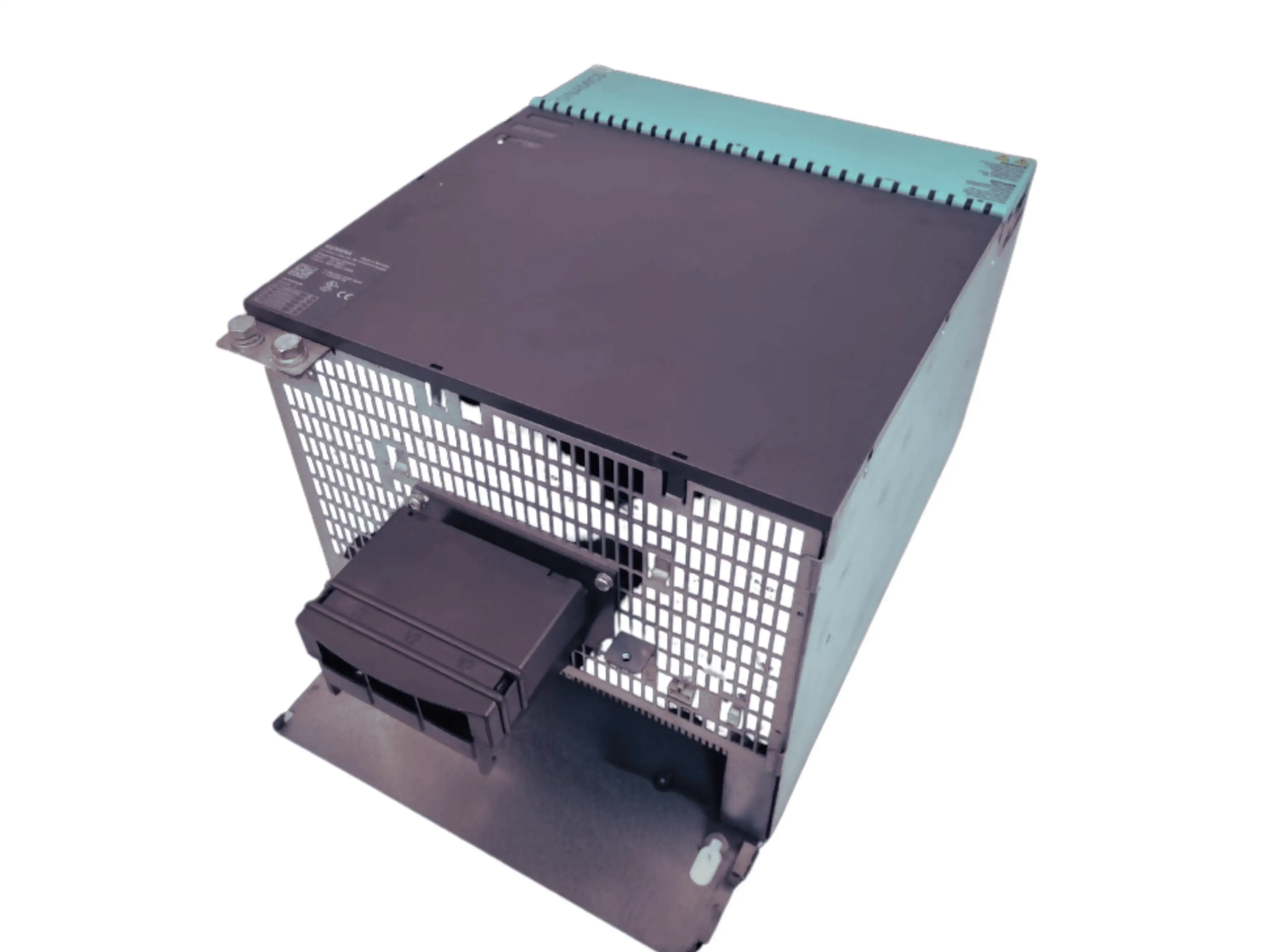

SIEMENS 6SL3120-1TE32-0AA4 Single Motor Module

Siemens 6SL31201TE320AA4 – Detailed Technical Specifications

The Siemens 6SL3120-1TE32-0AA4 is a SINAMICS S120 Single Motor Module designed for high-performance drive applications. It is part of Siemens’ SINAMICS S120 modular drive system, which provides flexibility, efficiency, and advanced motor control capabilities for industrial automation.

The 6SL3120-1TE32-0AA4 is a SINAMICS S120 Single Motor Module from Siemens, engineered to deliver reliable and high-performance motor control in industrial automation environments. Designed and manufactured in Germany, this module is part of Siemens’ trusted SINAMICS S120 series, well-regarded for its advanced drive technology and flexibility in multi-axis and high-performance applications. Each unit is supplied as a single piece, offering robust power handling capabilities for heavy-duty operations.

Electrically, the module is built to handle demanding requirements, operating with an input of DC 600V and delivering a 3-phase AC output at 400V. It provides 200A output current during standard operation, while supporting 140A when operating at an 8 kHz switching frequency, balancing performance with energy efficiency. The integration of an optimized pulse pattern ensures the module delivers precise and smooth motor control, making it ideal for applications requiring high dynamic response and low motor noise.

Mechanically, the 6SL3120-1TE32-0AA4 features a Booksize frame, allowing for compact installation and efficient use of panel space, especially beneficial in dense cabinet layouts. The internal air cooling system eliminates the need for external cooling devices, simplifying the setup and reducing overall maintenance. The net weight of the module is 21.6 kg, and it is packaged with care in a format that facilitates safe transportation and storage, measuring 629 mm wide, 300 mm high, and 270 mm deep.

Whether you're upgrading existing systems or integrating into a new build, this SINAMICS S120 module combines Siemens’ renowned engineering with compact form factor and strong performance characteristics.

4. Functional Features & Benefits

✅ High-Performance Drive Control: Advanced pulse pattern for smooth motor operation
✅ Supports Extended Safety Integrated Functions: Ensures safe and reliable operation in industrial environments
✅ Includes DRIVE-CLiQ Cable: Allows seamless integration with other Siemens SINAMICS components
✅ Compact & Modular Design: Booksize format enables easy installation in tight spaces
✅ Optimized for Industrial Automation: Ideal for high-power drive applications

5. Applications

The 6SL31201TE320AA4 Single Motor Module is designed for:
Machine Tool Applications – CNC machinery, milling, and lathes
Conveyor Systems – High-speed & high-torque applications
Packaging Machines – Precise speed & torque control
Printing Machines – High-resolution motion control
Automated Manufacturing Systems – Robotic integration & motion control

---

6. Summary

The Siemens SINAMICS 6SL3120 1TE32 0AA4 S120 Single Motor Module is a high-efficiency drive solution for industrial applications. With its optimized pulse pattern, robust design, and extended safety functions, it ensures precision, reliability, and seamless integration with Siemens automation systems.
