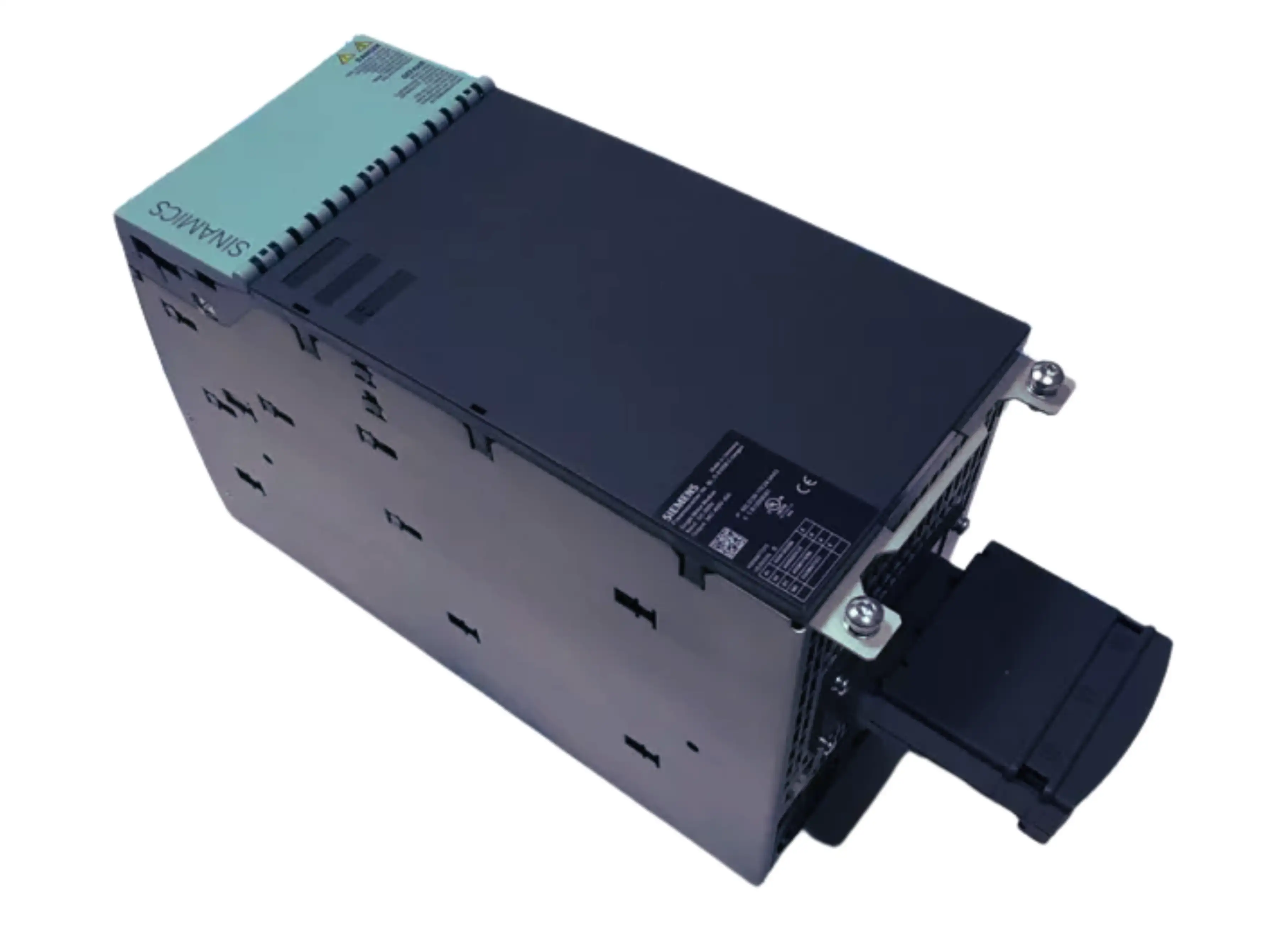

SIEMENS 6SL3120-1TE24-5AA3 Single Motor Module

Siemens 6SL3120-1TE24-5AA3 – SINAMICS S120 Single Motor Module

The Siemens 6SL3120-1TE24-5AA3 is a SINAMICS S120 Single Motor Module, designed for high-precision motor control in industrial automation. It is a spare part module that provides efficient and reliable drive solutions for various high-performance applications.

The 6SL3120-1TE24-5AA3 is a Single Motor Module from the SINAMICS S120 series by Siemens, offered as a spare part for high-performance drive systems. Designed and manufactured in Germany, this compact unit is engineered for reliability and high-speed automation tasks across a wide range of industrial applications.

This module operates with an input voltage of 600V DC and delivers a 3-phase AC output at 400V with a rated output current of 45A. Its optimized pulse patterns enhance motor performance, ensuring smoother operation, improved energy efficiency, and precise motion control in demanding environments.

Mechanically, the 6SL3120-1TE24-5AA3 features a Booksize construction, making it a smart choice for installations with space constraints. The integrated internal air cooling system provides effective heat dissipation without the need for external fans, simplifying system design and reducing maintenance overhead. The unit has a net weight of 9.4 kg, making it both compact and easy to handle during integration or replacement.

Whether used in high-speed machining, robotics, or other automation systems, this SINAMICS S120 spare module offers the trusted Siemens quality that industrial professionals depend on.

4. Functional Features & Benefits

✅ High-Performance Drive Control: Ensures smooth motor operation and precise speed control
✅ Supports Extended Safety Integrated Functions: Enhances system reliability and operator safety
✅ DRIVE-CLiQ Interface Included: Ensures seamless communication with Siemens SINAMICS systems
✅ Compact & Modular Design: Booksize format allows easy installation in tight spaces
✅ Ideal for High-Speed Industrial Applications

5. Applications

The Siemens 6SL3120-1TE24-5AA3 Single Motor Module is suitable for:
CNC Machines – High-precision motor control for milling, lathing, and grinding
Conveyor Systems – Ensures smooth material handling
Printing & Packaging Machines – Optimized motion control for fast and accurate processing
Robotics & Industrial Automation – Supports high-precision motion and safety compliance
Process Industries – Suitable for chemicals, pharmaceuticals, and food processing

6. Summary

The Siemens 6SL3120-1TE24-5AA3 SINAMICS S120 Single Motor Module is an advanced, high-efficiency drive module, designed for demanding industrial applications. With high-performance motor control, optimized pulse patterns, safety features, and seamless integration with Siemens systems, this module is an excellent choice for precision automation.
