PANASONIC MHMJ082P1S SERVO MOTOR

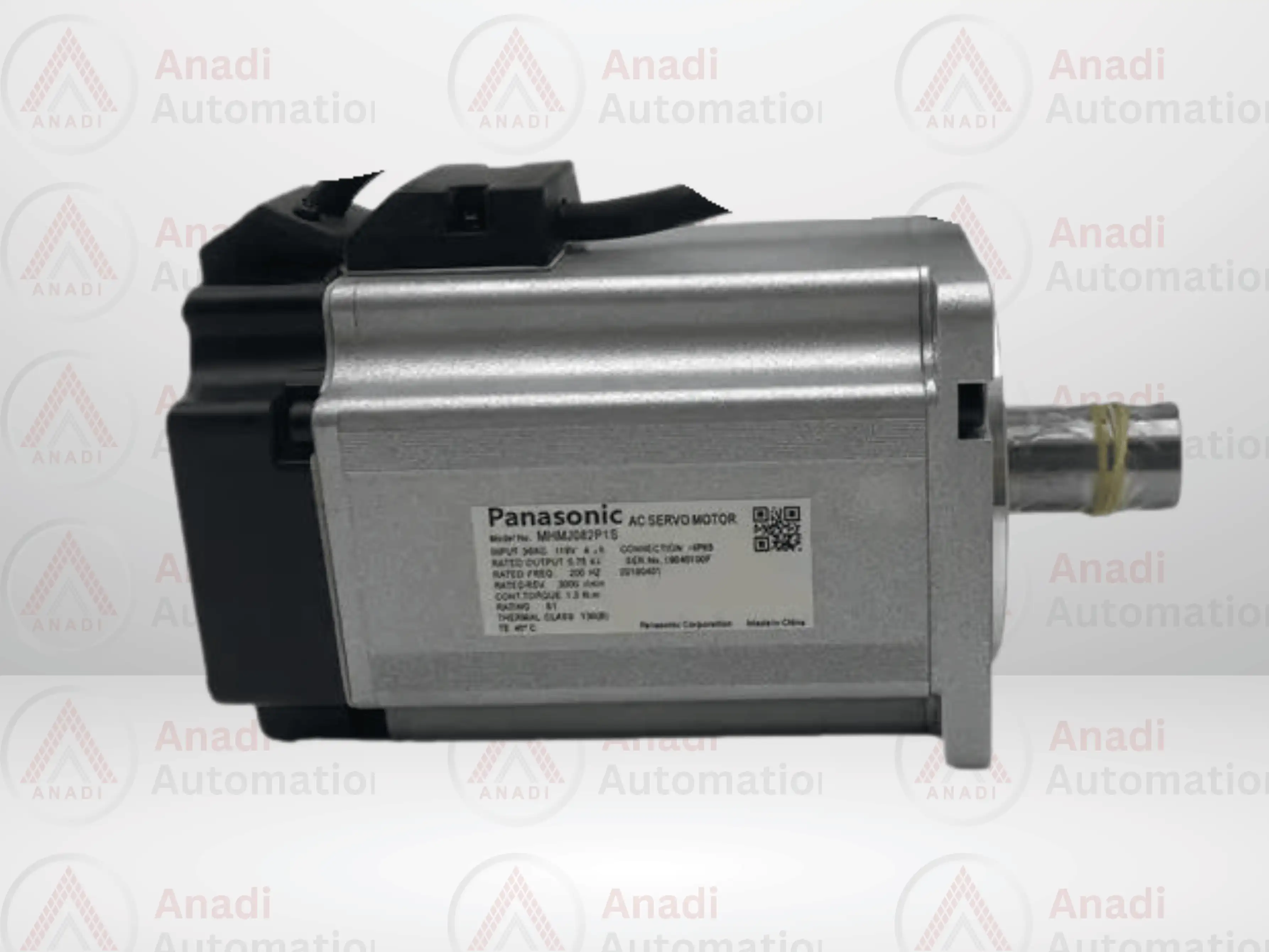

Panasonic MHMJ082P1S AC Servo Motor

The Panasonic MHMJ082P1S is a high-performance AC servo motor engineered for precision, reliability, and durability in industrial automation applications. Designed for continuous operation, it is an ideal choice for demanding environments requiring consistent torque and speed control.

This servo motor operates on a 3-phase AC input voltage of 119 V and delivers a rated output power of 0.75 kW (750W). It runs at a rated frequency of 200 Hz and achieves a rated speed of 3000 rpm, making it well-suited for high-speed automation tasks. With a continuous torque of 2.4 Nm, it provides reliable torque output under continuous loads.

The protection rating is IP65, offering a high level of protection against dust and water, which enhances its performance in harsh environments. It has a thermal class of 130 (B) and a temperature rise class of TE 40°C, ensuring stable operation over extended periods. Built for S1 rated duty (continuous duty), this motor is suitable for applications that require constant operation without interruptions.

Additional identifiers include serial number 12070075N and a manufacture date of 2012-07-01. The unit is made in China, adhering to international quality standards. While the rated current is not explicitly listed, detailed specifications can be found in the product datasheet.

The Panasonic MHMJ082P1S combines precision, endurance, and protection, making it a solid choice for various industrial motion control systems.
