MITSUBISHI FX5-8AD Analog Input Module

Mitsubishi FX5-8AD – MELSEC iQ-F Series Analog Input Module

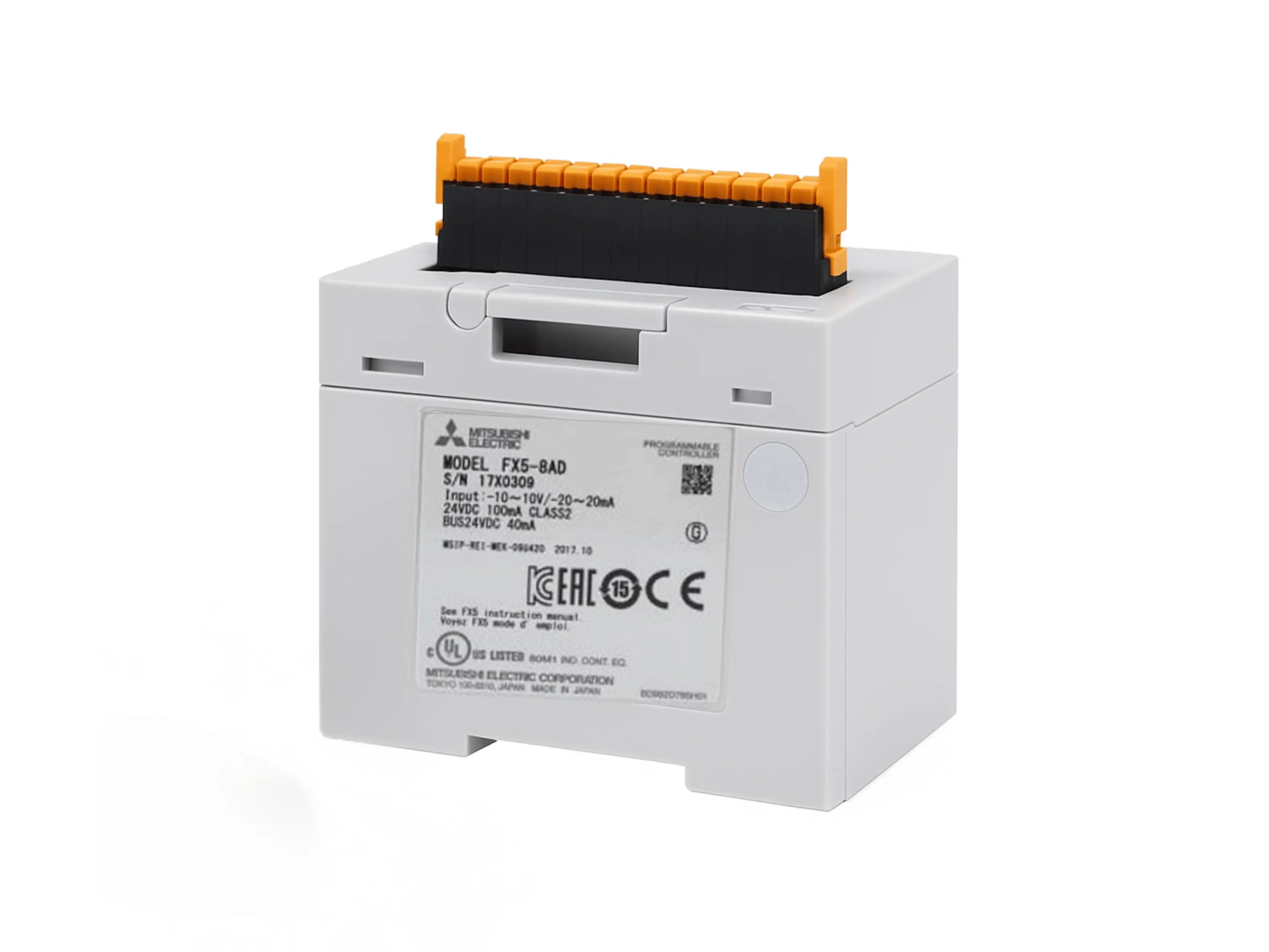

The Mitsubishi FX5-8AD is an analog input module designed for the MELSEC iQ-F series PLCs. It provides 8 integrated analog input channels, making it an ideal choice for precision measurement and process control applications.

The Mitsubishi Electric this module is an advanced Analog Input Module from the MELSEC iQ-F series, designed to deliver high-performance analog signal processing for industrial automation applications. Operating on a 24V DC power supply, this module is specifically engineered for use with DC current types and occupies 8 I/O points on a PLC, ensuring efficient integration within compact systems.

Equipped with eight analog input channels, this module supports a versatile range of input signals. It handles voltage inputs with ranges such as -10V to 10V, 0V to 10V, 0V to 5V, and 1V to 5V, along with current input capabilities ranging from -20mA to 20mA, 0mA to 20mA, and 4mA to 20mA. This flexibility makes it ideal for a wide variety of analog sensors, including thermocouples and RTDs, which are commonly used in temperature monitoring and control systems.

Built to perform reliably in demanding environments, this module operates within a temperature range of -20°C to 55°C, making it suitable for both chilled and heated industrial settings. In terms of form factor, the module is compact yet robust, with dimensions of 50 mm (W) x 90 mm (H) x 83 mm (D) and a weight of just 0.3 kg, which ensures easy installation even in space-constrained control panels.

4. Key Features & Benefits

✅ 8 High-Precision Analog Inputs – Ideal for industrial process control
✅ Supports Multiple Voltage & Current Ranges – Versatile compatibility
✅ Compact & Lightweight Design – Space-efficient for control panels
✅ Wide Operating Temperature Range – Suitable for harsh environments
✅ Seamless Integration with MELSEC iQ-F PLCs

5. Applications

Process Automation – Monitoring temperature, pressure, and flow rates
Industrial Control Systems – Connecting sensors for real-time data processing
Building Management Systems – HVAC and environmental control
Manufacturing Automation – Precision control in assembly lines
