Technical specifications for
630009405

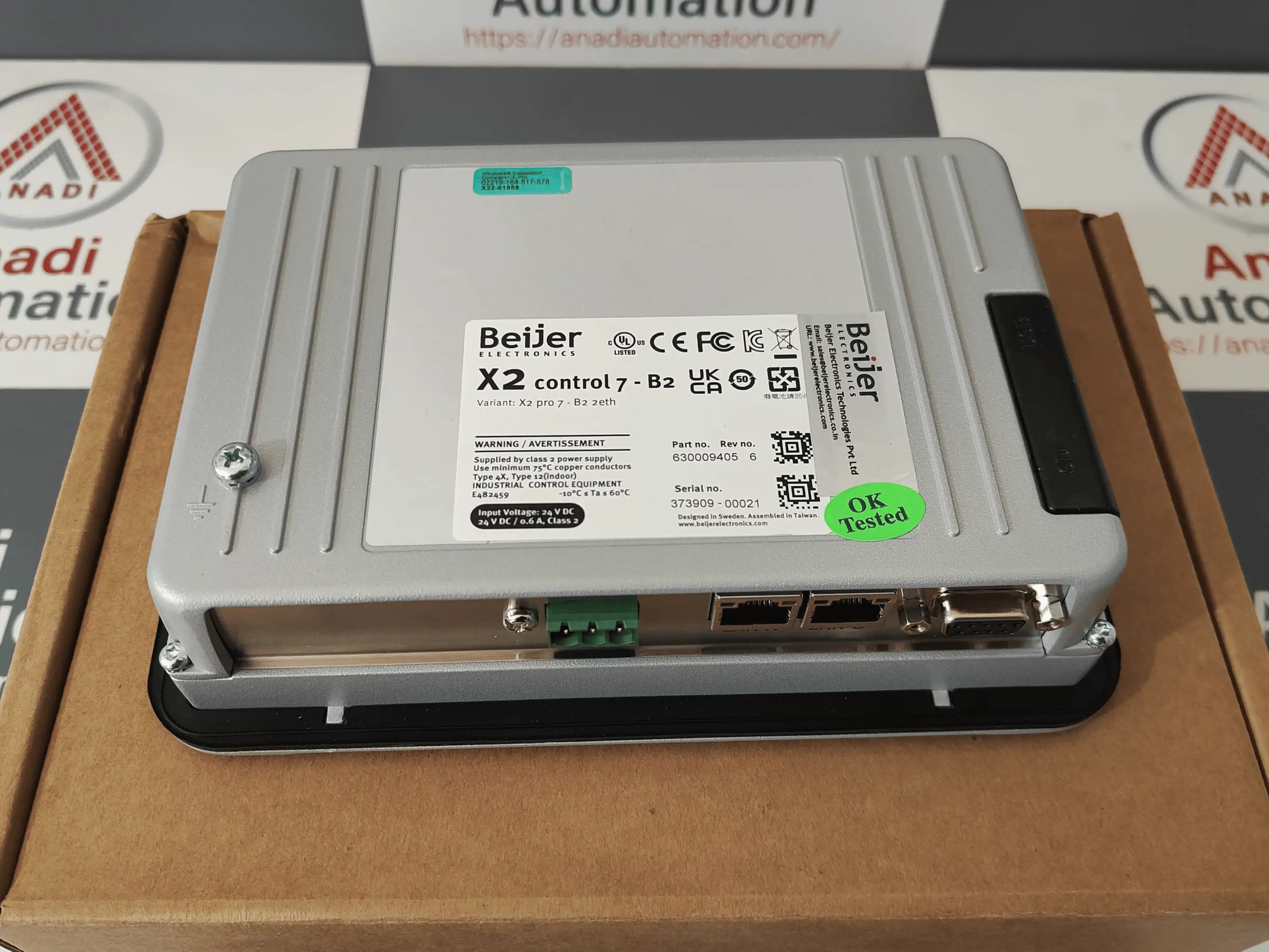

Beijer 630009405 – 7" TFT-LCD HMI Panel with Dual Ethernet & CAN Communication
The Beijer 630009405 is a high-performance Human Machine Interface (HMI) panel designed for modern industrial applications. With its robust construction, versatile communication options, and user-friendly 7-inch resistive touchscreen, this HMI is ideal for machine builders, system integrators, and industrial automation professionals seeking reliable and intuitive operator interfaces.
Equipped with a 7-inch diagonal TFT-LCD display, this panel delivers a resolution of 800x480 pixels, enhanced by LED backlighting with a brightness of 350 cd/m² and a backlight lifetime of 20,000 hours. Its resistive touch technology supports up to 1 million finger touch operations, making it well-suited for environments where operators wear gloves or where precision input is necessary.
Designed for flexibility in installation, the unit supports panel mounting and VESA 75 x 75 configurations, and has a cut-out size of 189 x 128 mm. The HMI housing is constructed from durable gray powder-coated aluminum, providing both rugged protection and a professional appearance. The front panel meets IP65 and NEMA 4X/12 standards, while the back is rated IP20, ensuring dependable protection in a wide range of industrial environments.
The Beijer 630009405 offers strong connectivity options, including two 10/100 Base-T Ethernet ports, one CAN port (0.5 Mbit), one USB 2.0 port, SD/SDHC card support, and a ciX expansion module interface. This robust communication capability ensures seamless integration with PLCs, SCADA systems, and other automation components.
With a maximum power consumption of 14.4W, the HMI operates efficiently, and its internal DC fuse provides added electrical protection. Built to perform in demanding environments, it supports an operating temperature range of -10°C to +60°C and storage from -20°C to +70°C, with resistance to shock (15g) and vibration (1g) in compliance with IEC standards.
The unit carries essential certifications such as CE, FCC, KCC, and is approved for marine use by organizations including KR, LR, ABS, BV, CCS, NK, and DNV GL, making it a top choice for offshore and shipboard systems as well.
With a 1-year warranty by anadi automation, an active life cycle status, and a compact form factor (204 x 143 x 50 mm, 0.8 kg), the Beijer 630009405 is a reliable and powerful HMI solution for a broad range of industrial automation tasks.
