Technical specifications for
2711C-T6C

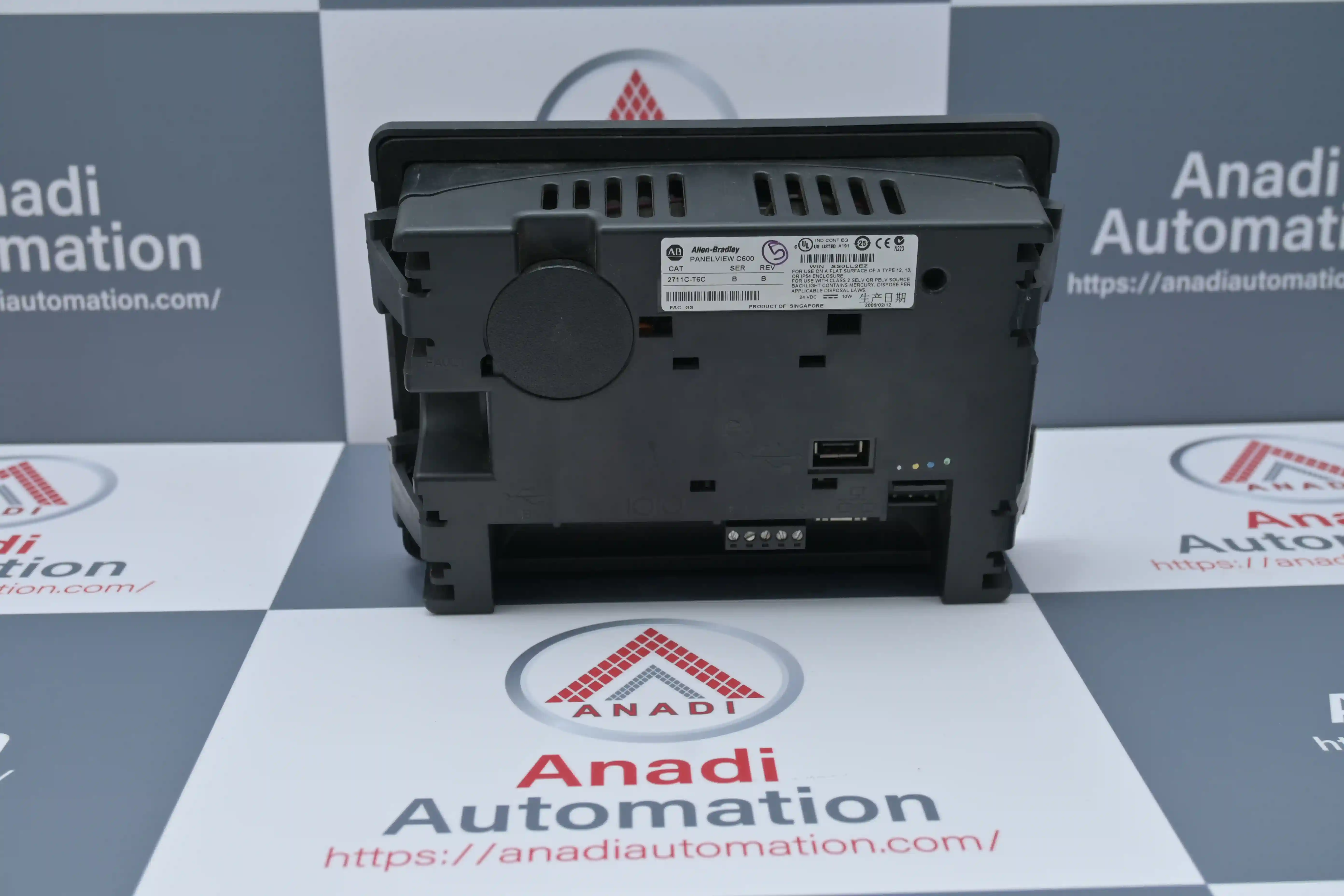

Allen-Bradley 2711C-T6C – PanelView 600 Component Terminal
The Allen-Bradley 2711C-T6C is a PanelView 600 Component HMI terminal, designed for machine-level operator interface applications. It features a 6-inch color touchscreen display and supports multiple communication protocols, making it suitable for various industrial automation environments.
Technical Specifications
✅ Manufacturer: Rockwell Automation
✅ Brand: Allen-Bradley
✅ Part Number: 2711C-T6C
✅ Series: C600
✅ Product Line: PanelView Component Terminal
✅ Product Type: HMI (Human-Machine Interface)
Display & Touchscreen Features
✅ Display Size: 6 inches
✅ Display Type: Color transmissive CSTN passive matrix LCD
✅ Resolution: 320 × 240 pixels (QVGA)
✅ Touchscreen Type: Analog Touch
✅ Touchscreen Actuation Rating: 1 million presses
✅ Backlight Life: 50,000 hours minimum (Non-replaceable)
✅ Display Area: 115 × 86 mm (4.53 × 3.39 in.)
Electrical & Power Specifications
✅ Input Voltage Range: 18–30V DC (24V DC nominal)
✅ Power Consumption: 24V DC
✅ Heat Dissipation: 32 BTU per Hour
Communication & Connectivity
✅ Communication Ports:
-
RS-232 (DH-485, DF1)
-
RS-485 (Supports Modbus & Siemens MPI devices)
-
USB Port (For data transfer and updates)
✅ Compatible Web Browsers:
-
Internet Explorer 7 and 8
-
Firefox 3.0
Mechanical & Installation Features
✅ Weight: 1.5 pounds (approximately 0.68 kg)
✅ Mounting Type: Panel Mount
