Technical specifications for
QY80

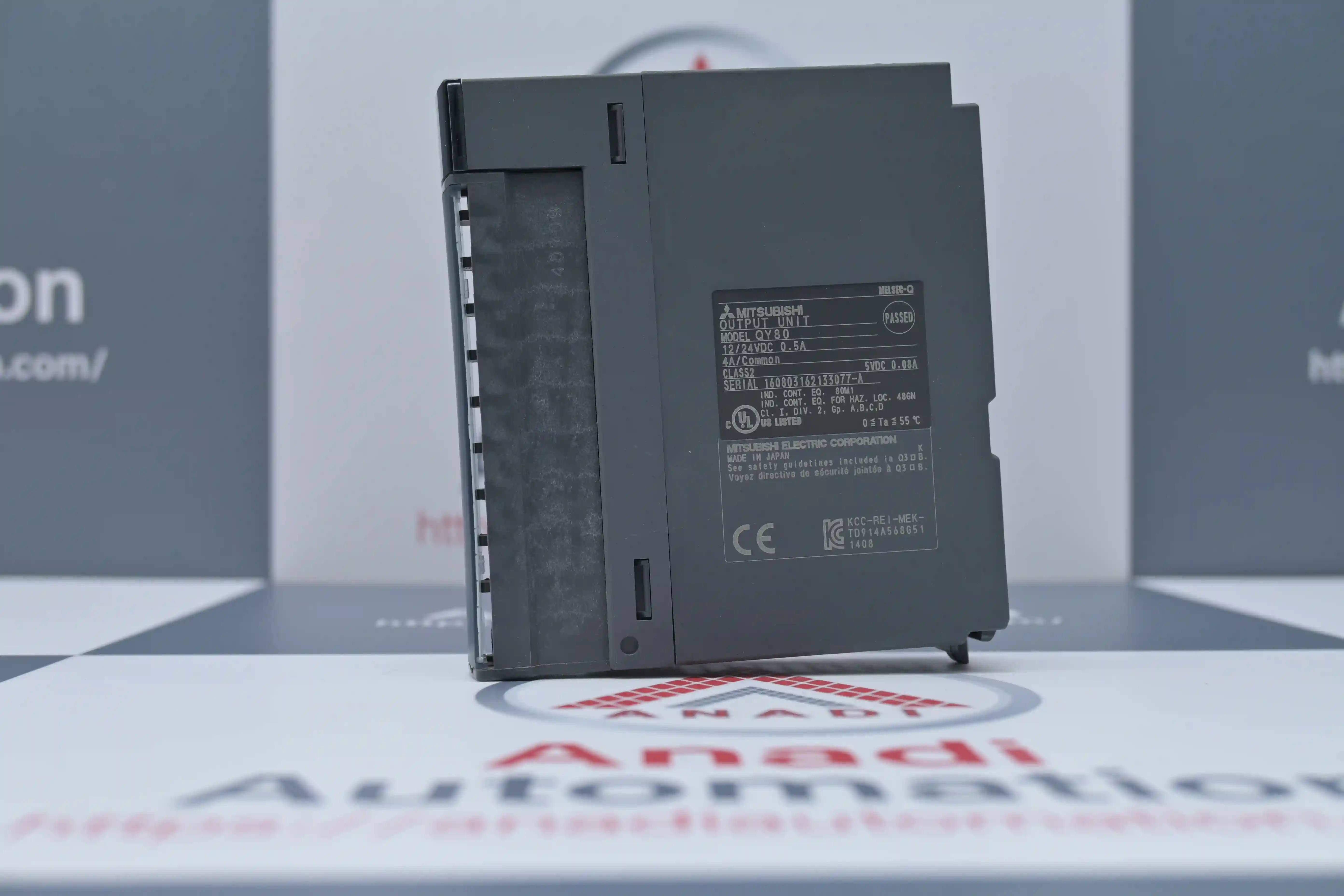

Mitsubishi QY80 – Transistor Output (Source) Module
The Mitsubishi QY80 is a transistor output (source) module designed for the MELSEC-Q Series PLCs, engineered to deliver precise and high-speed output control in industrial automation systems. Ideal for driving solenoids, relays, and other actuators, it provides 16 digital output points and supports a rated load voltage of 12–24 VDC. With source (sinking) logic, this module ensures compatibility with a wide range of field devices requiring DC outputs. Each channel can handle up to 500 mA of load current, and the module is equipped with inrush current protection to manage inductive surges effectively. Its low leakage current of 0.1 mA in the off-state further enhances operational safety and reliability. The module is compact and easy to integrate, measuring 27.4 mm wide, 90 mm deep, and 98 mm high, with a weight of just 0.152 kg. Installation is straightforward with screw-based wiring, and the module draws a modest 0.08 A of internal current, ensuring energy-efficient performance in control systems.
