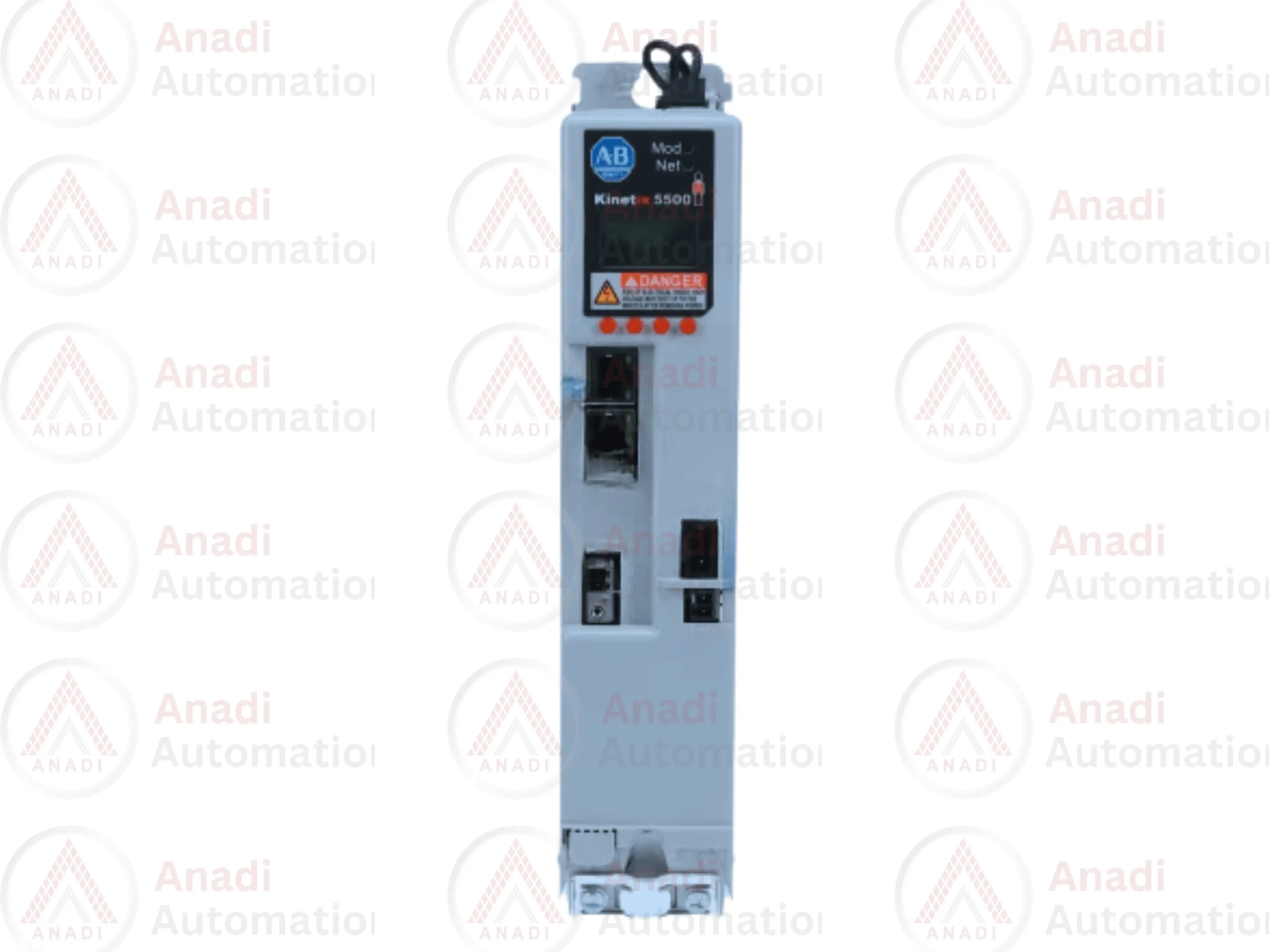

Allen-Bradley 2198-H025-ERS - Kinetix 5500 Servo Drive

Product Overview

The Allen-Bradley 2198-H025-ERS is a servo drive from the Kinetix 5500 series, designed for high-performance motion control applications. It offers EtherNet/IP connectivity, integrated safety, and high efficiency, making it ideal for industrial automation, robotics, and CNC machinery.

Technical Specifications

✔ Manufacturer: Rockwell Automation
✔ Brand: Allen-Bradley
✔ Series: Kinetix 5500
✔ Part Number / Catalog No.: 2198-H025-ERS
✔ Product Type: Servo Drive
✔ Frame Size: Frame Size 2

Electrical Specifications

✔ Input Voltage:

• 195-264V AC (Three-phase, 240V nominal)
• 324-528V AC (Three-phase, 480V nominal)
  ✔ Input Frequency: 47-63 Hz
  ✔ Main AC Input Current:
• 5.20 A @ 240V
• 3.40 A @ 480V

Output Ratings

✔ Continuous Output Power:

• 1.5 kW @ 195-264V AC
• 3.2 kW @ 324-528V AC
  ✔ Continuous Output Current (rms): 7.1 A
  ✔ Continuous Output Current (0-peak): 5.0 A
  ✔ Peak Output Current (rms): 17.7 A
  ✔ Peak Output Current (0-peak): 12.5 A
  ✔ Nominal Drive Voltage: 240/480V (Three-Phase)
  ✔ Peak Output Current: 20 Amperes
  ✔ Short-circuit Current Rating: 200,000 A (rms) symmetrical

Control & Performance

✔ Velocity Loop Bandwidth: 300 Hz
✔ Current Loop Bandwidth: 1000 Hz
✔ Efficiency: 97%

Safety & Protection

✔ Integrated Safety Over Ethernet/IP: Yes
✔ Hardwired Safety: Yes
✔ Internal Shunt Power: 50 W

Key Features & Benefits

✅ EtherNet/IP Connectivity – Seamless integration with Rockwell Automation Logix controllers.
✅ High-Efficiency Operation (97%) – Reduces energy consumption and heat generation.
✅ Compact & Modular Design – Ideal for space-constrained control panels.
✅ Integrated Safety Functions – Supports hardwired safety and Ethernet/IP safety protocols.
✅ Fast Response Time – High bandwidth current & velocity loop for precise motion control.
✅ High Short-Circuit Rating (200kA) – Ensures robust protection in industrial environments.
