Technical specifications for 2098-DSD-075

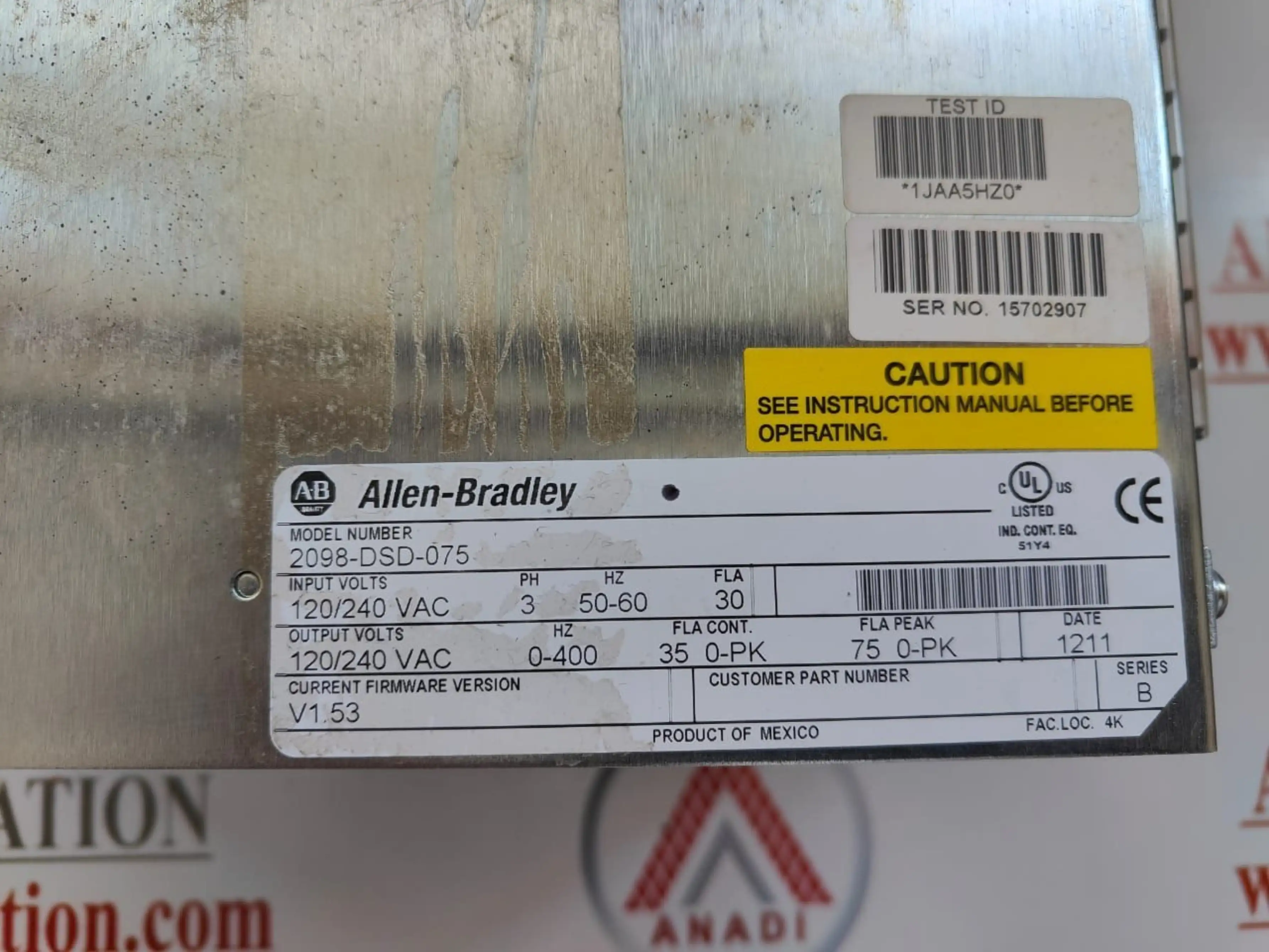

Allen-Bradley 2098-DSD-075-SE – Ultra 3000 Digital Servo Drive
The Allen-Bradley 2098-DSD-075-SE is a high-performance digital servo drive from the Ultra 3000 series, designed for precision motion control applications. It supports SERCOS communication, provides high intermittent and continuous output current, and operates with three-phase AC input voltage.
Technical Specifications
✅ Manufacturer: Rockwell Automation
✅ Brand: Allen-Bradley
✅ Series: Ultra 3000 Drives
✅ Part Number: 2098-DSD-075-SE
✅ Product Type: Digital Servo Drive
✅ Communication Interface: SERCOS (Serial Real-Time Communications System)
Electrical Specifications
✅ Input Voltage (AC): 230-480V AC (Three-Phase, RMS)
✅ Input Frequency (AC): 47-63 Hz
✅ Nominal Input Current (AC): 30 Amps RMS
✅ Bus Capacitance: 4290 µF
✅ Bus Overvoltage: 452V DC
✅ Shunt Activation Voltage: 420V DC
✅ Internal Shunt Resistance: 16.5 Ohms
Output Specifications
✅ Output Current (Continuous): 35 Amps (0-Peak)
✅ Output Current (Intermittent): 75 Amps (0-Peak)
Mechanical & Installation Features
✅ Auxiliary Power Supply: Yes
✅ Dimensions: 14.2 x 9.73 x 5.41 in (360.68 x 247.14 x 138.68 mm)
✅ Mounting Type: Panel Mounting
