Technical specifications for 1769-L33ER

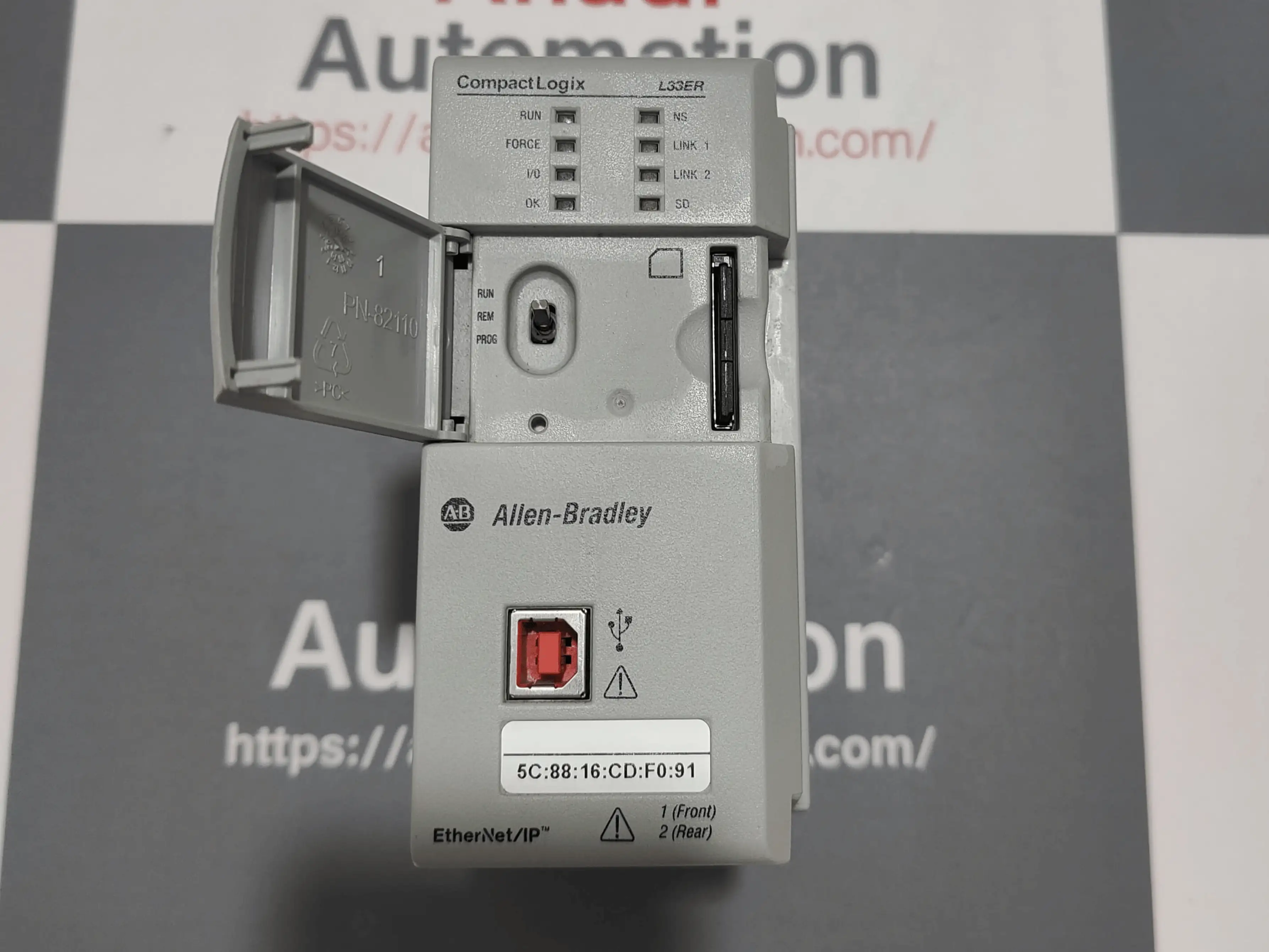

1769-L33ER Allen-Bradley CompactLogix
The allen bradley 1769 l33er is a high-performance Programmable Automation Controller from the CompactLogix 5370 product line, manufactured by Rockwell Automation / Allen-Bradley. Designed to deliver scalable control, the compactlogix l33er is an ideal solution for mid-sized applications requiring a compact yet powerful controller. The ab 1769 l33er features EtherNet/IP communication, with 1 USB and 1 Ethernet port, supporting high-speed data exchange and seamless integration into industrial networks. This plc 1769 l33er comes equipped with 2MB memory, enabling it to support up to 32 I/O modules and 3 I/O banks, offering great flexibility for system expansion.
The 1769l33er supports 32 tasks, with up to 100 programs per task, providing advanced multitasking capability for complex automation projects. The unit includes non-volatile memory with a 1784-SD1 card (1GB) pre-installed, and also supports a 1784-SD2 card (2GB) available separately for extended memory requirements. The compactlogix 1769 l33er supports local expansion of up to 16 modules, making it adaptable for a variety of industrial setups.
Physically, the allen bradley compactlogix 1769 l33er has shipping dimensions of 8 x 8 x 5 inches and a shipping weight of 2 pounds. It supports DIN rail and panel mounting, ensuring easy and secure installation. The recommended wire size is 22 to 14 AWG (solid) and 22 to 16 AWG (stranded), with a copper wire rated at 90°C. It withstands vibration levels of 10 to 500 Hz at 5G, with 0.030 inches peak-to-peak displacement, and operates reliably in temperatures ranging from 0° to +60°C (32° to 140°F).
The 1769-L33ER is certified by c-UL-us, CE, C-Tick, and CI, ensuring compliance with global standards. It uses an internal energy storage system, so no external battery is required, although it is compatible with the 1747-BA battery.
