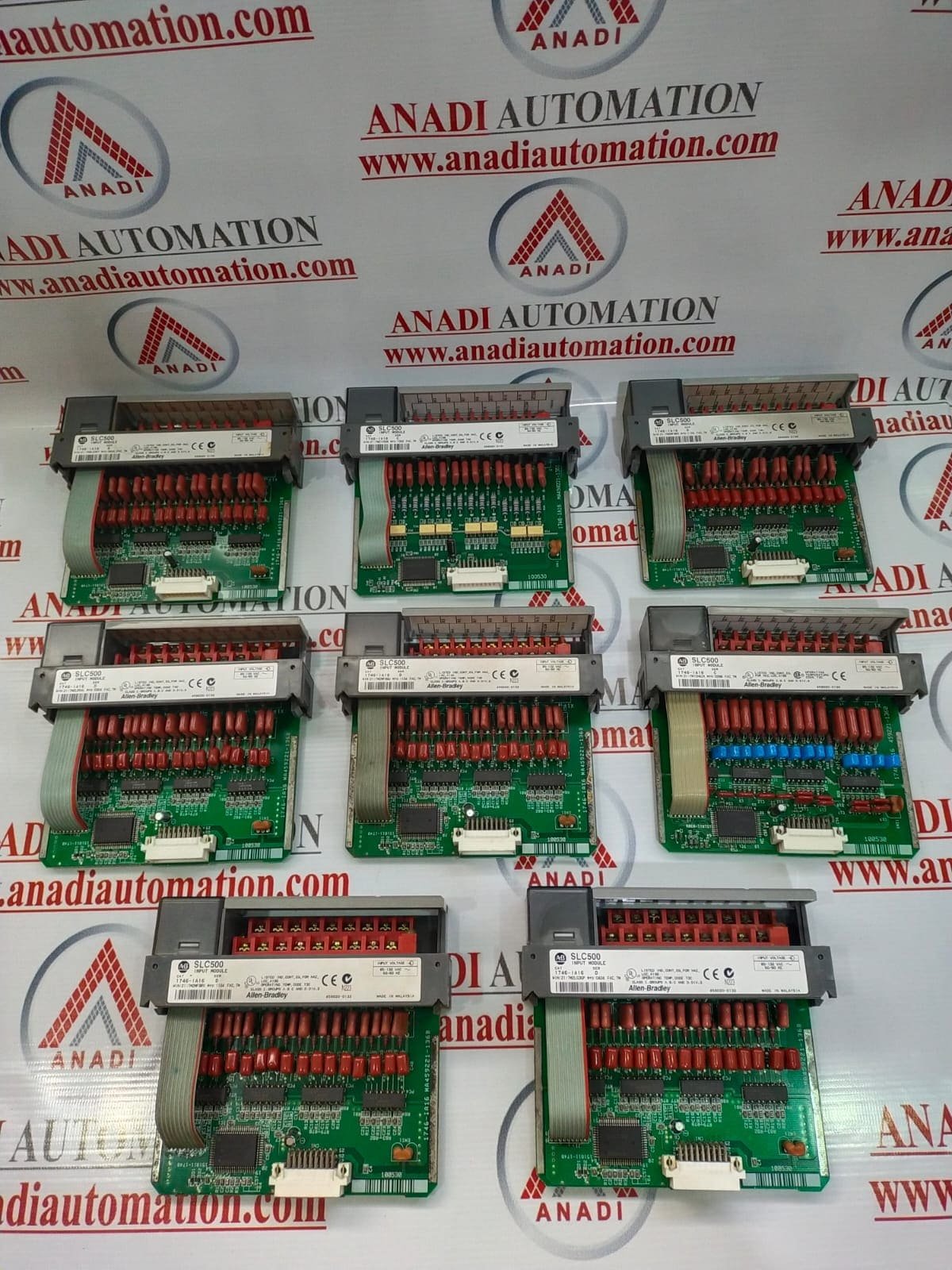

ALLEN BRADLEY 1746-IA16 INPUT MODULE

There is an Allen-Bradley 1746-IA16 Digital AC Input Module that is a part of the SLC 500 series. In terms of input channels, there are sixteen (16) input channels with a voltage range of 85-132 Volts AC for this Digital AC Input Module. A single slot on the chassis of the SLC 500 is occupied by this module.

Manufacturer: Identifies the manufacturer of the device as Rockwell Automation.

Brand: Specifies the brand of the device as Allen-Bradley.

Part Number/Catalog No.: Indicates the specific part number or catalog number for the device as 1746-IA16.

Series: Denotes the series of the device as SLC 500.

Module Type: Describes the module type of the device as a Digital AC Input Module.

Voltage Range: Specifies the acceptable voltage range for the device, which is 85 to 132 Volts AC.

Backplane Current (5 Volts DC): Indicates the backplane current requirement for the device at 5 Volts DC as 85 milliamps.

Inputs: Specifies the number of inputs available on the device as 16.

Signal delay: Indicates the signal delay options available for the device, which are 35 or 45 milliseconds.

Off State Current: Specifies the off state current requirement for the device as 2 milliamps.

Backplane Current: Indicates the backplane current requirement for the device at 5 Volts DC as 85 milliamps.

Signal delay, ON: Indicates the signal delay when the device is turned on as 35 milliseconds.

Slots: Specifies the number of slots required for the device as 1.

Signal Delay, OFF: Indicates the signal delay when the device is turned off as 45 milliseconds.

I/O Connection: Specifies the compatible I/O connections for the device as 1746-HT and 1746-HCA.

Step Response: Describes the step response time of the device as 100 milliseconds in and 2.5 milliseconds out.

OFF state Voltage, max: Specifies the maximum off state voltage for the device as 50 Volts AC.
