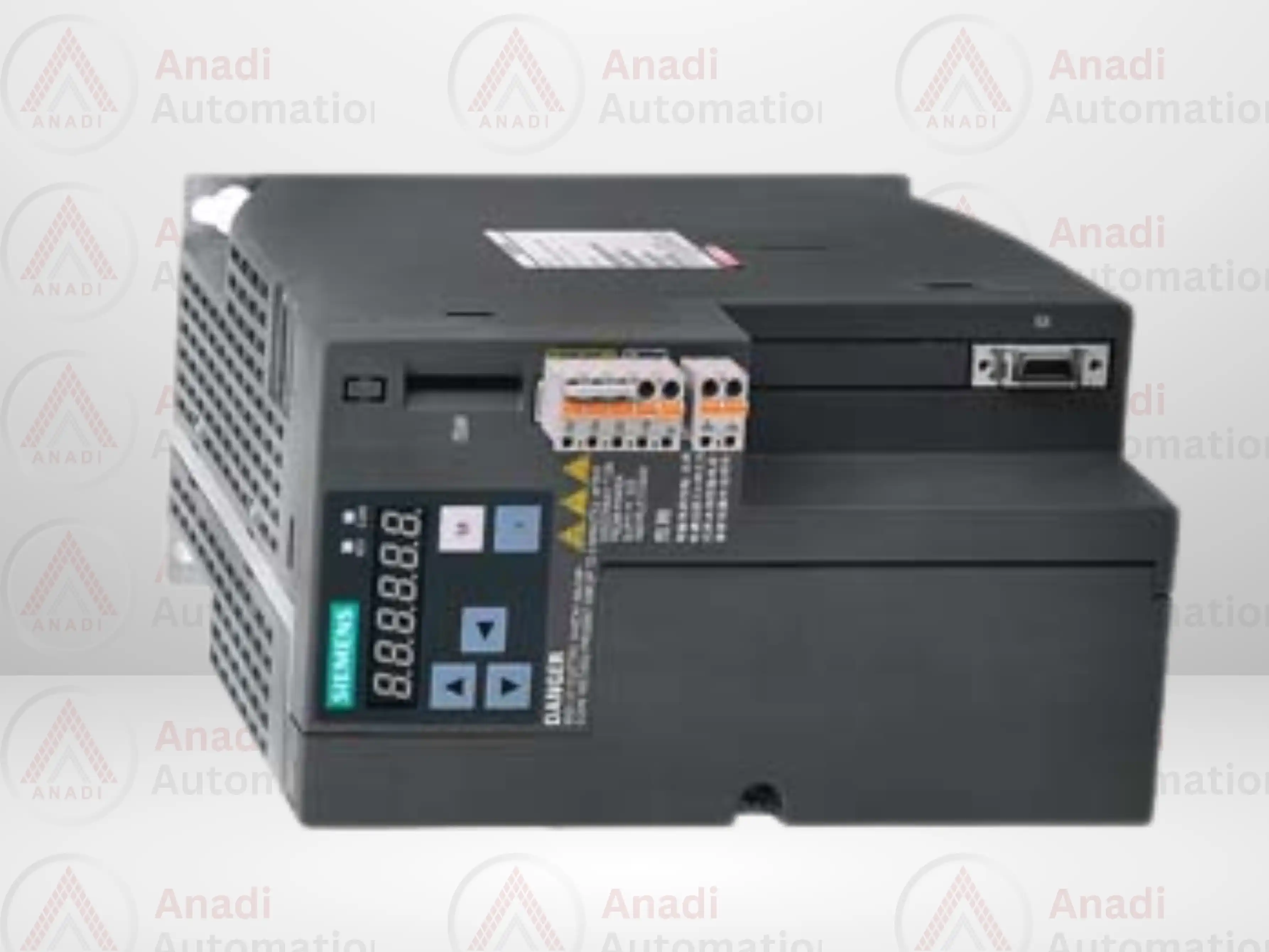

SIEMENS 6SL3210-5DE17-8UA0 SERVO DRIVE

Siemens 6SL3210-5DE17-8UA0 – SINAMICS G120 Power Module PM240-2 for 9.0 kW Motor Control Applications

The Siemens 6SL3210-5DE17-8UA0 is a PM240-2 Power Module designed for integration into the SINAMICS G120 modular drive system. This specific module is engineered to handle output power ratings up to 9.0 kW (12 HP) and is suitable for demanding industrial applications such as conveyor systems, machine tools, HVAC systems, and pump or fan operations. Built with precision and flexibility in mind, the PM240-2 series combines energy efficiency, ease of use, and seamless integration into automation environments.

This module operates on a 3-phase AC input voltage range of 380–480 V ±10%, with an input frequency of 47–63 Hz, ensuring compatibility with standard industrial power supplies. On the output side, it can deliver an output current of approximately 17.8 A, supporting motors configured within the corresponding power class. With an output frequency range from 0 to 650 Hz, the module offers excellent versatility for both constant and variable torque applications, providing smooth speed control across a wide spectrum of load conditions.

One of the key features of the 6SL3210-5DE17-8UA0 is its integrated braking chopper, which makes it suitable for applications that require dynamic braking—particularly useful in high-inertia or rapidly changing load environments. The internal air cooling system, supported by an integrated fan, ensures efficient heat dissipation. To maintain optimal performance and prolong equipment life, proper ventilation and clearance must be maintained during installation.

Physically, the unit is built for panel mounting with a vertical orientation, which simplifies integration into existing control cabinets. The protection class is rated IP20, indicating suitability for protected indoor environments and control panel installation. The module measures approximately 190 mm (W) x 350 mm (H) x 180 mm (D) and weighs around 6 to 7 kg, making it compact yet robust for its power rating.

In terms of connectivity and system integration, the power module is compatible with several control units, including the CU240E-2, CU250S-2, and CU230P-2, depending on the control requirements of your application. These control units unlock advanced functionality and communication capabilities, enabling seamless integration with modern industrial networks. Communication protocols supported via the control units include PROFINET, PROFIBUS, Modbus RTU, USS, and Ethernet/IP.

For configuration and commissioning, Siemens provides powerful software tools such as SINAMICS Startdrive within the TIA Portal and the STARTER software, both of which offer intuitive parameterization, diagnostics, and control interface options.

In summary, the Siemens 6SL3210-5DE17-8UA0 PM240-2 Power Module is a reliable and high-performance drive component built for modern industrial automation. Its combination of strong motor control capabilities, integrated braking, and extensive compatibility makes it a versatile choice for engineers and machine builders. At Anadi Automation, we provide expert support and prompt delivery for Siemens drive solutions tailored to your specific needs.
