Technical specifications for
6SG7076-0EB60-0-Z

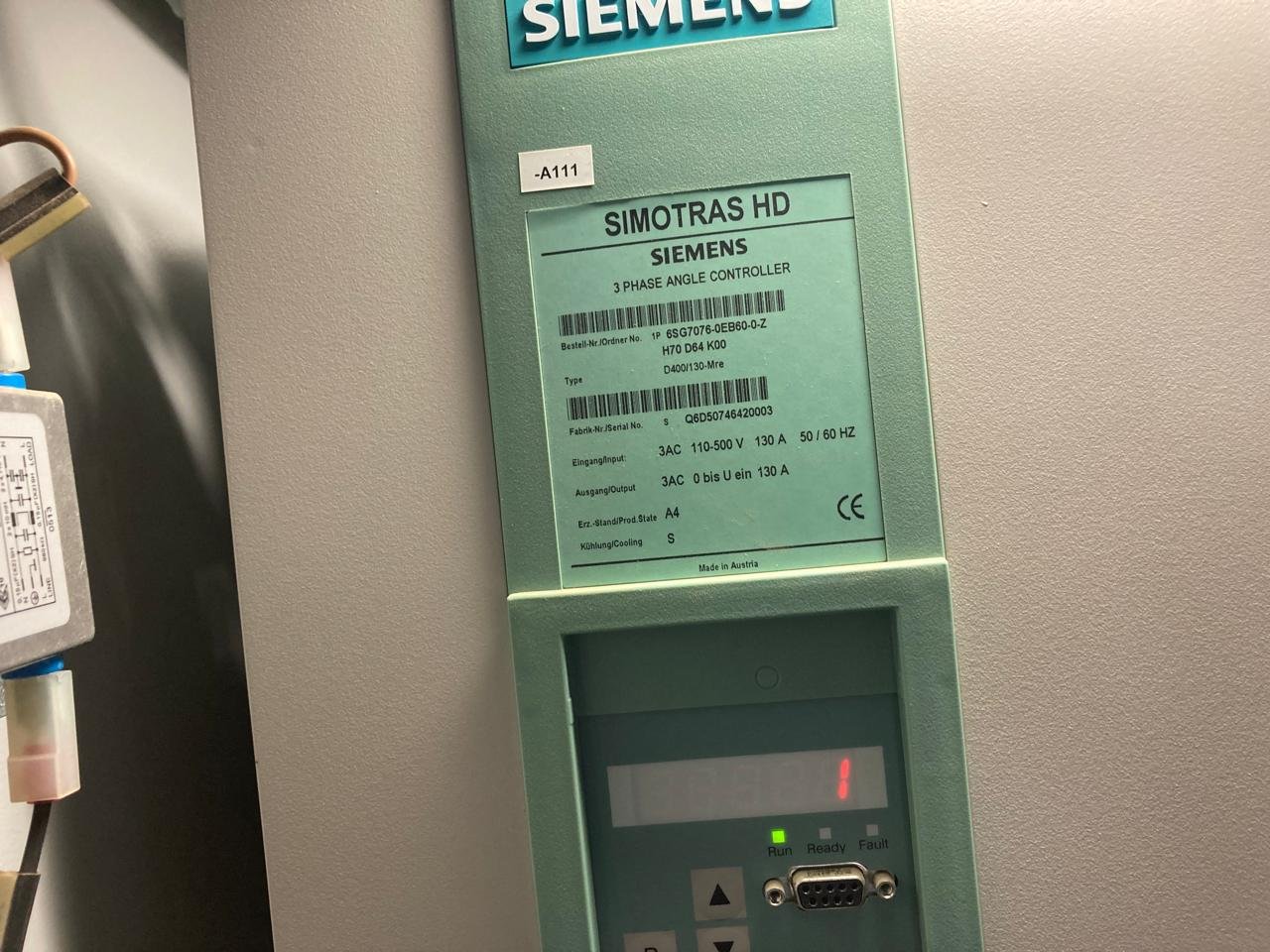

This industrial motion control device is a Siemens manufactured product. The Siemens 6SG7076-0EB60-0-Z Servo Drive is an integral part of an automation system where accurate control over motor operation and reliable performance is paramount. This drive is identified as a SIMOTRANS HD drive manufactured by Siemens. The 6SG7076-0EB60-Z servo drive can be used in a variety of heavy industrial applications, including cranes, hoisting systems and material handling equipment. This drive is specifically designed to drive slip-ring rotor motors which provide controlled speed and stable operation for large mechanical systems.
A key feature of the 6SG7076-0EB60-0-Z drive is its ability to operate within a wide range of supply voltages. The drive can be powered with a three-phase supply voltage of 110 Vrms to 500 Vrms (and 50/60 Hz) thus making it compatible with many different types of industrial power systems. The maximum rated current capacity of the 6SG7076-0EB60-0-Z drive is approximately 360 Amperes which makes this device suitable for use in high power heavy duty motor control applications.
The 6SG7076-0EB60-0-Z drive is capable of operating efficiently in industrial environments. The operating temperature of the 6SG7076-0EB60-0-Z drive shall be within the range of +0° Celsius (°C) to +40° to +45°C (°F), while the 6SG7076-0EB60-0-Z cannot be stored below -25° C and cannot be stored above +70° C. The 6SG7076-0EB60-0-Z drive can be installed at altitudes not exceeding 1,000 meters above sea level; operation above 1,000 meters but not exceeding 3,500 meters above sea level will be the responsibility of the user.
