Technical specifications for 6ES7414-5HM06-0AB0

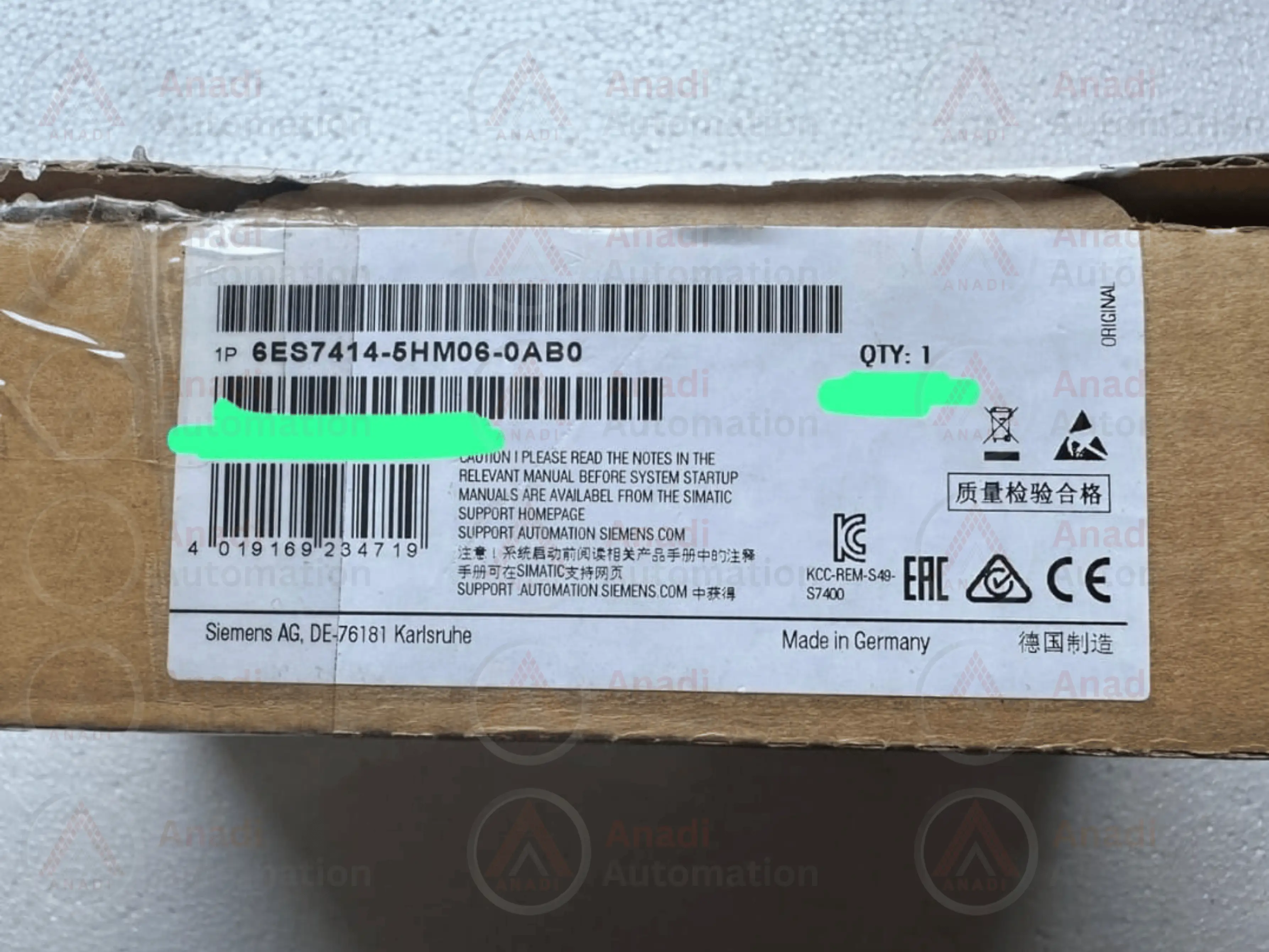

Siemens 6ES7414-5HM06-0AB0 - SIMATIC S7-400H CPU 414-5H
Product Overview
The Siemens 6ES7414-5HM06-0AB0 is a high-performance, fault-tolerant CPU designed for use in the SIMATIC S7-400H and S7-400F/FH automation systems. It is used in applications requiring high availability, redundancy, and safety in critical industrial processes.
Technical Specifications
✔ Manufacturer: Siemens
✔ Series: SIMATIC S7-400H
✔ Model: CPU 414-5H
✔ Part Number: 6ES7414-5HM06-0AB0
✔ Memory: 4MB total (2MB program / 2MB data)
✔ Interfaces:
- 1x MPI/DP (Multi-Point Interface / Profibus DP)
- 1x Profibus DP
- 1x Profinet (PN)
- 2x Sync Module Slots (for redundancy)
✔ Fault-Tolerance: Supports redundant operation
✔ Weight: 1.32 kg
✔ Dimensions (L × W × H): 23.30 × 30.10 × 6.30 cm
✔ Country of Origin: Germany
Key Features & Benefits
✔ High Availability & Redundancy – Designed for mission-critical applications.
✔ Integrated Profinet & Profibus Interfaces – Supports modern and legacy communication protocols.
✔ Modular Design – Scalable architecture for various industrial applications.
✔ Advanced Safety Capabilities – Compatible with S7-400F/FH fail-safe systems.
✔ Large Memory Capacity – Ensures high-speed processing for complex tasks.
Typical Applications
✅ Power Plants & Utilities – Ensures continuous operation & fault-tolerant control.
✅ Oil & Gas Industry – Handles critical process control with redundancy.
✅ Manufacturing & Automation – Used in large-scale automation systems.
✅ Pharmaceutical & Food Processing – Meets high-reliability standards.
Replacement & Upgrade Options
✔ For newer applications, consider Siemens SIMATIC S7-1500H or SIMATIC PCS 7.
✔ For enhanced redundancy, use S7-400H with Sync Modules for hot standby systems.
