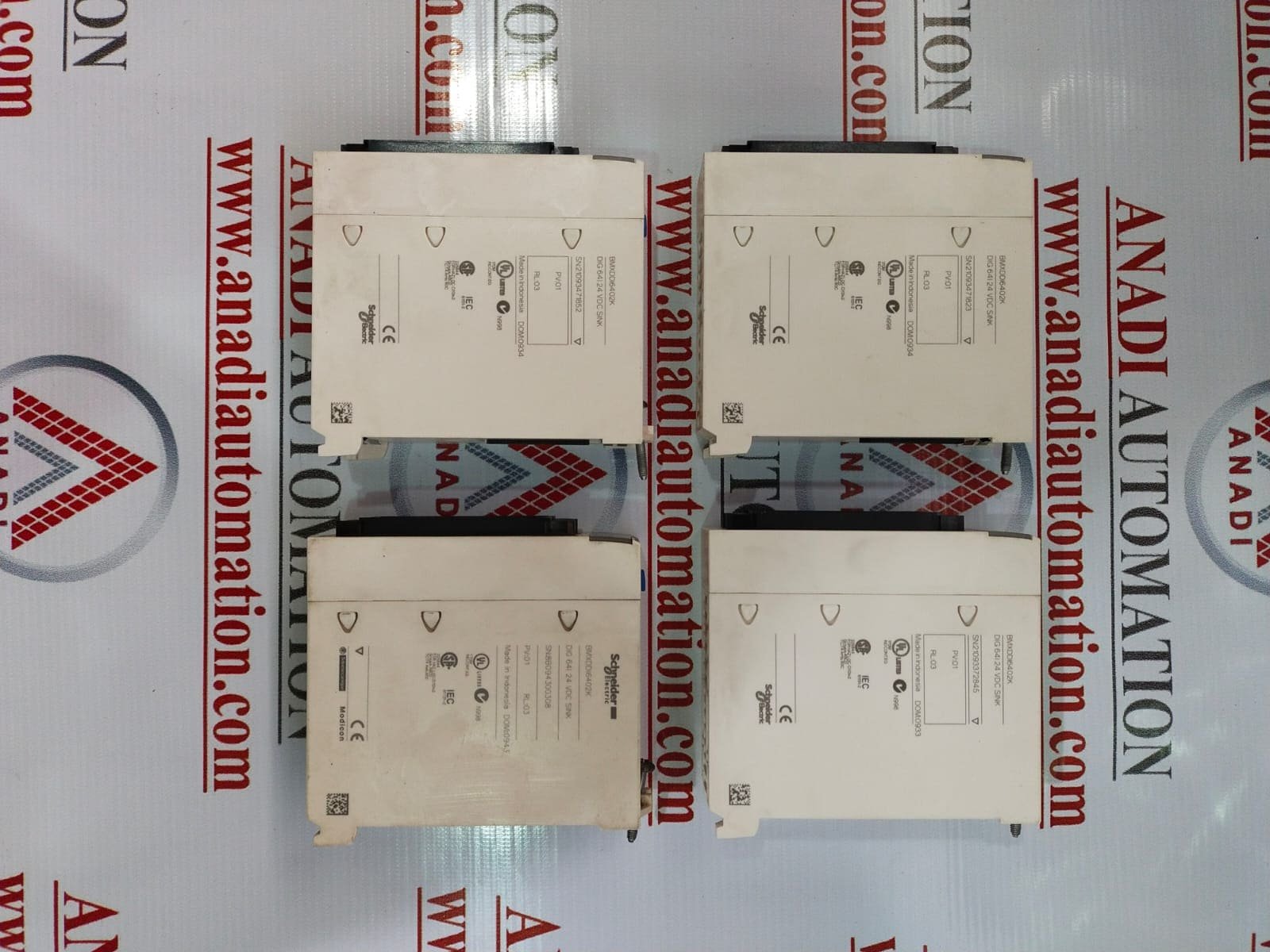

There are 64 discrete inputs on this discrete input module, and they have sink logic (positive). The module is an input module with a voltage of 24V DC input, a current consumption of 200mA at 3.3V DC input, and a power dissipation of 4.3W at its output. It is important to note that the channels are isolated from each other. We have developed a product that is robust, of high quality, and based on the most innovative technology available today.
Range of Product: Modicon X80
- The module is part of the Modicon X80 product range, offering a variety of automation and control solutions.
Product or Component Type: Discrete Input Module
- This module is specifically designed to handle discrete inputs in an industrial automation system.
Discrete Input Number: 64
- The module supports up to 64 discrete input channels.
Discrete Input Type: Isolated
- Each discrete input channel is electrically isolated to prevent interference between channels.
Input Type: Current sink (logic positive)
- The module operates on a current sink input type with positive logic.
Discrete Input Voltage: 24 V DC, discrete input logic: positive
- The input voltage for each discrete channel is 24 V DC with positive logic.
Discrete Input Current: 0.6 mA
- Each discrete input channel requires a current of 0.6 mA.
Sensor Power Supply:
- The sensor power supply for this module operates within a voltage range of 19 to 30 V, providing a versatile power source for connected sensors.
- The module features an input impedance of 40,000 Ohms, ensuring efficient and reliable signal reception from connected sensors.
- The insulation resistance of the module is greater than 10 Megaohms at 500 V DC. This high insulation resistance helps prevent unwanted electrical leakage and ensures the integrity of the system.
Power Dissipation in W:
- The module has a power dissipation of 4.3 Watts. This represents the amount of power the module releases in the form of heat during operation.
DC Typical Response Time:
- The typical response time for the module in processing DC signals is 4 milliseconds. This represents the time it takes for the module to react to an input signal under normal operating conditions.
DC Maximum Response Time:
- The module has a maximum response time of 7 milliseconds for processing DC signals. This indicates the longest time the module may take to respond to a signal.
Paralleling of Inputs:
- The module does not support paralleling of inputs. Each input operates independently without the option to combine signals from multiple inputs.
Typical Current Consumption:
- The typical current consumption for the module is 160 mA at 3.3 V DC. This represents the amount of current the module draws from the power supply under normal operating conditions.
- The module exhibits high reliability with a Mean Time Between Failures (MTBF) rating of 510,000 hours. This metric reflects the expected time between two failures of the module.
- The module is equipped with protection mechanisms, including 1 external fuse per group of channels with a rating of 0.5 A fast blow. However, it does not have reverse polarity protection.
- 1 LED (green) for +32 channels indicator
- 1 LED (green) for module operating (RUN)
- 1 LED per channel (green) for channel diagnostic
- 1 LED (red) for module error (ERR)
- 1 LED (red) for module I/O
Net Weight: 0.145 kg
- The module has a net weight of 0.145 kg, making it lightweight and easy to handle.
