Technical specifications for
MDS-B-SVJ2-06

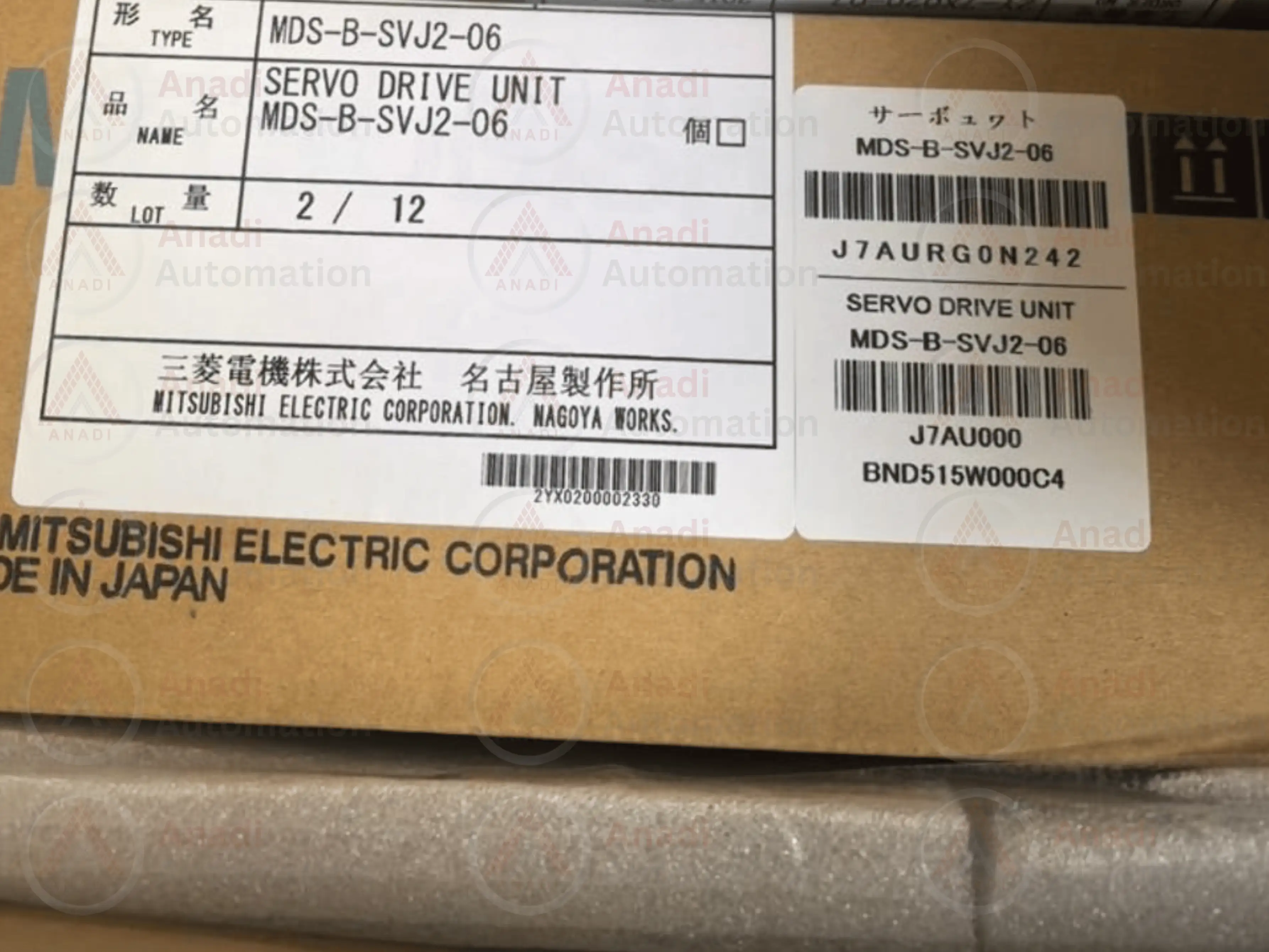

Mitsubishi MDS-B-SVJ2-06 Servo Drive Unit
Product Overview
The Mitsubishi MDS-B-SVJ2-06 is a servo drive unit from the MDS-B-SVJ2 series, designed to control servo motors in CNC machines and industrial automation systems. It serves as an enhanced successor to the MDS-A-SVJ series, offering improved performance and reliability.
Technical Specifications
✔ Brand: Mitsubishi
✔ Model Number: MDS-B-SVJ2-06
✔ Series: MDS-B-SVJ2
✔ Product Type: Servo Drive Unit
✔ Application: CNC Machines & Industrial Automation
Electrical Specifications
✔ Capacity: 0.6 kW
✔ Input Voltage: Three-phase AC 200-230V, 50/60Hz
✔ Input Current: 3.6A
✔ Output Voltage: Three-phase 170V
✔ Output Frequency: 0-360Hz
Mechanical & Environmental Details
✔ Dimensions: 380mm (H) × 60mm (W) × 272mm (D)
✔ Weight: Approximately 4.5 kg
✔ Cooling Method: Air Cooling
Key Features & Benefits
✔ Enhanced Performance – Improved response time and accuracy over previous MDS-A-SVJ series.
✔ Efficient Power Management – 0.6 kW capacity with optimized energy consumption.
✔ Compact & Lightweight Design – Slim 60mm width for space-saving installation.
✔ Stable & Reliable Operation – Supports high-speed CNC control and automation.
✔ Wide Frequency Range – 0-360Hz output frequency for versatile motor speed control.
