Technical specifications for
E84AVHCE2234VX0

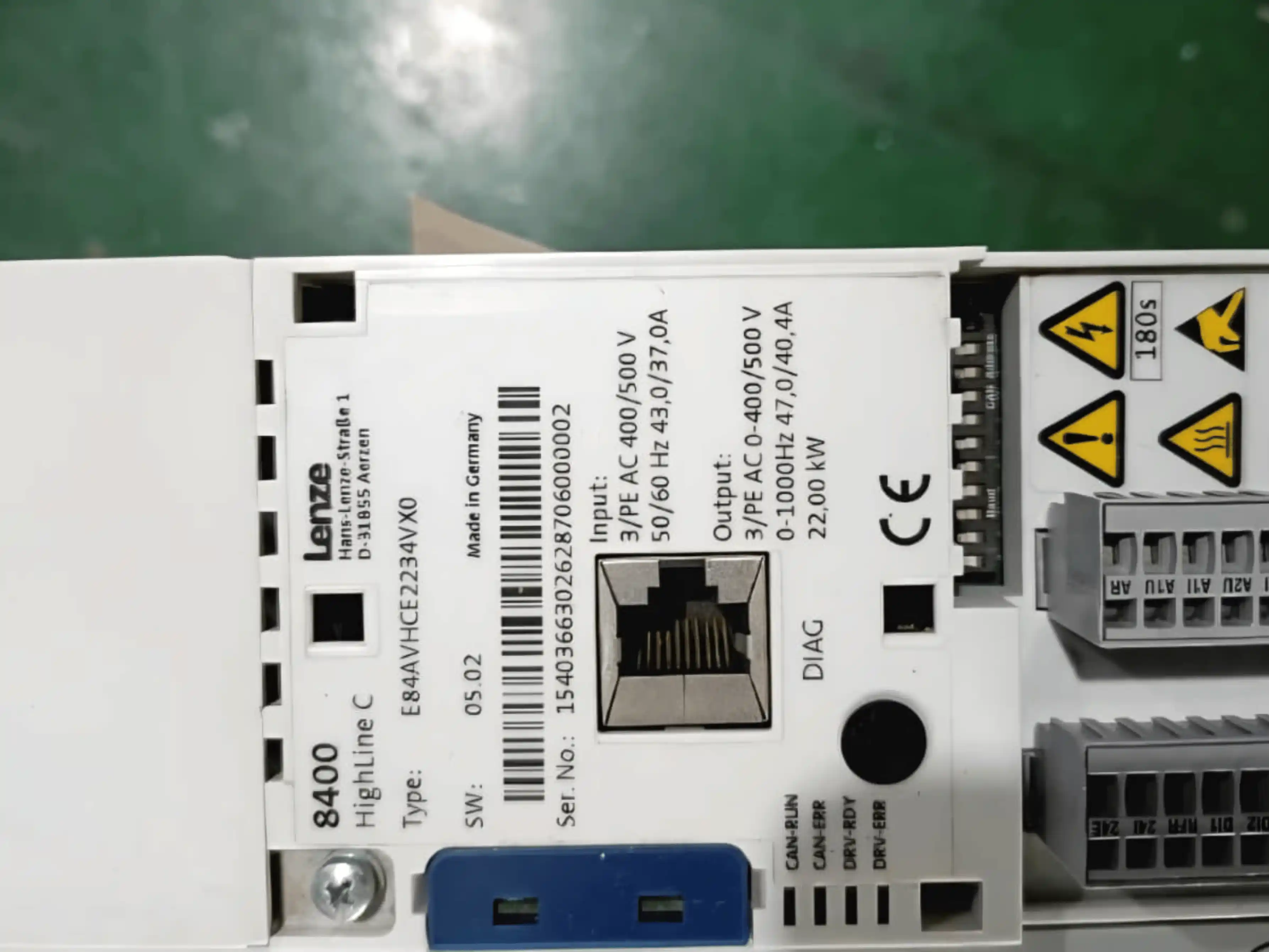

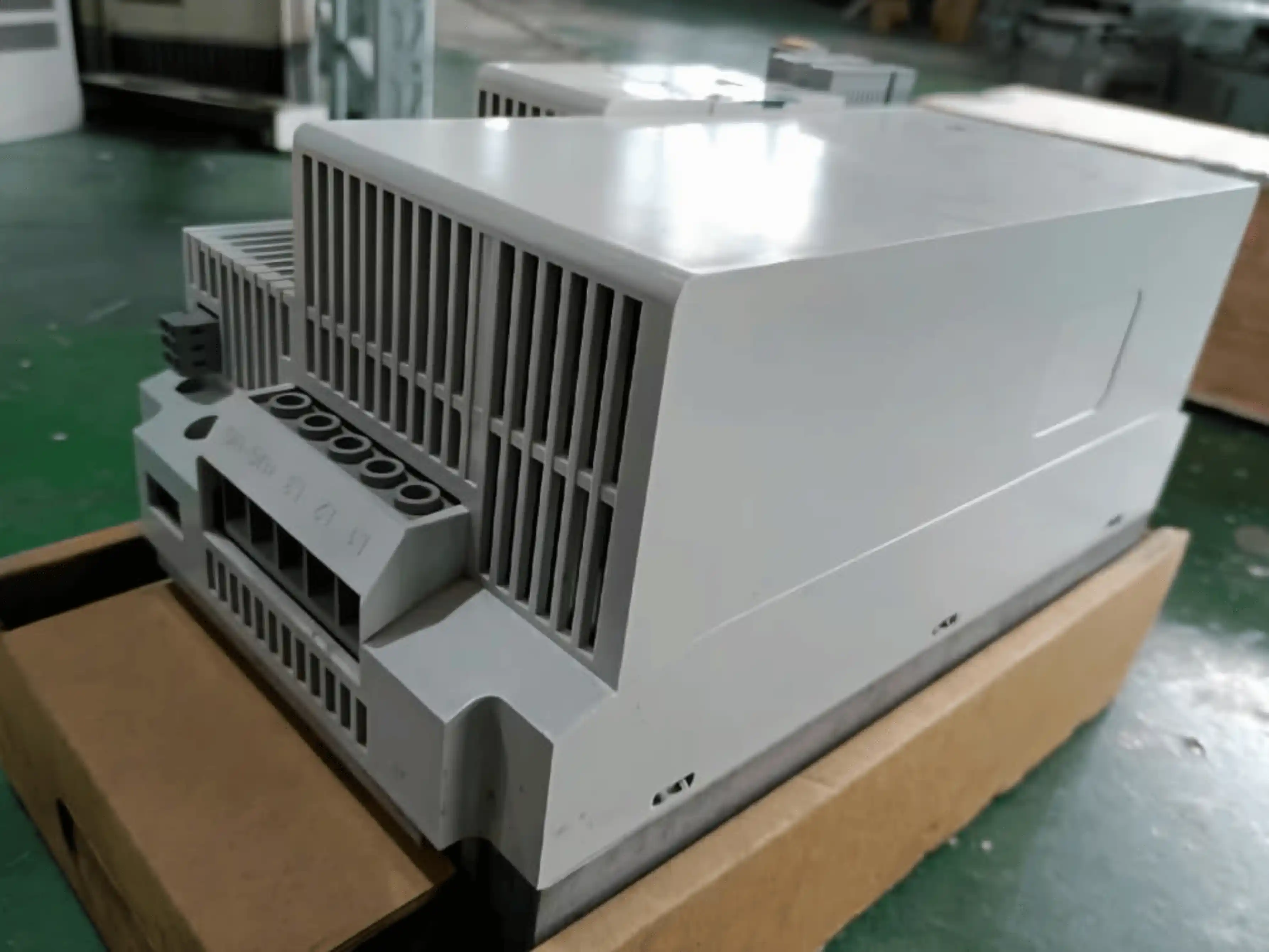

Lenze E84AVHCE2234VX0 – 8400 HighLine Frequency Inverter
The Lenze E84AVHCE2234VX0 from the 8400 HighLine series is a versatile general-purpose frequency inverter designed to deliver high efficiency and flexible control for a wide range of industrial drive applications. With a rated power capacity of 22 kW and a maximum current of 47 A, this compact inverter offers reliable operation for demanding motor control tasks across manufacturing, processing, and material-handling systems.
Operating on a three-phase 400 V main power supply, the inverter supports a wide output frequency range from 0 to 599 Hz, enabling precise speed regulation of standard and high-speed motors. It combines ease of use with advanced functionality, including integrated brake management to safely and efficiently handle dynamic braking loads, reducing the need for external braking units.
The IP20 enclosure makes it ideal for installation inside electrical cabinets, while an optional EMC filter allows compliance with stringent electromagnetic compatibility requirements in sensitive environments. Its operating temperature range of –10 °C to +45 °C (with a storage range down to –25 °C and up to +60 °C) provides robust performance in diverse industrial conditions.
For control versatility, the E84AVHCE2234VX0 offers a generous mix of inputs and outputs: two analog inputs, seven digital inputs, two analog outputs, and four digital outputs. It supports V/f control mode and sensorless vector control for enhanced torque response and energy efficiency, ensuring smooth, reliable motor operation even without encoder feedback.
Measuring 205 × 350 × 250 mm and weighing 12 kg, the inverter’s compact footprint allows for straightforward integration into control panels while maximizing space efficiency. This makes it an excellent choice for OEMs and maintenance engineers looking for a high-performance yet space-saving drive solution.
Overall, the Lenze E84AVHCE2234VX0 stands out as a powerful and adaptable drive option for general-purpose industrial applications, offering robust performance, flexible control modes, and simplified installation within the trusted 8400 HighLine platform.
