Technical specifications for E217428

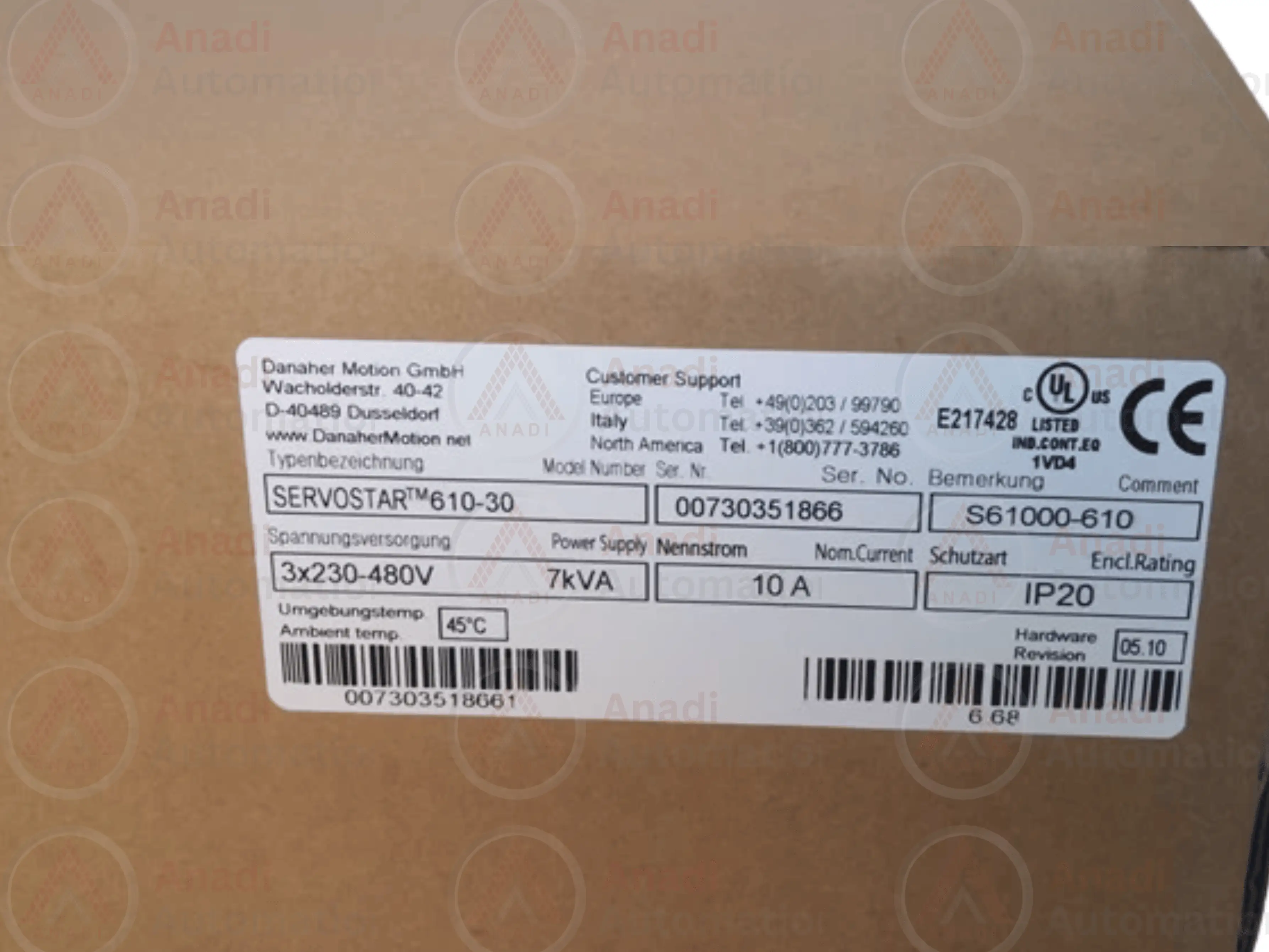

Kollmorgen E217428 SERVOSTAR™ 610-AS (S610) Servo Drive – High-Performance Precision Control
The Kollmorgen SERVOSTAR™ 610-AS (Model Number: S610) is a powerful and reliable servo drive built to meet the rigorous demands of modern industrial automation systems. Manufactured in Slovakia by Kollmorgen Europe GmbH, the S610 model is part of the renowned SERVOSTAR 600 series, known for delivering high-precision motion control and robust performance.
Ideal for applications requiring high-speed and high-torque control, the S610 offers seamless integration into systems such as robotics, packaging machines, and automated tools.
Technical Specifications:
Input:
-
Voltage: 3x230V–280V @ 50Hz or 3x208V–480V @ 60Hz
-
Full Load Current: 10A
Output:
-
DC-Link Voltage: 280–675V
-
Output Current: 10A
-
Phases: 3
-
Power Output: 7 kVA
-
Base Frequency: 8kHz (expandable to 16kHz with VDCmax = 400V)
Environmental Ratings:
-
Max Ambient Temperature: 45°C
-
Enclosure: IP20 (for installation inside protective enclosures)
⚙️ Key Features:
-
Advanced servo control for dynamic motion and precise positioning
-
Wide DC-link voltage range for efficient power management
-
Built for durability and long service life in demanding environments
-
Supports international safety and compliance standards
-
Compact design suitable for space-constrained electrical cabinets
