Technical specifications for

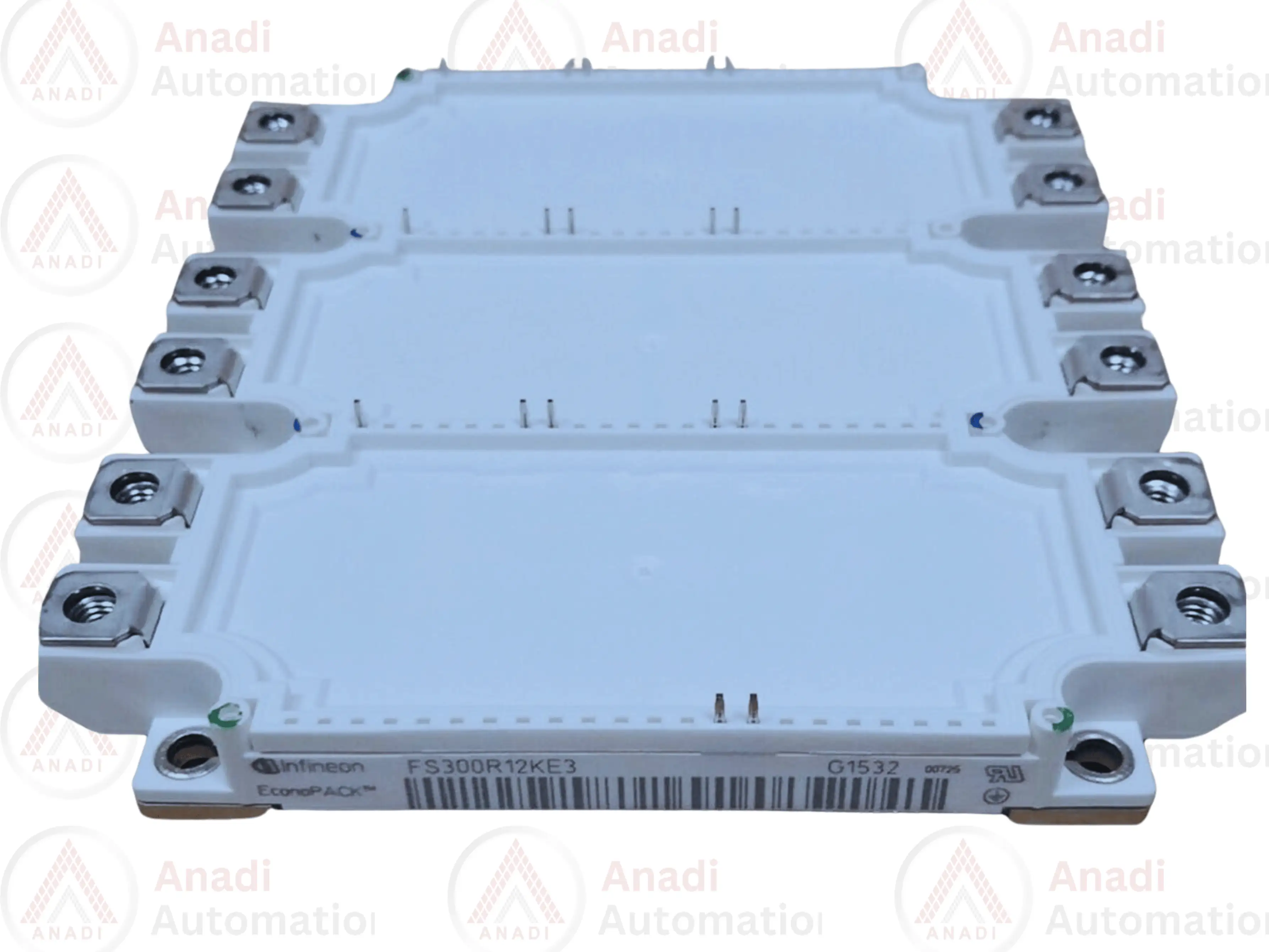

FS300R12KE3
It is a sixpack IGBT module with a voltage of 1200 V and a current of 300 A. It has easy separation of DC and AC. It also has an optimized thermal resistance case to heat sin
Configuration:
- The device is configured as a Sixpack, indicating its arrangement or grouping.
Dimensions:
- The device has a width of 150 mm, representing its physical size in the horizontal dimension.
- The device has a length of 162 mm, representing its physical size in the vertical dimension.
Features:
- Type of Connection:
- The device is equipped with a solder pin type of connection, facilitating its integration into a circuit.
- Housing Type:
- The device is housed in an EconoPACK™ + B type housing, providing a specific packaging configuration.
- Nominal Collector Current (IC):
- The nominal collector current is 300 A, indicating the maximum continuous current that the device can handle under specified conditions.
- Maximum Collector Current (IC max):
- The maximum collector current is also specified as 300 A, providing information on the maximum allowable current.
- Qualification:
- The device is qualified for industrial applications, ensuring reliability and performance in industrial settings.
- Technology:
- The device utilizes IGBT3 - E3 technology, indicating its semiconductor technology type.
- The typical collector-emitter saturation voltage at a junction temperature of 25°C is specified as 1.7 V.
- The typical forward voltage at a junction temperature of 25°C is specified as 1.65 V.
- Maximum Voltage Class:
- The device belongs to a maximum voltage class of 1200 V, indicating its voltage-handling capabilities.
