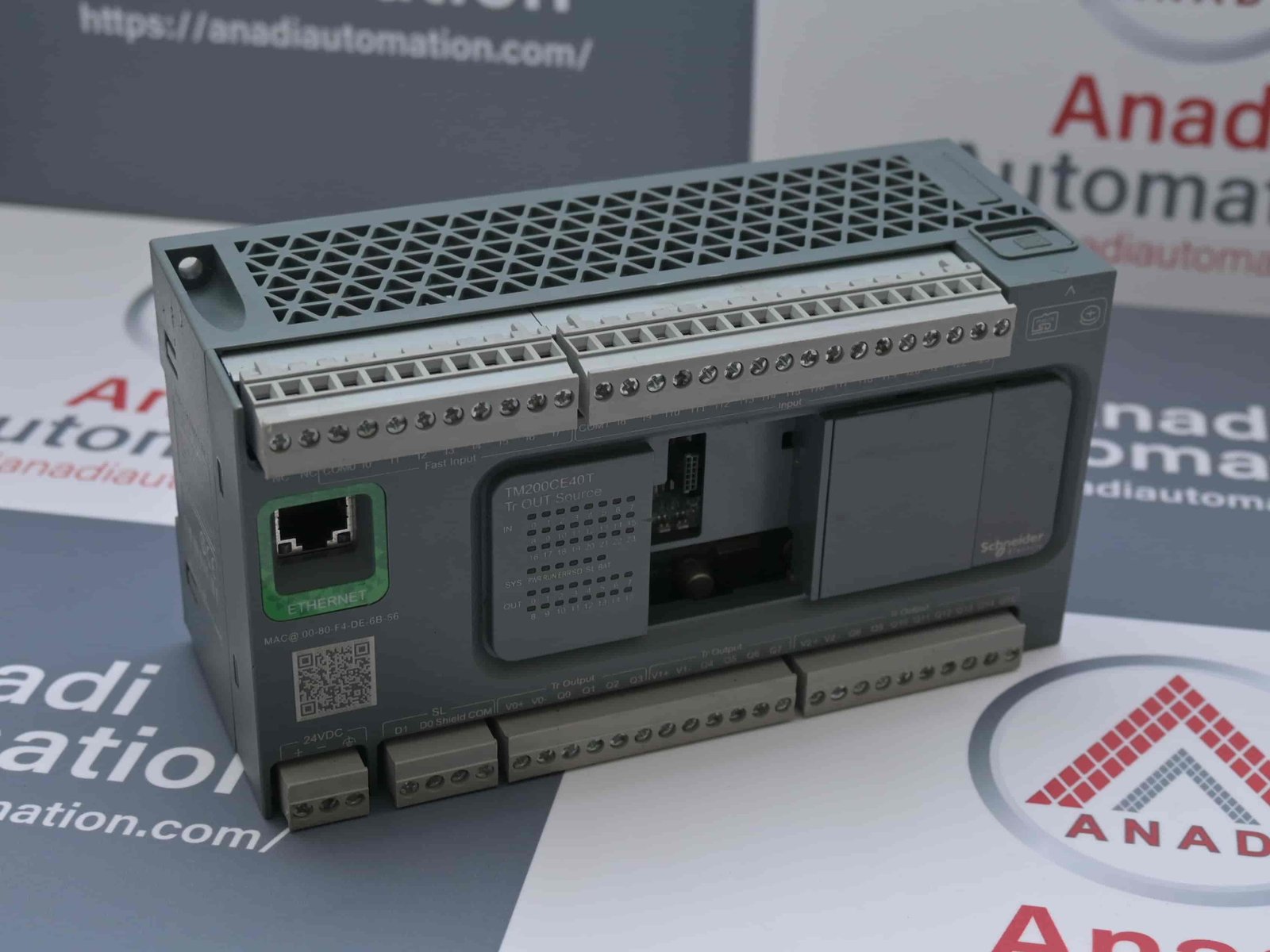

The Schneider Electric TM200CE40T is a versatile PLC controller with 24 digital inputs and 16 digital outputs, ideal for efficient industrial automation.
At Anadi Automation, we offer brand new equipment backed by the Original Manufacturers Warranty.
1.OEM warranty
2.Competitive pricing
3.Free quotes
* Equipment is subject to availability. Check Stock
Global supplier of quality automation and control components
Dispose of your old unit by exchanging it for a working part.
A comprehensive repair service for faulty equipment.
The Easy Modicon M200 is a compact yet powerful logic controller designed for efficient automation and control. Its robust design, flexible I/O options, and fast response times make it a reliable choice for various industrial applications.
Rated Supply Voltage: 24 V DC, making it suitable for a wide range of industrial power systems.
Power Consumption: Consumes 18 W when operating at 24 V DC, even when all inputs/outputs (I/O) are fully utilized.
Battery: Powered by a BR2032 Li-CFx battery with a life expectancy of up to 5 years. The battery ensures 3 years of backup time at 25 °C during power supply interruptions.
Discrete I/O: Equipped with a total of 40 discrete I/O points, offering flexibility for various control systems.
Discrete Inputs:
Voltage: 24 V DC
Current: 7 mA per input
Logic Type: Can be configured as either sink or source (positive/negative logic) according to IEC 61131-2 standards, giving flexibility in the control system.
Discrete Outputs:
Voltage: 24 V DC
Current: 0.5 A per output
Output Type: Transistor-based
Output Logic: Positive logic (source)
Maximum Leakage Current: 0.1 mA for transistor outputs, ensuring low power loss.
Maximum Voltage Drop: Less than 1 V, contributing to efficient energy use.
Maximum Tungsten Load: 12 W for output and fast output, ideal for controlling high-power devices.
Protection: Features overload and short-circuit protection at 2 A, ensuring long-term reliability and safety.
Output Frequency: Can handle up to 100 kHz for fast output modes such as PWM (Pulse Width Modulation) and PLS (Pulse) at outputs Q0 to Q1, ideal for precise motion control or signal generation.
Execution Time:
For 1 KInstruction: 0.3 ms for event and periodic tasks, ensuring quick and responsive execution.
Per Instruction: As low as 0.2 µs for Boolean operations, providing high-speed performance for logic control.
Event Task: 60 µs response time, ensuring fast reactions to input signals.
Memory Capacity: 512 bytes of internal flash memory for backup programs, providing secure storage in case of power loss.
Data Storage: Optionally expandable with a 32 GB micro SD card for additional data storage, ideal for larger applications requiring extensive data logging or program storage.
Clock Drift: The controller maintains a clock drift of less than 90 seconds per month at 25 °C, ensuring precise timing for long-term operations.
Reset Time: Features an automatic reset within 1 second, ensuring that the system quickly recovers from interruptions or errors.
Height: 90 mm
Width: 175 mm
Depth: 70 mm
