Technical specifications for

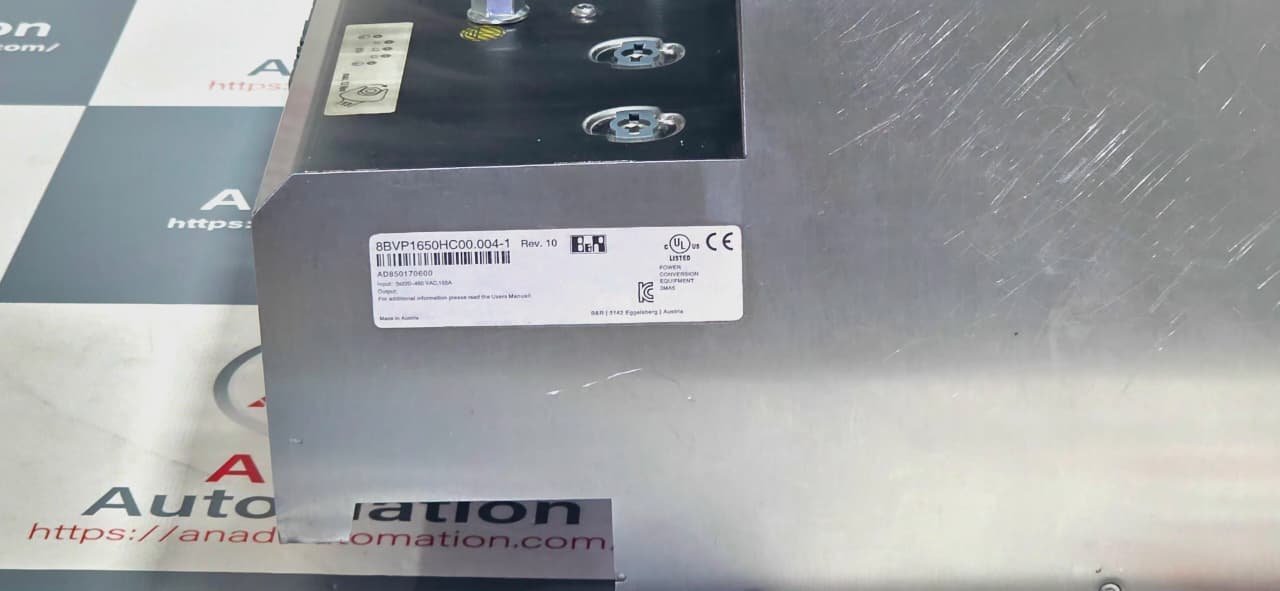

8BVP1650HC00.004-1

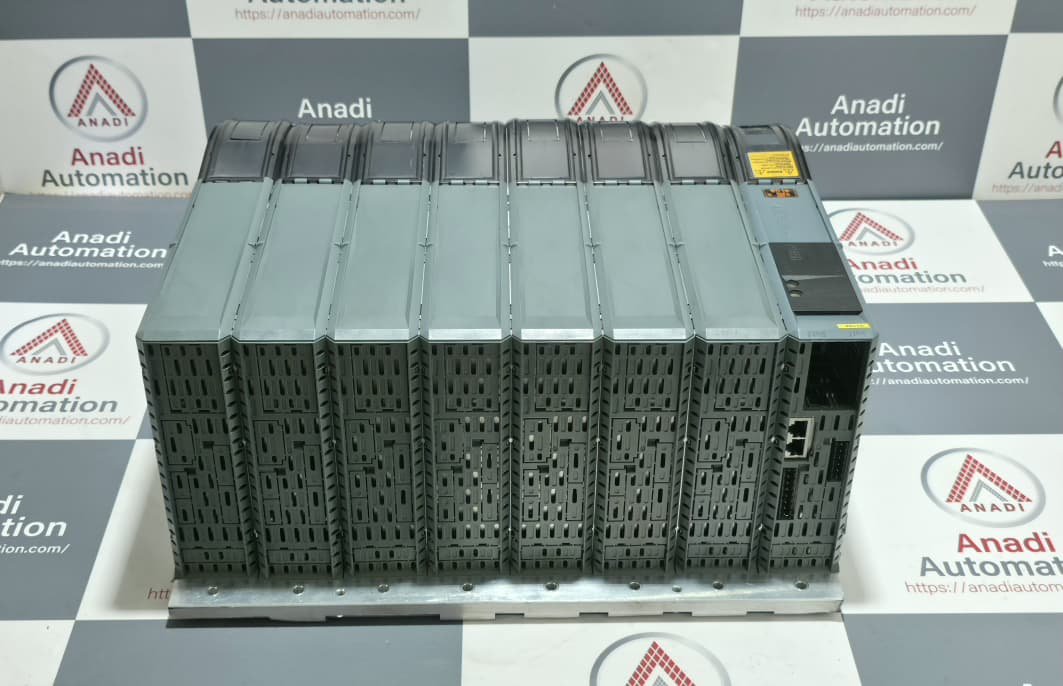

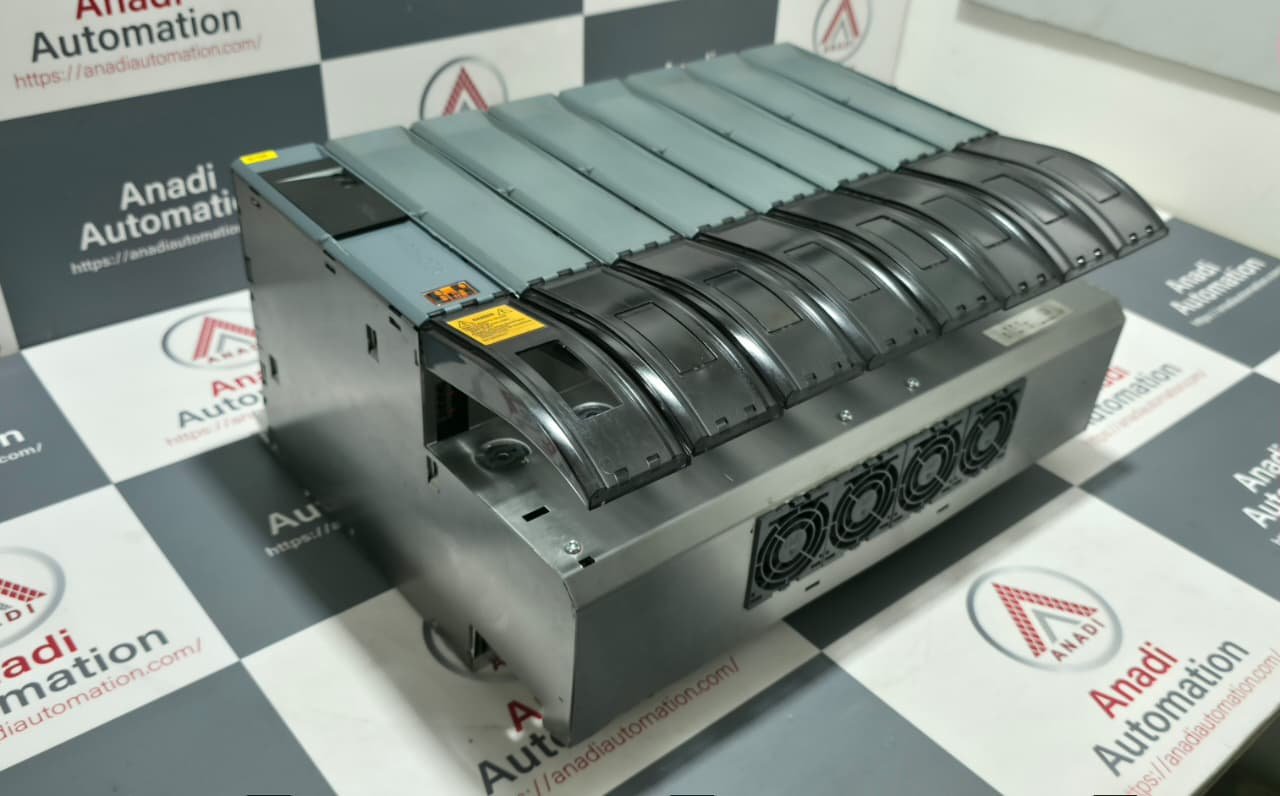

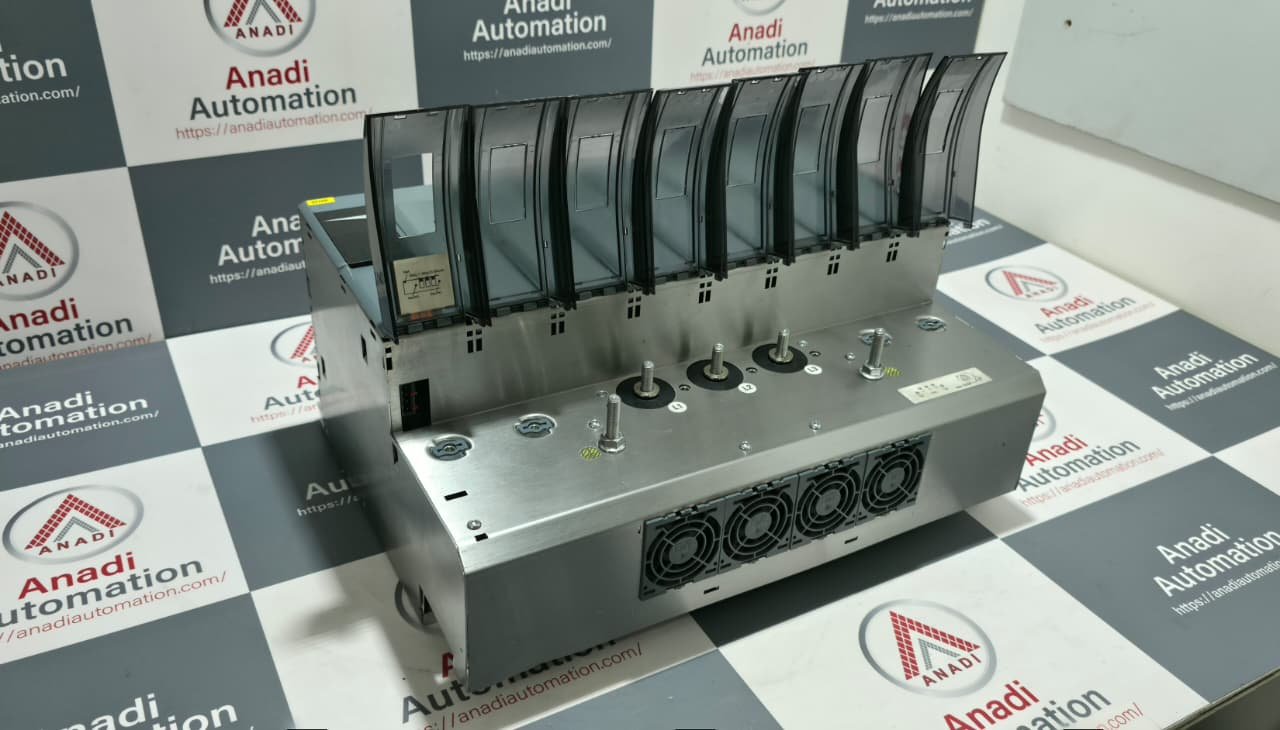

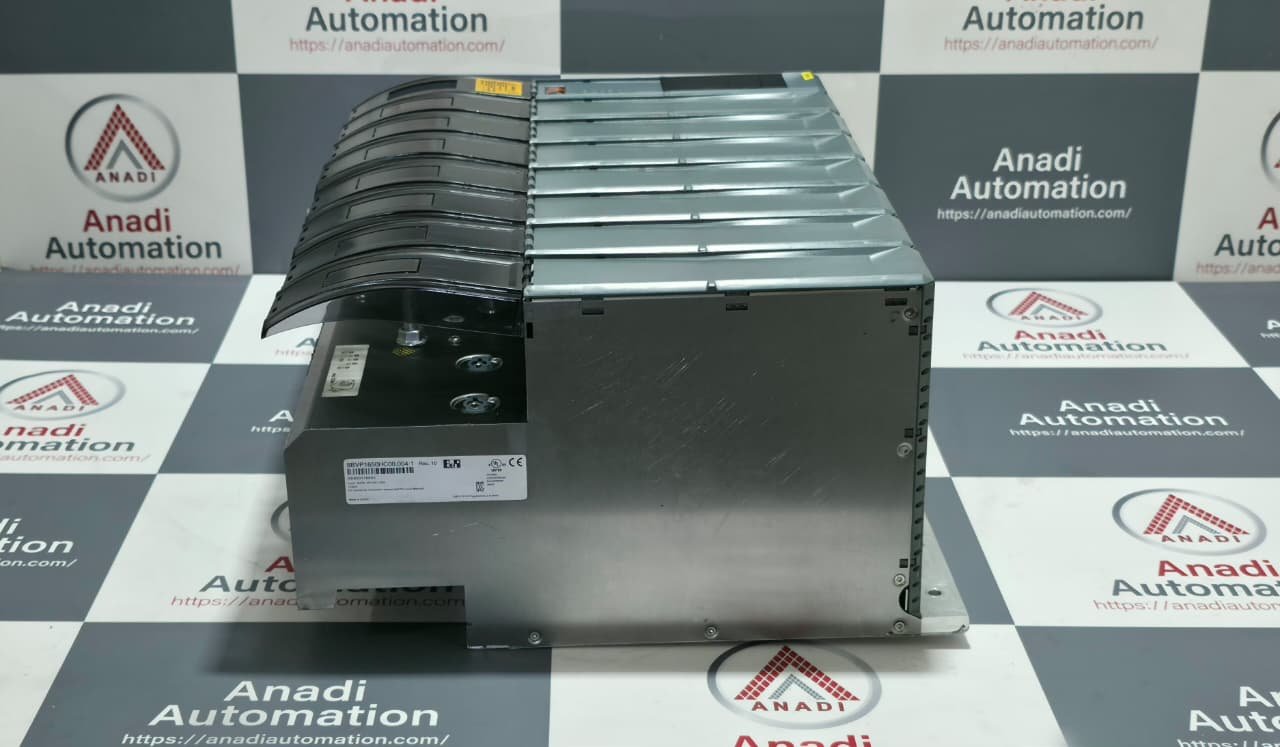

The 8BVP1650HC00.004-1 from B&R Automation is a high-performance power supply and servo drive module from the ACOPOSmulti series, designed for industrial automation and motion control systems. It operates with a DC bus input range of 260 to 800 VDC and a control voltage of around 25 VDC, delivering a stable 24 VDC output with a nominal current of 165 A. The unit supports peak currents up to 330 A and offers switching frequencies of 5, 10, and 20 kHz, ensuring efficient and precise motor control in demanding applications.
Built for reliability, it includes protection features such as overcurrent, short-circuit, and ground fault protection, along with an integrated electronic fuse. The module operates within a temperature range of 5°C to 40°C (up to 55°C max) and supports humidity levels from 5% to 85%, with an IP20 protection rating. It features a compact industrial design (approx. 427.5 mm × 317 mm × 210 mm, 18 kg) and supports cold plate or pass-through mounting, making it a durable and flexible solution for high-load automation environments.
