Technical specifications for
5069-L306ER

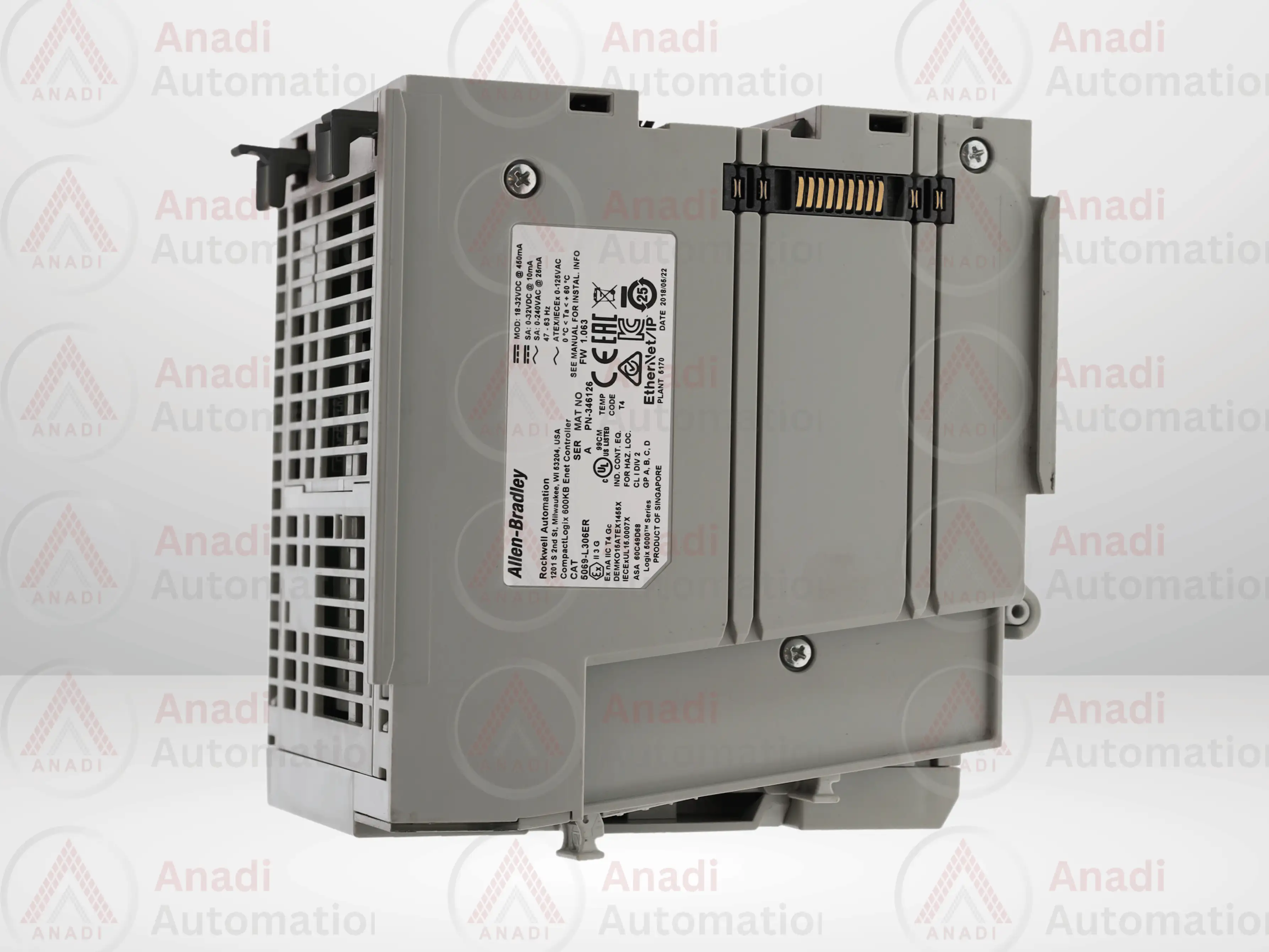

Allen-Bradley 5069-L306ER CompactLogix controller
The Allen-Bradley 5069-L306ER is a 5380 CompactLogix controller from Rockwell Automation, designed for high-performance industrial control systems. It features two (2) Ethernet/IP ports and one (1) USB port, delivering network speeds of 10/100/1Gbps and supporting Device Level Ring, Star, and Linear topologies. With 0.6 MB of standard user memory and a 2 GB 1784-SD2 non-volatile memory card included (expandable up to 32 GB), this controller provides robust data handling and program retention. The 5069-L306ER supports up to eight (8) 5069 I/O modules, 256 axes, 32 tasks, and 1000 programs per task, offering exceptional scalability.
This CompactLogix 5380 controller supports programming in Ladder Diagram, Function Block Diagram, Sequential Function Chart, and Structured Text, ensuring flexibility across applications. Additional advanced capabilities include pulse latching and pattern matching, making it ideal for complex automation systems. The unit has a compact design with dimensions of 5.4 x 0.9 x 4.2 inches and a weight of 0.39 lbs (175 g), suitable for space-constrained control panels.
