Part Number: 2711C-T6M

Model Number: 2711C-T6M

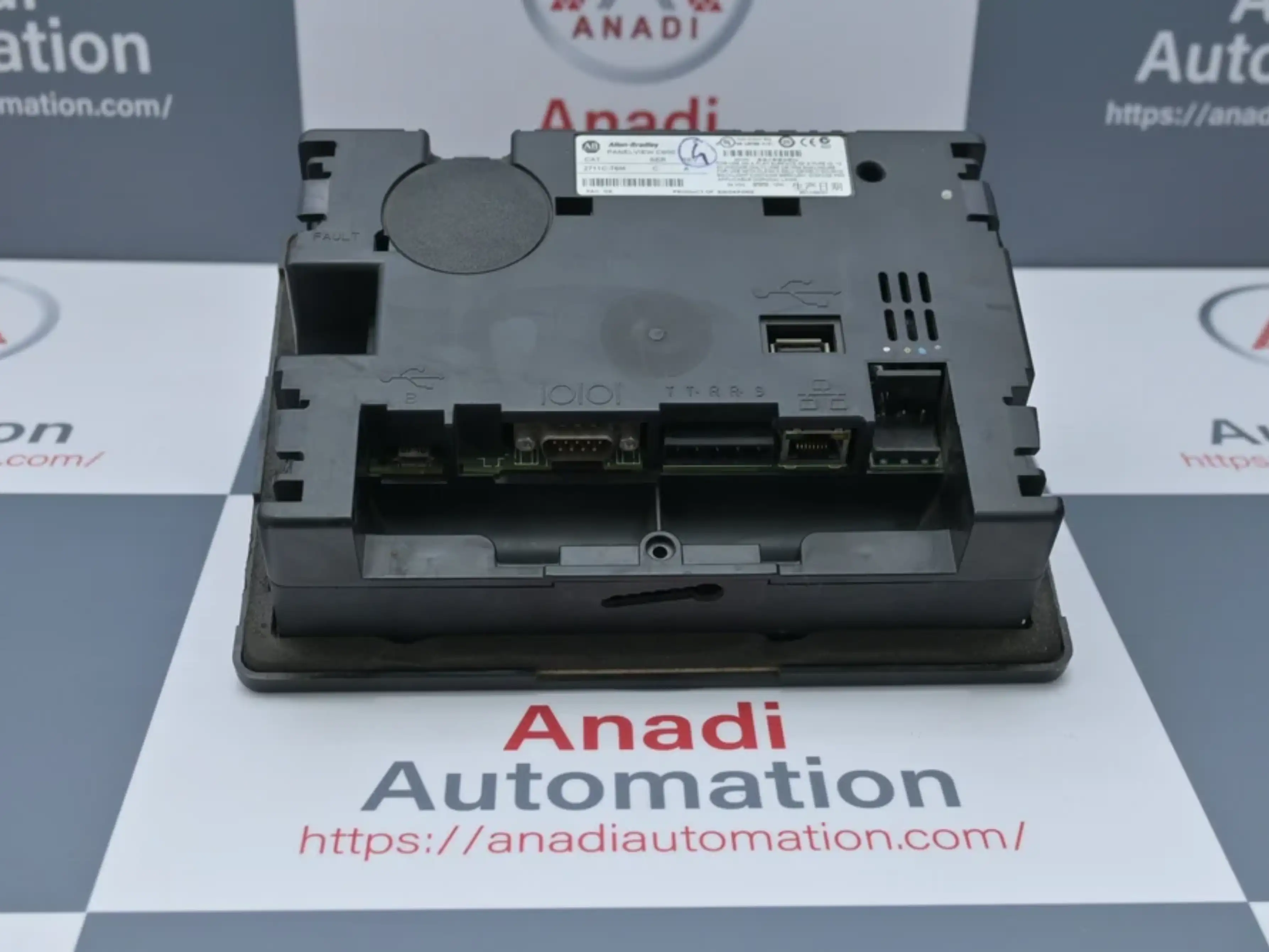

ALLEN BRADLEY 2711C-T6M Panelview

The Allen-Bradley 2711C-T6M PanelView Component HMI features a 5.7-inch monochrome display with touch input, ideal for efficient operator interface in industrial automation applications.

Check Availability

Part number: 2711C-T6M
Brand: ALLEN BRADLEY
Product Type: Panelview
Warranty: A one-year warranty is provided by Anadi Automation. [Terms and Conditions apply]
Stock Location: Nashik, India
In Stock Quantity: Unit
Note: We are an independent supplier of ALLEN BRADLEY parts and are not an authorized distributor.

At Anadi Automation, we offer brand new Panelview equipment sourced from trusted suppliers.
Why Choose Us:

1.High-quality genuine products
2.Free quotes available

All products are subject to availability. Please check stock with our team.

Save More with Quality Used Parts
Purchasing used parts can offer significant savings compared to buying brand-new equipment.

At Anadi Automation, all our used spare parts come with a comprehensive 12-month warranty provided by us, giving you complete peace of mind. We are committed to helping you maximize your project’s cost efficiency.

Note:All products, including refurbished and used items, come with a 12-month warranty provided directly by Anadi Automation. This warranty covers parts and labor, but does not include coverage by the original manufacturer

Save More with Refurbished Parts Opting for refurbished items can lead to significant savings compared to purchasing brand-new ones.

At Anadi Automation, all our refurbished spare parts come with a comprehensive 12-month warranty provided by us, ensuring your peace of mind.

Why Choose Anadi Automation:
1.12-month warranty by Anadi Automation
2.Free quotes with fast response times
3.Equipment is subject to availability. Please check stock with our team.

Note:All products, including refurbished and used items, come with a 12-month warranty provided directly by Anadi Automation. This warranty covers parts and labor, but does not include coverage by the original manufacturer

2711C-T6MRepair Services If your ALLEN BRADLEY 2711C-T6M module has been damaged during factory use, we are here to help.

At Anadi Automation, we specialize in fast, reliable repairs to help you minimize downtime and reduce costs.

Contact us today for expert 2711C-T6M repair services and get your operations back on track quickly!

Note:All repairs are handled by Anadi Automation with a warranty provided by us. This warranty does not come from Manufacturer, and we are not affiliated with any brands in providing this warranty.

Sourcing your part

Global supplier of quality automation and control components

Service Exchange

Dispose of your old unit by exchanging it for a working part.

Repair

A comprehensive repair service for faulty equipment.

Alternative Names for 2711C-T6M

2711C-TGM
27IIC-T6M
2711CT6M
Z711C-T6M

Technical specifications for 2711C-T6M

Allen-Bradley 2711C-T6M PanelView HMI

The Allen-Bradley 2711C-T6M is a compact and versatile Human-Machine Interface (HMI) terminal, part of the PanelView 600 Component series, designed for industrial automation applications. This 6-inch color transmissive CSTN passive matrix LCD display offers a resolution of 320 x 240 pixels, providing clear and concise visual feedback for operators. The display area measures 115 x 86 mm (4.53 x 3.39 inches), offering sufficient space for monitoring and control. It boasts a brightness of 400 cd/m², with a contrast ratio of 500:1, ensuring high visibility in a variety of environments. The LED backlight provides a long lifespan of 50,000 hours minimum but is not replaceable.

The analog touchscreen on this module can endure up to 1 million presses and offers ±2% accuracy in the active area, making it both durable and responsive. It operates with an input voltage range of 18–30V DC (nominal 24V DC), with a power consumption of 5 watts and heat dissipation of 32 BTU per hour, ensuring energy-efficient performance.

For communication, this model includes an RS-232 port supporting DH-485 and DF1 protocols, Ethernet 10/100 Base-T x 1, and USB 2.0 x 1, providing versatile connectivity options for integration with other devices and control systems.

In terms of physical dimensions, this module weighs approximately 1.5 pounds (0.68 kg), with dimensions of 6.0 inches wide, 8.23 inches high, and 2.25 inches deep, making it compact and easy to mount in various control panel setups. The HMI is also compatible with Internet Explorer 7 and 8 and Firefox 3.0 for web-based browser access.

This device is built for durability and reliability, with NEMA/UL Type 12, 13, 4X, and IEC IP54, IP65 enclosures, offering robust protection against dust, water, and environmental factors. It can operate in temperatures ranging from 0°C to 55°C, making it suitable for a wide range of industrial environments.

FAQ

Que1: What is the display size and resolution of the Allen-Bradley 2711C-T6M? ▶

Ans: The display is a 6-inch color transmissive CSTN passive matrix LCD with a resolution of 320 x 240 pixels (QVGA) and a display area of 115 x 86 mm (4.53 x 3.39 in.).

Que2: What is the backlight life of the 2711C-T6M HMI? ▶

Ans: The HMI features a LED backlight with a lifetime of 50,000 hours minimum. Please note, the backlight is non-replaceable.

Que3: What type of touchscreen does this module use? ▶

Ans: This module has an analog touch screen with an actuation rating of 1 million presses and ±2% touch accuracy.

Que4: What is the input voltage range and power consumption of this HMI? ▶

Ans: The input voltage range is 18-30V DC, with a nominal value of 24V DC. It consumes 5 Watts of power and dissipates 32 BTU per hour.

Que5: What communication ports are available on this module? ▶

Ans: this module supports:
RS-232 (DH-485 and DF1)
Ethernet (10/100 Base-T x 1)
USB Host (USB 2.0 x 1)

Que6: What are the physical dimensions and weight of this module? ▶

Ans: The HMI's dimensions are:
Width: 6.0 inches
Height: 8.23 inches
Depth: 2.25 inches
Its weight is approximately 1.5 pounds (0.68 kg).

Que7: What are the environmental ratings of this module? ▶

Ans: This model has NEMA/UL Type 12, 13, 4X and IEC IP54, IP65 ratings, ensuring it is resistant to dust, moisture, and mechanical impact, making it suitable for industrial environments.

Que8: Which web browsers are compatible for configuring tthis module? ▶

Ans: This module is compatible with:
Internet Explorer 7 and 8
Firefox 3.0

Testimonial

⭐ 5.0

/5.0

Recommended

reviews

See all reviews →

⭐ 5

PanelView is easy to operate and looks sleek.

⭐ 5

Good touchscreen response and build quality.

⭐ 5

Fits well in our system and handles data perfectly.

⭐ 5

Impressive delivery time and customer support.

⭐ 5

Clean interface and simple setup. Highly recommend.
