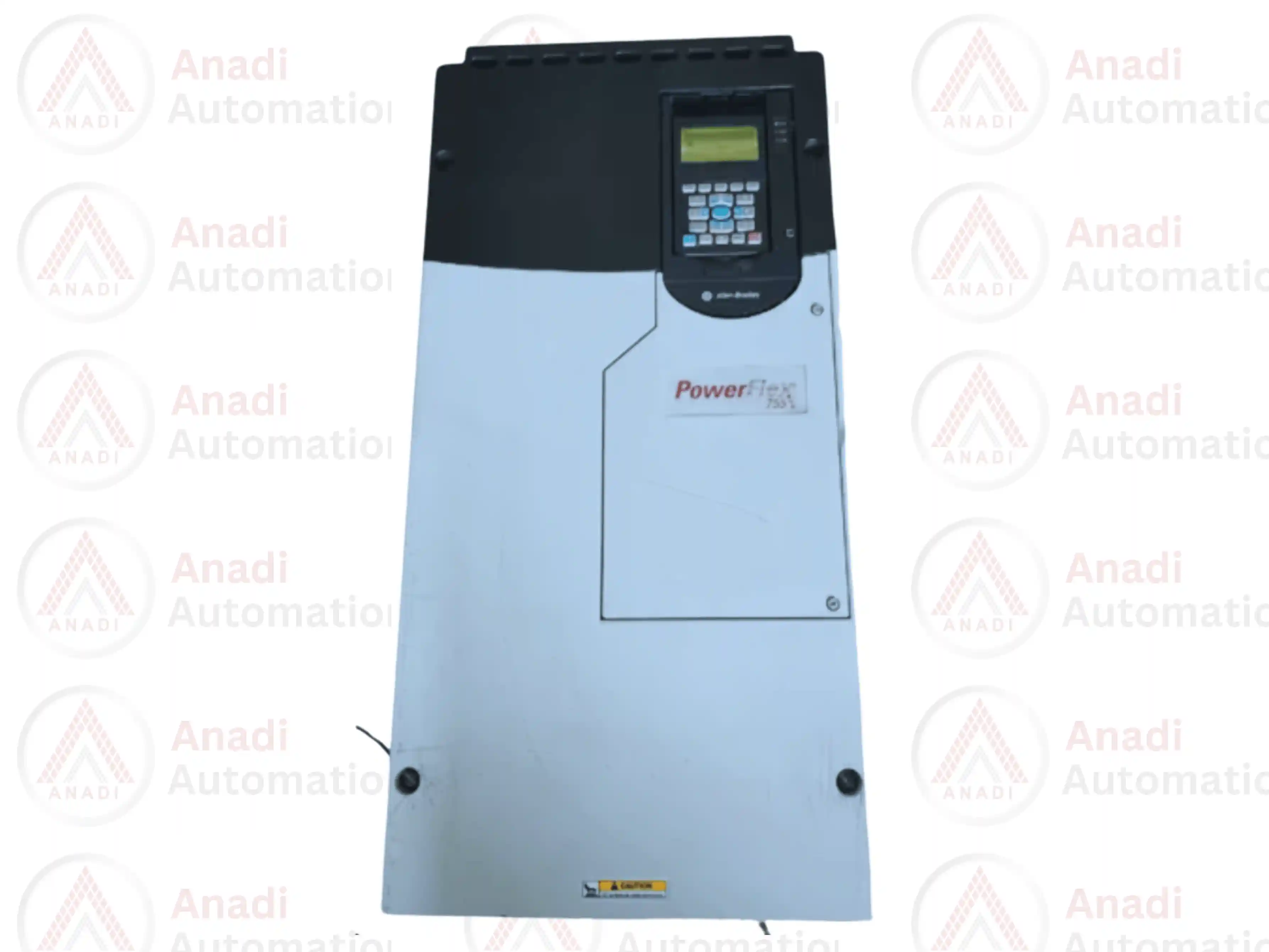

Allen-Bradley PowerFlex 755 Drive – Model 20G1ANC140JN0NNNNN

The Allen-Bradley PowerFlex 755, model number 20G1ANC140JN0NNNNN, manufactured by Rockwell Automation, is a high-performance industrial drive specifically designed to provide reliable and precise control for demanding applications in automation and motor control. As part of the PowerFlex 755 series, this drive excels in industrial environments where efficiency, flexibility, and safety are paramount.

This model operates with an AC input voltage of 400V and provides a DC bus voltage of 540V, making it ideal for heavy-duty applications requiring high power. It delivers an impressive output current of 265 A, supporting motor power ratings up to 250 kW (300 horsepower). This power capacity makes the drive well-suited for large motors used in heavy machinery, pumping systems, conveyor belts, and industrial compressors, where reliable torque control and variable-speed operation are critical.

The PowerFlex 755 features an AC Input with Precharge capability, which ensures smooth startup of the drive by gradually charging the DC bus, minimizing electrical stress on components and improving operational stability. Its design excludes DC terminals, simplifying installation and making it appropriate for setups where space and wiring complexity are concerns.

Built to be rugged and versatile, the drive is available in Frames 6 to 8, with alternative configurations spanning Frames 2 to 7. This enables precise matching of the drive to application requirements based on power and size constraints. The enclosure types are designed as IP20/IP00 with NEMA/UL Type Open, providing flexibility in installation environments, whether within enclosed control cabinets or open-panel industrial applications.

An integrated filtering system ensures compliance with electromagnetic compatibility (EMC) standards by reducing harmonics and electrical noise emissions. This contributes to improved power quality and system stability, particularly in sensitive industrial environments.

From a configuration perspective, the default common mode (CM) capacitor connection comes with a jumper installed, simplifying initial setup. However, the unit does not include an internal resistor or internal transistor, allowing system integrators the flexibility to customize braking and switching options depending on the system design.

The PowerFlex 755 20G1ANC140JN0NNNNN is designed for applications demanding robust performance, reliability, and precise motor control. It offers scalable power and advanced control capabilities while supporting safe operation with its advanced precharge functionality. This makes it an excellent choice for industries such as manufacturing, process control, material handling, and water treatment.

At Anadi Automation, we ensure that our customers have access to the highest quality automation solutions, with expert support for configuring and integrating Allen-Bradley PowerFlex drives into your automation system.
