Model Number 1769-HSC

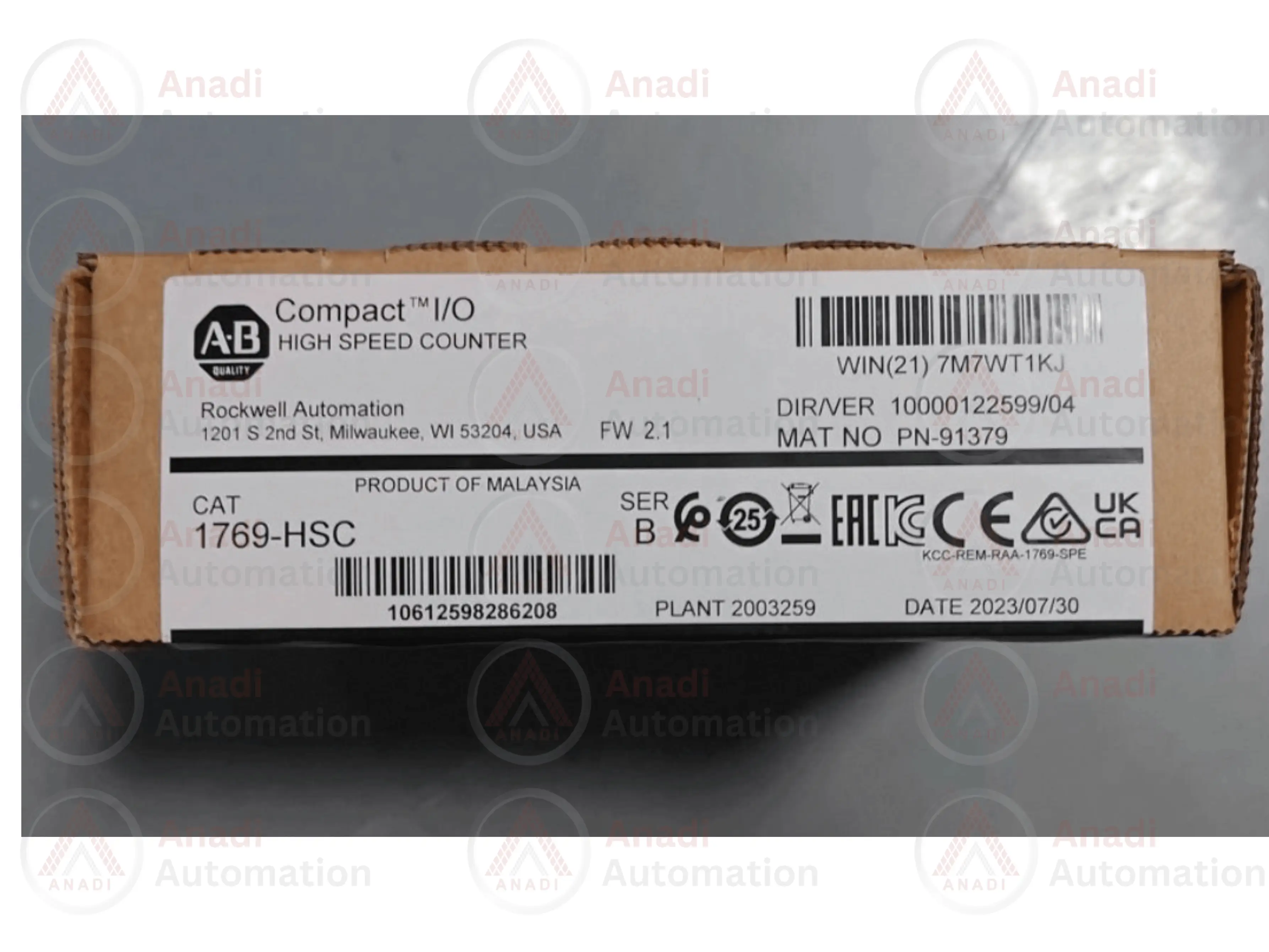

ALLEN BRADLEY 1769-HSC Counter Module

Name: 1769-HSC
Brand: ALLEN BRADLEY
Rating: 5 (5 reviews)

Check Availability

Call Us WhatsApp Email Get Quote

Choose Any Secure Payment options

Part number: 1769-HSC
Brand: ALLEN BRADLEY
Product Type: Counter Module
Warranty: A one-year warranty is provided by Anadi Automation. [Terms and Conditions apply]
Stock Location: Nashik, India
In Stock Quantity: Unit
Note: We are an independent supplier of ALLEN BRADLEY parts and are not an authorized distributor.

At Anadi Automation, we offer brand new Counter Module equipment sourced from trusted suppliers.

Why Choose Us:

1. High-quality genuine products
2. Free quotes available

All products are subject to availability. Please check stock with our team.

Save More with Quality Used Parts

Purchasing used parts can offer significant savings compared to buying brand-new equipment.

At Anadi Automation, all our used spare parts come with a comprehensive 12-month warranty provided by us, giving you complete peace of mind.

Note: All products, including refurbished and used items, come with a 12-month warranty provided directly by Anadi Automation. This warranty covers parts and labor, but does not include coverage by the original manufacturer.

Save More with Refurbished Parts

Opting for refurbished items can lead to significant savings.

At Anadi Automation, all our refurbished spare parts come with a comprehensive 12-month warranty.

Why Choose Anadi Automation:
1. 12-month warranty
2. Free quotes with fast response
3. Subject to availability. Please check stock with our team.

Note: All products, including refurbished and used items, come with a 12-month warranty provided directly by Anadi Automation. This warranty covers parts and labor, but not original manufacturer coverage.

1769-HSC Repair Services

If your ALLEN BRADLEY 1769-HSC module has been damaged, we can help.

We specialize in fast, reliable repairs to minimize downtime.

Contact us today for expert repair services.

Note: All repairs are handled by Anadi Automation with warranty provided by us. Not from the original manufacturer.

Discover Our Unique Services

Sourcing your part

Global supplier of quality automation and control components.

Service Exchange

Dispose of your old unit by exchanging it for a working part.

Repair

A comprehensive repair service for faulty equipment.

Alternative Names for 1769-HSC

1769HSC

1769 HSC

I769-HSC

17G9-HSC

Technical specifications for 1769-HSC

Allen-Bradley 1769-HSC - High-Speed Counter Module

Product Overview

The Allen-Bradley 1769-HSC is a High-Speed Counter (HSC) Module designed for use with CompactLogix and MicroLogix 1500 PLCs. It allows for precise high-speed counting and position tracking in automation systems, making it ideal for applications requiring fast and accurate pulse counting from encoders, sensors, or other pulse-generating devices.

Technical Specifications

✔ Manufacturer: Rockwell Automation (Allen-Bradley)
✔ Part Number: 1769-HSC
✔ Product Type: Counter Module
✔ Series: A and B
✔ Product Line: CompactLogix
✔ Module Type: High-Speed Counter (HSC) Module

Electrical & Power Specifications

✔ Maximum Bus Current Draw: 5 mA at 5V DC
✔ Backplane Current: 1.4 A at 24V DC
✔ Power Consumption: 33.6 W
✔ Power Dissipation: 7.5 W

Input & Output Specifications

✔ Number of Inputs: 2 quadrature (ABZ) differential inputs
✔ Number of Outputs: 16 total (4 physical, 12 virtual)
✔ On-State Current: 1 A per point, 4 A per module

Environmental & Physical Specifications

✔ Operating Temperature: 0°C to 60°C (32°F to 140°F)
✔ Enclosure Type: Open (Requires mounting in a control panel)
✔ Shipping Weight: 130 g (0.286 lb)
✔ Shipping Dimensions: 8 x 8 x 5 inches

Key Features & Benefits

✔ High-Speed Counting – Supports precise position tracking & pulse counting for fast-moving applications.
✔ Quadrature Encoder Support – Works with 2 ABZ differential inputs for directional counting.
✔ Compact & Space-Saving – Designed for CompactLogix and MicroLogix 1500 PLCs.
✔ Flexible Output Control – Provides 16 outputs (4 physical, 12 virtual) for automation tasks.
✔ Reliable Performance – Built for industrial-grade operation in harsh environments.

Common Applications

✔ Position & Speed Monitoring – Used in rotary encoders, linear encoders, & motor feedback.
✔ Material Handling & Packaging – Supports conveyors, sorting, and high-speed tracking.
✔ Industrial Automation – Ideal for production line control & high-speed pulse processing.
✔ Motion Control Systems – Works with servo drives & stepper motors for precise motion control.

FAQ

Que1: What is the main purpose of the 1769-HSC module? ▶

Ans: It functions as a high-speed counter, providing precise counting and position tracking for fast-moving signals from encoders, sensors, or similar devices.

Que2: Which PLCs are compatible with this counter module? ▶

Ans: The module is designed for use with CompactLogix and MicroLogix 1500 programmable logic controllers.

Que3: How many input and output channels are supported? ▶

Ans: It supports 2 quadrature differential inputs and 16 outputs, including 4 physical outputs and 12 virtual outputs.

Que4: What is the module’s maximum power consumption? ▶

Ans: Power consumption is rated at 33.6 W, with 1.4 A backplane current at 24V DC and 5 mA bus current at 5V DC.

Que5: Can this module be used in high-temperature environments? ▶

Ans: Yes, it supports an operating temperature range of 0°C to 60°C (32°F to 140°F), suitable for most industrial conditions.

Que6: Does the 1769-HSC require a special mounting enclosure? ▶

Ans: Yes, it has an open-type enclosure and must be mounted inside a control panel for proper protection.

Que7: What is the total current handling capability of the outputs? ▶

Ans: Each output can handle 1 A, with a total maximum of 4 A across the module.
