Technical specifications for 1756-IB32K

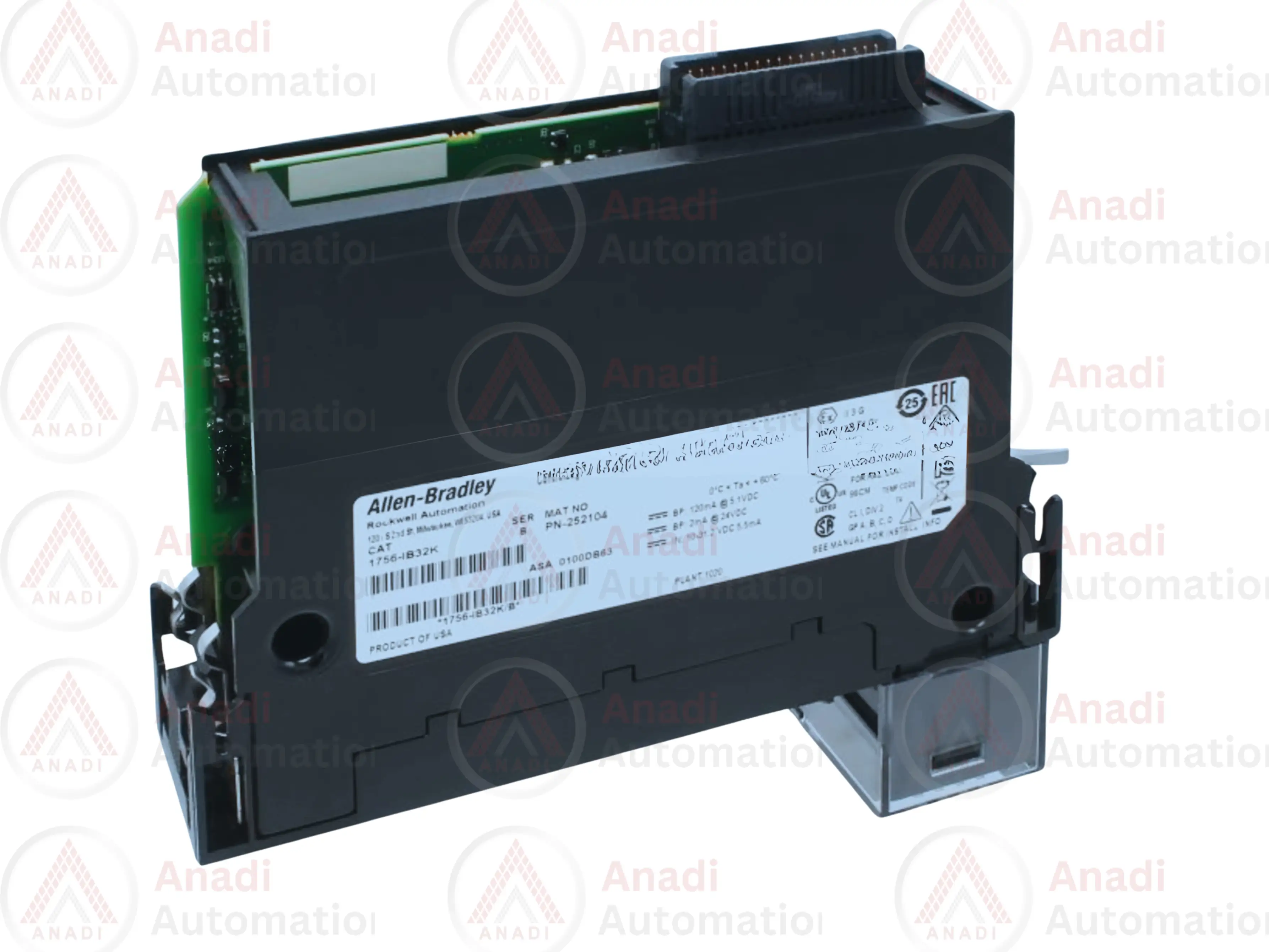

Allen-Bradley 1756-IB32K Digital DC Input Module
Overview
The 1756-IB32K is a 32-point digital DC input module from the ControlLogix series, designed to interface with DC input devices. It is ideal for applications requiring high-density input capabilities in industrial automation systems.
Key Features
- Manufacturer: Rockwell Automation
- Brand: Allen-Bradley
- Part Number: 1756-IB32K
- Series: ControlLogix
- Module Type: Digital DC Input Module
- Number of Inputs: 32 Inputs
Electrical Specifications
- Input Voltage: 12-24 Volts DC Sink
- Operating Voltage Range: 10-31.2 Volts DC
- Input Delay Time: 420 microseconds plus selected filter time
- Minimum Operating Current: 2 milliamperes
- Maximum Operating Current: 5.5 milliamperes
- Maximum Input Current (Off-State): 1.5 milliamperes
Power and Current Specifications
- Power Dissipation (Max): 6.2 Watts at 60°C (140°F)
- Backplane Current at 5 Volts: 120 milliamperes
- Backplane Current at 24 Volts: 2 milliamperes
Applications
The 1756-IB32K is suitable for high-density industrial applications, particularly where reliable digital DC inputs are required for monitoring and control in automation systems.
