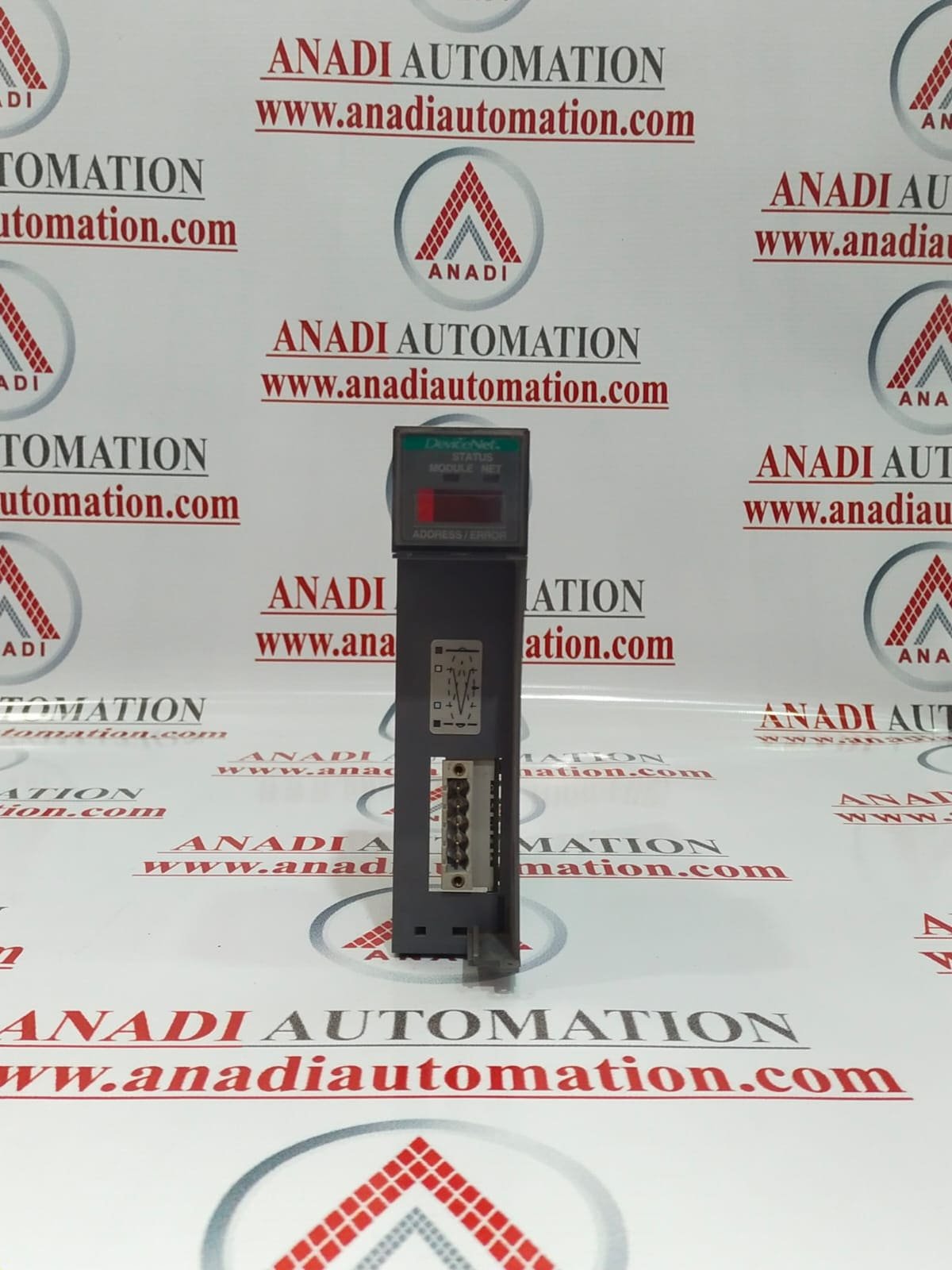

ALLEN BRADLEY 1747-SDN DeviceNet Scanner Module

Manufacturer:

• The DeviceNet Scanner Module is manufactured by Allen-Bradley, a well-known brand in the field of industrial automation and control systems.

Product Series:

• The module belongs to the SLC 500 product series, which is a versatile and widely used family of programmable controllers.

Part Number/Catalog No.:

• The specific part number or catalog number of the DeviceNet Scanner Module is 1747-SDN, uniquely identifying its configuration and features.

Module Type:

• The module serves as a DeviceNet Scanner, facilitating communication and data exchange on a DeviceNet network.

Module Width:

• The module occupies a single slot in the chassis, conserving space within the control system.

Mounting Options:

• The module can be conveniently mounted on a DIN Rail or a control panel, providing flexibility in installation.

Operating Temperature Range:

• The module is designed to operate within a temperature range of 0 to 55 degrees Celsius, suitable for typical industrial environments.

Storage Temperature Range:

• The module can be safely stored in a temperature range of -40 to 85 degrees Celsius.

Operating Shock Resistance:

• The module is resilient to operating shocks, withstanding a peak acceleration of 30 g with an 11(+1)ms pulse width.

Vibration Resistance:

• The module has been tested for vibration resistance, ensuring reliable performance in environments with vibrations ranging from 10 to 500Hz.

Indicators:

• The module features status indicators for Mod/Net and I/O, with red and green lights providing visual feedback on the module's operational status.

Linear Plug:

• The module supports a linear plug, identified by part number 1787-PLUG10R.

Data Transfer Speed:

• The module operates at a data transfer speed of 125 Kbps on the DeviceNet network.

Communication Port:

• The module is equipped with one DeviceNet communication port, facilitating connectivity in a DeviceNet network.

Pass-through Support:

• The module supports pass-through functionality, allowing data to pass through the module.

Compatibility with Controllers:

• The module is compatible with SLC 5/02 or later controllers, ensuring seamless integration with Allen-Bradley programmable controllers.

Scan I/O Capability:

• The module has the capability to scan I/O devices on the DeviceNet network.

Compatible Processors:

• The module is compatible with SLC 5/02, 5/03, 5/04, and 5/05 processors.

Backplane Current (5 Volts):

• The module requires 500 milliamps of backplane current at 5 Volts.

Backplane Current (24 Volts):

• The module requires 90 milliamps of backplane current at 24 Volts.

Weight:

• The module weighs 1 pound (0.45 kilograms), contributing to considerations for system weight and mounting.

Chassis Module Slots:

• The module occupies 30 chassis module slots.

Communication Protocols:

• In addition to DeviceNet, the module supports communication protocols such as Ethernet and RS-232.

Backup Memory Type:

• The module uses Flash memory for backup, providing non-volatile storage.

Unique Product Code (UPC):

• The module is uniquely identified by its UPC, which is 10612598164858.
